Shenzhen Richarmony Technology Co., Ltd.
Product Details
Place of Origin: China
Certification: ISO9001
Model Number: RHY043
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: US $ 9.56
Packaging Details: 15.6*11.8*5.3(cm)
Delivery Time: 31-35 work days
Payment Terms: T/T
Name: |
TFT LCD Modules |
LCD Size: |
4.3" TFT |
Outline Dimension: |
105.5 × 67.2 × 3 Mm |
Display Area: |
95.04 × 53.86 Mm |
Number Of Pixel: |
800 × 480 |
Brightness: |
300 Cd/m² |
Interface: |
RGB |
Viewing Angle: |
6 O'clock |
Name: |
TFT LCD Modules |
LCD Size: |
4.3" TFT |
Outline Dimension: |
105.5 × 67.2 × 3 Mm |
Display Area: |
95.04 × 53.86 Mm |
Number Of Pixel: |
800 × 480 |
Brightness: |
300 Cd/m² |
Interface: |
RGB |
Viewing Angle: |
6 O'clock |
| Specification | Value |
|---|---|
| LCD size | 4.3" TFT |
| Outline Dimension | 105.5 × 67.2 × 3 mm |
| Display area | 95.04 × 53.86 mm |
| Number of Pixel | 800 × 480 |
| Brightness | 300 cd/m² |
| Interface | RGB |
| Viewing Angle | 6 o'clock |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |

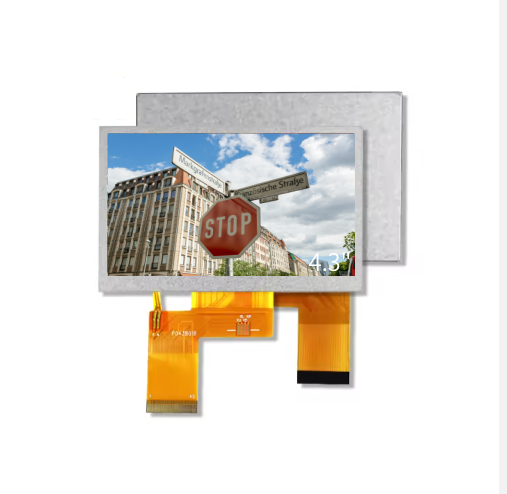

The 4.3-inch TFT LCD module delivers high-definition 800×480 resolution with wide viewing angles, specifically designed for space-constrained applications. This advanced display solution combines exceptional performance with compact dimensions, making it ideal for integration into various electronic systems.
Ideal for compact industrial control systems, portable intelligent terminals, embedded smart home appliances, and other small-form-factor electronic devices requiring high-quality display performance in limited space.
