High Resolution Round Display Module 300 Cd/M2 IPS Touchscreen IP65

Name: High Resolution Round Display Module 300 Cd/M2 IPS Touchscreen IP65
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY021
Price: 3.45 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY021

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 3.45

Packaging Details: 10.7*11*5.3(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  High Resolution Round Display Module, Round Display Module 300 Cd/M2, IPS Touchscreen IP65


Product Name:	Round Display Module	LCD Size:	2.1" TFT
Outline Dimension:	56.1859.712.26 Mm	Display Area:	53.28*53.28 Mm
Number Of Pixel:	480 × 480 Pixels	Brightness:	300 Cd/m²
Interface:	3SPI+18BIT_RGB	Viewing Angle:	IPS
Connector Pins:	40 PIN

Product Name:	Round Display Module
LCD Size:	2.1" TFT
Outline Dimension:	56.1859.712.26 Mm
Display Area:	53.28*53.28 Mm
Number Of Pixel:	480 × 480 Pixels
Brightness:	300 Cd/m²
Interface:	3SPI+18BIT_RGB
Viewing Angle:	IPS
Connector Pins:	40 PIN

Description

High Resolution Round Display Module 300 Cd/M2 IPS Touchscreen IP65

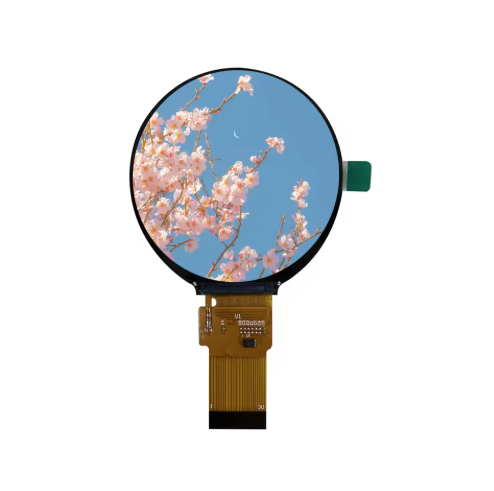

2.1" Round TFT LCD Display 480x480 IPS Touch Screen

This high-resolution round TFT LCD display combines precision adaptation for irregular screens with flexible capacitive touch interaction, making it ideal for smart watches, health monitors, and industrial dashboards.

Key Features

2.1-inch round TFT LCD with 480×480 resolution
Capacitive touch with ≤0.06s response time
300 cd/m² brightness with adjustable range (100-300nits)
85% color reproduction for vivid displays
Low power consumption (≤35mW operating power)
IP65 waterproof rating for durability
Ultra-thin design (2.8mm thickness, ~6g weight)

Technical Specifications

Specification	Details
LCD Size	2.1" TFT
Outline Dimension	56.18×59.71×2.26 mm
Display Area	53.28×53.28 mm
Resolution	480 × 480 pixels
Brightness	300 cd/m²
Interface	3SPI+18BIT_RGB
Viewing Angle	IPS
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Applications

Perfect for smart watches, micro health monitors, industrial micro dashboards, and other compact devices requiring circular displays with responsive touch capabilities.

Display Advantages

The 480×480 square resolution enables full-area non-stretched display on the round screen, ideal for circular interfaces in smart watches (time scales, sports data), health monitors (heart rate waves, blood oxygen values), and industrial dashboards (simulated pointer dials).

Touch Functionality

Single-point precise touch with ≤0.06s response delay
Full-screen touch coverage without dead angles
2.5D curved scratch-resistant glass surface
Sweat-resistant coating maintains sensitivity during exercise

Durability Features

IP65 waterproof rating for daily use protection
Wide temperature range (-10℃ to 60℃ operation)
Lightweight design (2.8mm thickness, ~6g weight)
