480*272 UART Screen Smart Capacitive Touchscreen Display 4.3 Inch

Name: 480*272 UART Screen Smart Capacitive Touchscreen Display 4.3 Inch
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY043
Price: 19.78 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY043

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 19.78

Packaging Details: 18.1*12.4*6.2(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              480*272 UART Screen, Smart Capacitive Touchscreen Display, Capacitive Touchscreen Display 4.3 Inch


Name:	UART Screen	LCD Size:	4.3" TFT
Outline Dimension:	130.1 ×73.81× 11.28 Mm	Display Area:	95.04×53.86 Mm
Number Of Pixel:	480 × 272 Pixels	Brightness:	300 Cd/m²
Interface:	TTL	Viewing Angle:	TN

Name:	UART Screen
LCD Size:	4.3" TFT
Outline Dimension:	130.1 ×73.81× 11.28 Mm
Display Area:	95.04×53.86 Mm
Number Of Pixel:	480 × 272 Pixels
Brightness:	300 Cd/m²
Interface:	TTL
Viewing Angle:	TN

Description

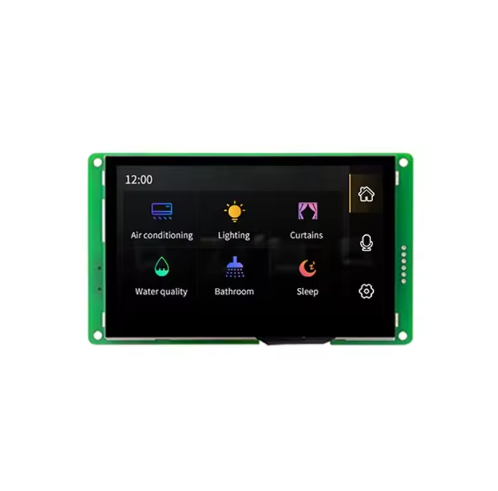

480*272 UART Screen Smart Capacitive Touchscreen Display 4.3 Inch

4.3 Inch UART Screen 480*272 With IPS LCD Capacitive Touchscreen Smart Display

This 4.3-inch UART smart display features a 480*272 resolution IPS LCD capacitive touchscreen, designed for "UART command-based interaction + IPS touch visualization". Ideal for smart home central control panels, industrial smart warning terminals, and portable device parameter setting screens.

Key Features

UART interface supports bidirectional serial port command transmission
Direct connectivity with smart home gateways and industrial PLC controllers
Fast command response with ≤0.1 second delay
No complex driver requirements
178° wide viewing angle with no color distortion
5-point capacitive touch with tablet-like sensitivity
Anti-fingerprint AG glass surface
Customizable UI interfaces
Automatic brightness adjustment (150-400nits)
Low power consumption (75mW)

Technical Specifications

LCD Size	4.3" TFT
Outline Dimension	130.1 * 73.81 * 11.28 mm
Display Area	95.04 * 53.86 mm
Resolution	480 * 272 pixels
Brightness	300 cd/m²
Interface	TTL
Viewing Angle	TN
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Applications

Smart Home: Control light brightness and air conditioning temperature through touch commands.
Industrial: Real-time display of fault codes and operation parameters with touch feedback for improved efficiency.

Enhanced Display Features

The IPS LCD provides sharp, clear parameter tables and control icons at 480*272 resolution. The capacitive touchscreen offers responsive control comparable to consumer tablets. The anti-fingerprint AG glass reduces touch residues and dust adhesion for long-term clarity.

Durability and Adaptability

Designed for wide temperature range operation (-15℃ to 65℃), suitable for various environments from northern winter homes to industrial workshops. The low power consumption makes it ideal for both long-term standby in smart home applications and battery-powered industrial terminals.

With UART command interaction, IPS wide viewing angle, and capacitive touch, this 4.3-inch smart display provides an efficient and convenient solution for both home and industrial smart display applications.
