IPS UART LCD Display Industrial Grade Smart LCD Display 480*272

Name: IPS UART LCD Display Industrial Grade Smart LCD Display 480*272
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY043
Price: 18.95 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY043

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 18.95

Packaging Details: 18.1*12.4*6.2(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      IPS UART LCD Display, Industrial Grade Smart LCD Display, Smart LCD Display 480*272


Name:	UART LCD Display	LCD Size:	4.3" TFT
Outline Dimension:	130.1 ×73.81× 11.28 Mm	Display Area:	95.04×53.86 Mm
Number Of Pixel:	480 × 272 Pixels	Brightness:	300 Cd/m²
Interface:	TTL	Viewing Angle:	TN
Storage Memory:	16MB	Application:	Industria

Name:	UART LCD Display
LCD Size:	4.3" TFT
Outline Dimension:	130.1 ×73.81× 11.28 Mm
Display Area:	95.04×53.86 Mm
Number Of Pixel:	480 × 272 Pixels
Brightness:	300 Cd/m²
Interface:	TTL
Viewing Angle:	TN
Storage Memory:	16MB
Application:	Industria

Description

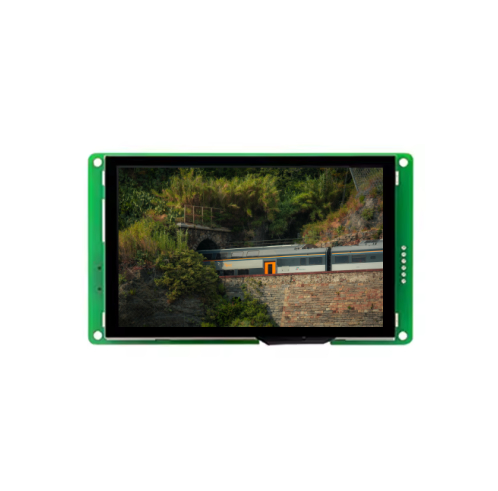

IPS UART LCD Display Industrial Grade Smart LCD Display 480*272

4.3-Inch 480*272 Resolution Industrial-Grade IPS UART Smart Display Module

This industrial-grade UART smart display module features a 4.3-inch IPS panel with 480*272 resolution, designed for stable operation in demanding industrial environments with efficient UART communication protocols.

Technical Specifications

LCD Size	4.3" TFT
Outline Dimension	130.1 * 73.81 * 11.28 mm
Display Area	95.04 * 53.86 mm
Resolution	480 * 272 pixels
Brightness	300 cd/m²
Interface	TTL
Viewing Angle	TN
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Key Features

Industrial-grade construction with cold-rolled steel housing and 2J impact resistance
IP54 ingress protection rating for dust and liquid resistance
Wide operating temperature range (-20°C to 70°C) for harsh environments
IPS technology with 178° viewing angle for consistent color from all perspectives
UART interface with adjustable baud rates (9600-115200 bps) for industrial communication
Low latency (≤0.08s) response time for real-time data display
EMC shielding against electromagnetic interference from industrial equipment
Customizable UI with alert indicators and status displays
Adjustable brightness (200-450 nits) for various lighting conditions
Low power consumption (80 mW) for energy-efficient operation

Industrial Applications

This display module is ideal for industrial equipment parameter monitoring systems, workshop intelligent warning terminals, heavy machinery operation interfaces, and other applications requiring reliable performance in challenging environments.

Product Images

Industrial Performance Guarantee

This display module has undergone rigorous environmental testing to ensure reliable operation in extreme temperatures, dusty conditions, and high-vibration industrial environments, making it a dependable solution for critical monitoring and control applications.
