Shenzhen Richarmony Technology Co., Ltd.
Product Details
Place of Origin: China
Brand Name: Richarmony
Certification: ISO9001
Model Number: RHY035
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: $9.37
Packaging Details: 23.81*16.39*5.68(cm)
Delivery Time: 31~35 days
Payment Terms: T/T
Size: |
2.1 Inch TFT |
Interface: |
RGB |
Resolution: |
480*480 |
Viewing Angle: |
ALL |
Brightness: |
1400 |
Operating Temperature: |
-20~70℃ |
Size: |
2.1 Inch TFT |
Interface: |
RGB |
Resolution: |
480*480 |
Viewing Angle: |
ALL |
Brightness: |
1400 |
Operating Temperature: |
-20~70℃ |
| Attribute | Value |
|---|---|
| LCD Size | 2.1" |
| Resolution | 480(RGB) × 480 dots |
| Outline Dimension | 57.17 × 62.21 × 3.51 mm |
| Active Area | 53.28(W) × 53.28(H) mm |
| Contrast Ratio | 900 |
| Viewing Angle | 80/80/80/80 (L/R/U/D) |
| Luminance | 1400 cd/m² |
| Interface | 3SPI+18RGB |
| Pin Configuration | 40 pin |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |

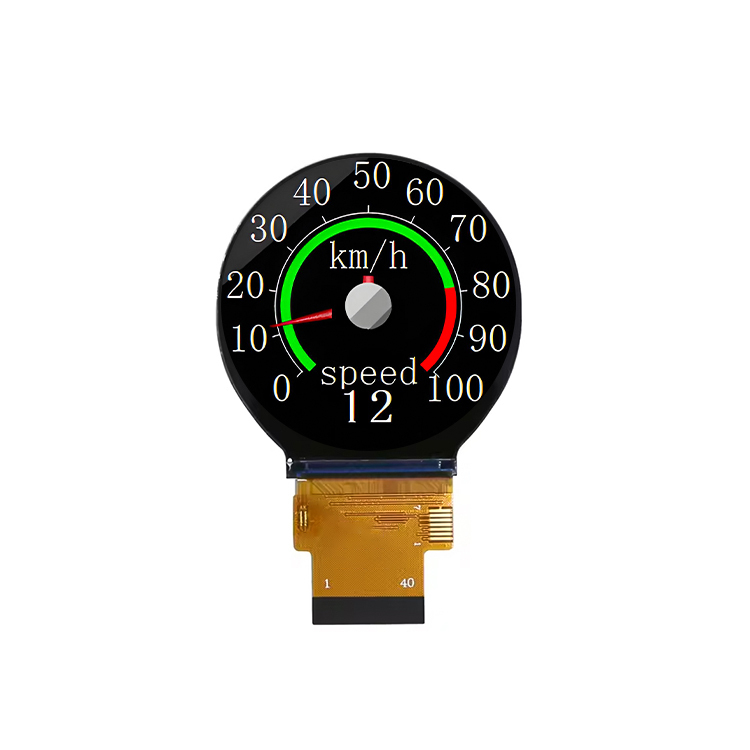

This high-brightness TFT LCD display delivers exceptional visibility in various lighting conditions, making it ideal for industrial applications. The RGB interface ensures accurate color reproduction, while the wide operating temperature range guarantees reliable performance in challenging environments.
