1000nits High Brightness LCD Screen 12.3 Inch TFT IPS Panel 1920x720 Resolution

Name: 1000nits High Brightness LCD Screen 12.3 Inch TFT IPS Panel 1920x720 Resolution
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY123
Price: 28.13 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY123

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 28.13

Packaging Details: 36.2*18.2*5.8(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      1000nits High Brightness LCD Screen, High Brightness LCD Screen 12.3 Inch, TFT IPS Panel 1920x720


Name:	High Brightness LCD Screen	LCD Size:	12.3"
Outline Dimension:	302.53 × 123.54 × 6.51	Display Area:	292.03 × 105.51
Number Of Pixel:	1920 × 720	Brightness:	1000 Cd/m²
Interface:	LVDS	Viewing Angle:	IPS
Connector Pins:	50 PIN	Application:	Industria

Name:	High Brightness LCD Screen
LCD Size:	12.3"
Outline Dimension:	302.53 × 123.54 × 6.51
Display Area:	292.03 × 105.51
Number Of Pixel:	1920 × 720
Brightness:	1000 Cd/m²
Interface:	LVDS
Viewing Angle:	IPS
Connector Pins:	50 PIN
Application:	Industria

Description

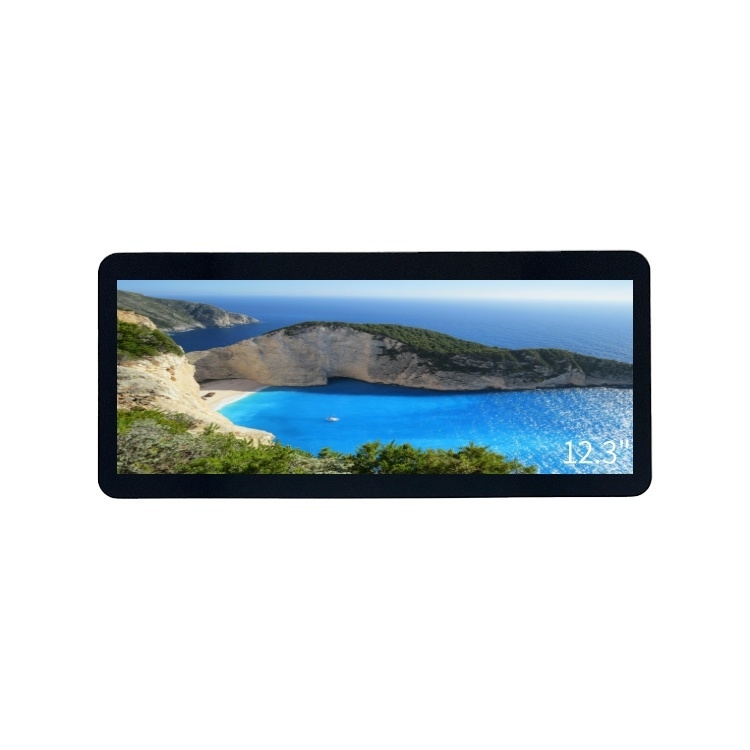

1000nits High Brightness LCD Screen 12.3 Inch TFT IPS Panel 1920x720 Resolution

12.3 Inch 1920×720 TFT LCD Display with 1000nits IPS Screen and LVDS Interface

This high-performance 12.3-inch TFT LCD display delivers exceptional visual clarity with Full HD resolution (1920×720 pixels) and 1000nits brightness. The advanced IPS technology ensures wide viewing angles and consistent color reproduction, making it ideal for demanding industrial and professional applications.

Technical Specifications

Display Size	12.3" TFT
Dimensions (mm)	302.53 × 123.54 × 6.51
Display Area (mm)	292.03 × 105.51
Resolution	1920 × 720 pixels
Brightness	1000 cd/m²
Interface	50 PIN LVDS
Viewing Angle	IPS (178°)
Operating Temperature	-30°C to 85°C
Storage Temperature	-40°C to 95°C

Key Features

High-brightness 1000nits IPS panel for excellent visibility in all lighting conditions
Full HD resolution (1920×720) for sharp, detailed images
Wide 178° viewing angles with consistent color reproduction
Reliable LVDS interface for stable data transmission
Low-power consumption design for energy efficiency
Robust construction resistant to vibrations and shocks
Wide operating temperature range (-30°C to 85°C)

Applications

This durable, high-performance display is ideal for in-vehicle infotainment systems, industrial control panels, digital signage, medical equipment, and other professional applications requiring reliable visual solutions in challenging environments.
