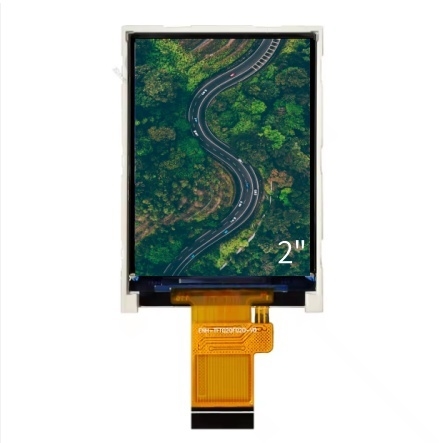

2 Inch TFT LCD Modules 240x320 Resolution IPS Displays 300nits With TTL Interface

Name: 2 Inch TFT LCD Modules 240x320 Resolution IPS Displays 300nits With TTL Interface
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY020
Price: 5.25 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY020

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 5.25

Packaging Details: 8.6*12.1*5.8(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      2 Inch TFT LCD Modules, TFT LCD Modules 240x320, IPS Displays 300nits


Name:	TFT LCD Modules	LCD Size:	2" TFT
Outline Dimension:	36.2 × 69.8 × 7.8 Mm	Display Area:	30.6 × 40.8 Mm
Number Of Pixel:	240 × 320	Brightness:	300 Cd/m²
Interface:	TTL	Viewing Angle:	IPS
Operating Temperature:	-20°C To 70°C	Storage Temperature:	-30°C To 80°C

Name:	TFT LCD Modules
LCD Size:	2" TFT
Outline Dimension:	36.2 × 69.8 × 7.8 Mm
Display Area:	30.6 × 40.8 Mm
Number Of Pixel:	240 × 320
Brightness:	300 Cd/m²
Interface:	TTL
Viewing Angle:	IPS
Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

Description

2 Inch TFT LCD Modules 240x320 Resolution IPS Displays 300nits With TTL Interface

2 Inch TFT LCD Module 240x320 Resolution IPS Display 300nits with TTL Interface

Specification	Value
LCD size	2" TFT
Outline Dimension	36.2 × 69.8 × 7.8 mm
Display area	30.6 × 40.8 mm
Number of Pixel	240 × 320
Brightness	300 cd/m²
Interface	TTL
Viewing Angle	IPS
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This 2-inch TFT LCD module, featuring 240x320 resolution, IPS display, 300nits brightness and TTL interface, centers on "HD adaptation for micro-screens + flexible integration via TTL interface", suitable for smart wearables (e.g., micro fitness bands, mini health monitors), industrial micro-control terminals, smart home micro-panels and other scenarios. The 240x320 resolution (4:3 aspect ratio) achieves 200PPI pixel density on the 2-inch micro-screen—step counts and heart rate data text on fitness bands are sharp; blood oxygen and body temperature scales on health monitors are accurate; device status icons on micro-control terminals are clearly distinguishable. The 4:3 aspect ratio fits the need of "focusing on core data on a single screen", allowing 5-7 key items to be displayed, avoiding information congestion on micro-screens, and meeting the interactive needs of micro-devices for "light finger touch, quick reading".​

IPS wide viewing angle and 300nits brightness double empower the module: no color distortion at 178° full angles, so data remains clear when lifting the hand to view from the side while wearing a micro-band; 300nits brightness is calibrated for strong light, with no reflection or whitening on the screen under outdoor sports or industrial workshop strong light, enabling information reading without blocking; brightness can be reduced to 50nits in dim environments to avoid glare at night, adapting to multi-light scenarios.​

The TTL interface is key for micro-device integration: it complies with general standards, with a transmission rate of 150Mbps, synchronizing wearable health data and industrial micro-terminal control commands in real time without delay; it can directly connect to micro-embedded chips (e.g., STM32L series, Nordic nRF52840) without adapter modules, saving internal space of micro-devices; it has basic anti-interference ability to resist wireless signals of wearables and electromagnetic interference of industrial micro-devices, ensuring stable transmission.​

Durability adapts to micro-scenarios: only 2.5mm thick and about 5g heavy, it has no bulk when embedded in bands or micro-terminals; supports a wide temperature range of -15℃ to 60℃, adapting to outdoor low temperatures and industrial high temperatures; the screen is covered with a 5H scratch-resistant film, resisting daily friction with no scratches after long-term use; low power consumption (operating power ≤30mW) extends battery life of wearables, meeting the low-power needs of micro-devices.​

In summary, with 240x320 HD, IPS wide viewing angle, 300nits brightness and convenient TTL integration, this 2-inch TFT LCD module adapts to micro-smart devices, providing a high-definition and low-power display solution for wearables and industrial micro-terminals.
