3 Inch MIPI Display 480x854 Resolution LCD IPS Screen Industrial

Name: 3 Inch MIPI Display 480x854 Resolution LCD IPS Screen Industrial
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY030
Price: 6.85 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY030

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 6.85

Packaging Details: 9.3*12.5*5.3(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              3 Inch MIPI Display, MIPI Display 480x854, LCD IPS Screen Industrial


Name:	MIPI Display	LCD Size:	3" TFT
Outline Dimension:	42.64 × 74.51 × 2.30 Mm	Display Area:	36.72 × 65.28 Mm
Number Of Pixel:	480 × 854	Brightness:	350 Cd/㎡
Interface:	MIPI_2LINE	Viewing Angle:	IPS

Name:	MIPI Display
LCD Size:	3" TFT
Outline Dimension:	42.64 × 74.51 × 2.30 Mm
Display Area:	36.72 × 65.28 Mm
Number Of Pixel:	480 × 854
Brightness:	350 Cd/㎡
Interface:	MIPI_2LINE
Viewing Angle:	IPS

Description

3 Inch MIPI Display 480x854 Resolution LCD IPS Screen Industrial

3 Inch MIPI TFT LCD Display 480x854 Resolution IPS Industrial Screen

Technical Specifications

LCD size	3" TFT
Outline Dimension	42.64 × 74.51 × 2.30 mm
Display area	36.72 × 65.28 mm
Number of Pixel	480 × 854
Brightness	350 cd/㎡
Interface	MIPI_2LINE
Viewing Angle	IPS
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

This 3-inch MIPI TFT LCD display, featuring 480x854 resolution and IPS industrial screen, centers on "industrial micro vertical screen adaptation + MIPI high-speed transmission", suitable for industrial micro control terminals, portable vertical testing instruments (e.g., water quality detectors), embedded industrial monitoring panels and other scenarios. The 480x854 resolution (16:9 vertical aspect ratio) achieves a high pixel density of 342PPI on the 3-inch ultra-small screen. In vertical display, it can fully present vertical curves of industrial testing data (e.g., water quality concentration change trends) and multi-level menu lists of micro terminals, with sharp text edges free of jaggedness and numerical scales accurate to two decimal places, meeting the industrial demand for "vertical screen focusing on vertical data and saving horizontal space".

IPS industrial-grade display enhances practicality: no color distortion at 178° full angles, so multiple people in industrial workshops have no visual deviation when viewing micro terminal data from different angles; it adopts industrial-grade liquid crystal material, supporting ultra-wide temperature operation from -30℃ to 80℃, with no black screen, flicker or color distortion during outdoor testing in northern winters or workshop use in southern summers; the screen is covered with 8H hardness scratch-resistant glass, which can resist industrial tool collisions and part friction, with no scratches after long-term use, and has an oil-resistant coating—after oil stains adhere in the workshop, it can be wiped directly with an industrial rag without affecting the display effect.

The MIPI interface is a core advantage of industrial transmission: as a dedicated high-speed interface for micro devices, it has a transmission rate of 1.5Gbps, more than 7 times that of traditional TTL interfaces, synchronizing industrial testing data and control commands in real time without delay or lag; the interface has only 20 pins, with a volume 50% smaller than that of LVDS interfaces, perfectly adapting to the compact internal structure of micro industrial devices; it has industrial-grade EMC anti-interference ability, which can resist strong electromagnetic radiation from workshop motors and frequency converters, complying with the IEC 61000-6-2 industrial anti-interference standard to ensure stable transmission in complex environments.

Portability and durability are deeply optimized: only 2.6mm thick and about 8g heavy, it has no obvious weight when embedded in handheld industrial detectors; low power consumption (operating power ≤45mW) adapts to the battery-powered needs of industrial portable devices, enabling continuous use for more than 8 hours on a single charge; it supports manual brightness adjustment from 100-500nits, increasing brightness in strong-light workshops to ensure visibility and reducing brightness in dim environments to avoid glare, adapting to multi-light industrial scenarios.

In summary, with 480x854 vertical HD, IPS wide-temperature durability and MIPI high-speed transmission, this 3-inch industrial screen balances the space needs of industrial micro devices and data transmission stability, providing an efficient vertical display solution for industrial micro terminals and portable testing equipment.

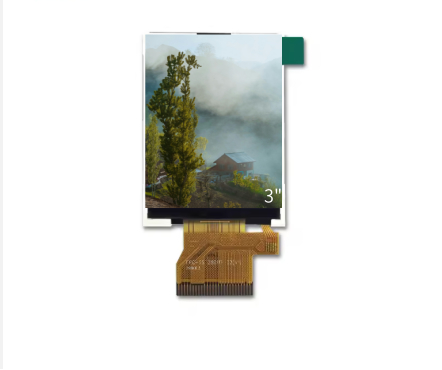

3 Inch MIPI Display 480x854 Resolution LCD IPS Screen Industrial 0

3 Inch MIPI Display 480x854 Resolution LCD IPS Screen Industrial 1
