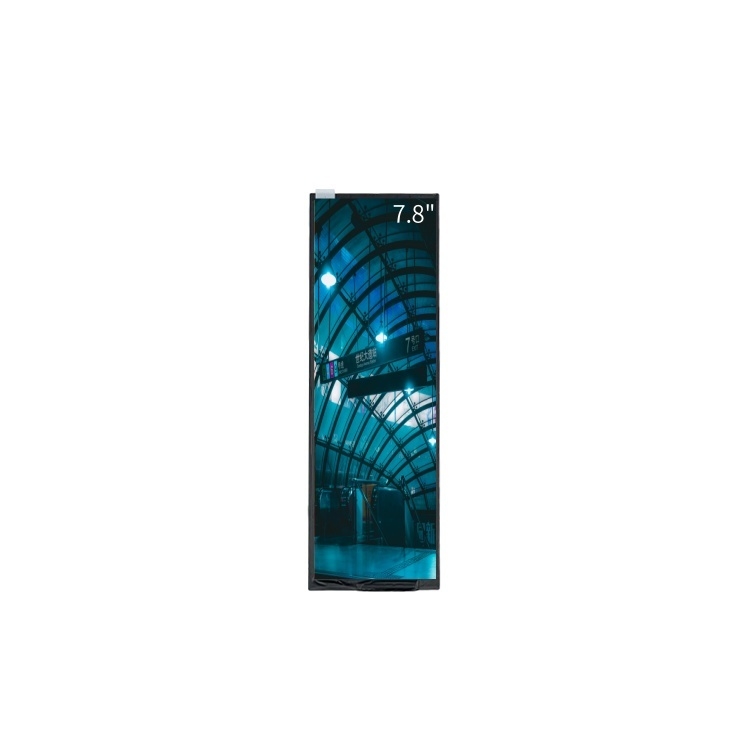

7.8 Inch Vehicle LCD Display IPS Touch Screen Display 400x1280 Resolution

Name: 7.8 Inch Vehicle LCD Display IPS Touch Screen Display 400x1280 Resolution
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY078
Price: 13.47 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY078

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 13.47

Packaging Details: 11.8*25.6*5.5(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          7.8 Inch Vehicle LCD Display, IPS Touch Screen Display, Touch Screen Display 400x1280


Name:	Vehicle LCD Display	LCD Size:	7.8"
Display Mode:	TFT	Outline Dimension:	67.80 × 205.78 × 4.75mm
Display Area:	59.40 × 190.08 Mm	Number Of Pixel:	400 × 1280
Brightness:	850cd/㎡	Interface:	40 PIN MIPI
Viewing Angle:	IPS	Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

Name:	Vehicle LCD Display
LCD Size:	7.8"
Display Mode:	TFT
Outline Dimension:	67.80 × 205.78 × 4.75mm
Display Area:	59.40 × 190.08 Mm
Number Of Pixel:	400 × 1280
Brightness:	850cd/㎡
Interface:	40 PIN MIPI
Viewing Angle:	IPS
Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

Description

7.8 Inch Vehicle LCD Display IPS Touch Screen Display 400x1280 Resolution

7.8 Inch Vehicle MIPI TFT LCD Display 400x1280 Resolution IPS With Touch Screen

Display Size	7.8" TFT
Dimensions	67.80 × 205.78 × 4.75mm
Display Area	59.40 × 190.08 mm
Resolution	400 × 1280 pixels
Brightness	850cd/㎡
Interface	40 PIN MIPI
Viewing Angle	IPS
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This 7.8-inch vehicle TFT LCD display, featuring 400x1280 resolution, IPS technology and MIPI interface, focuses on "adaptation to narrow in-vehicle spaces + IPS wide-view HD display", making it suitable for scenarios like in-vehicle central control secondary screens and rear-seat air conditioning control screens. The 400x1280 long-screen resolution (21:5 aspect ratio) fits the narrow installation areas in vehicles, enabling vertical split-screen display of 15-18 pieces of information such as navigation guidance, vehicle status and entertainment controls, avoiding horizontal space waste. The IPS technology ensures no color distortion when drivers and passengers view from a 178° angle, so rear-seat passengers don’t need to lean close to adjust the air conditioning.​

The MIPI interface provides reliable in-vehicle transmission: with a speed of 2Gbps, it synchronizes dynamic navigation routes and vehicle energy consumption data in real time without lag; its low-power design (operating power ≤90mW) reduces in-vehicle battery consumption; it has strong anti-electromagnetic interference ability to resist signal interference from in-vehicle radars and motors, complying with automotive EMC standards to ensure stable display during driving.​

Automotive-grade durability adapts to complex environments: it supports an ultra-wide temperature range of -40℃ to 85℃ to withstand low winter temperatures and summer exposure; IP6K4K dust and water resistance deals with air conditioning condensation and dust; the screen is covered with anti-fingerprint AG glass, reducing reflection interference during driving and improving driving safety.​

In summary, with its long-screen resolution, IPS wide viewing angle and stable MIPI transmission, this 7.8-inch vehicle display adapts to narrow in-vehicle spaces and multi-view needs, providing an efficient and reliable display solution for segmented in-vehicle scenarios.​

Key Features

Vehicle-grade durability with stable transmission technology
Robust temperature resistance for reliable operation in extreme conditions
Shock-resistant design for automotive environments
IPS technology ensures consistent color and clarity at wide angles

Applications

Ideal for vehicle central control secondary screens, instrument panel extended displays, and rear-seat entertainment systems.

7.8 Inch Vehicle LCD Display IPS Touch Screen Display 400x1280 Resolution 0

7.8 Inch Vehicle LCD Display IPS Touch Screen Display 400x1280 Resolution 1
