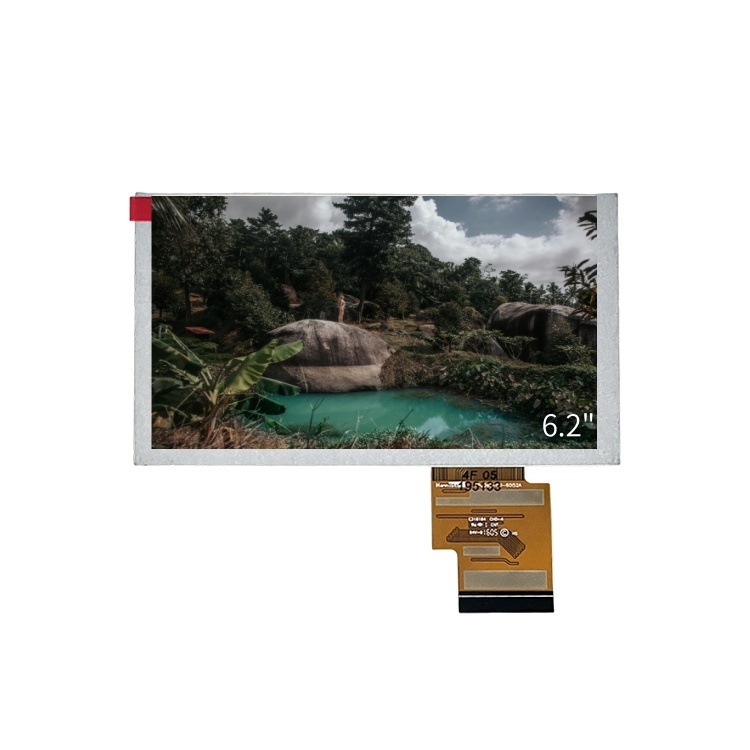

6.2 Inch TFT LCD Display Modules 800x480 Resolution TTL Displays 400nits

Name: 6.2 Inch TFT LCD Display Modules 800x480 Resolution TTL Displays 400nits
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY062
Price: 12.54 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY062

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 12.54

Packaging Details: 20.6*14.1*5.5(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      6.2 Inch TFT LCD Display Modules, TFT LCD Display Modules 800x480, TTL Displays 400nits


Name:	TFT LCD Display Modules	LCD Size:	6.2" TFT
Outline Dimension:	155.20 × 88.20 × 4.80 Mm	Display Area:	137.52 × 77.232 Mm
Number Of Pixel:	800 × 480	Brightness:	400 Cd/m²
Interface:	TTL	Viewing Angle:	LRUD 75/75/70/70
Operating Temperature:	-20°C To 70°C	Storage Temperature:	-30°C To 80°C

Name:	TFT LCD Display Modules
LCD Size:	6.2" TFT
Outline Dimension:	155.20 × 88.20 × 4.80 Mm
Display Area:	137.52 × 77.232 Mm
Number Of Pixel:	800 × 480
Brightness:	400 Cd/m²
Interface:	TTL
Viewing Angle:	LRUD 75/75/70/70
Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

Description

6.2 Inch TFT LCD Display Modules 800x480 Resolution TTL Displays 400nits

6.2 Inch TFT LCD Display Module 800x480 400nits

Display Size	6.2" TFT
Dimensions	155.20 × 88.20 × 4.80 mm
Active Area	137.52 × 77.232 mm
Resolution	800 × 480 pixels
Brightness	400 cd/m²
Interface	TTL
Viewing Angle	LRUD 75/75/70/70
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This 6.2-inch TFT LCD display module, featuring 800x480 resolution, 400nits brightness and TTL interface, centers on "high-brightness display for small-to-medium screens + convenient adaptation via TTL interface", suitable for industrial portable control terminals, outdoor detection instruments, home smart control panels and other scenarios. The 800x480 resolution (16:9 aspect ratio) delivers clear image quality on the 6.2-inch screen—equipment parameter text and operation icons on industrial terminals have sharp edges; test data charts and value scales on outdoor instruments are accurately distinguishable; home appliance control interfaces and environmental parameter displays on smart panels are intuitive and easy to understand. The 16:9 ratio fits the needs of "image-text combination + light interaction", allowing 10-13 core pieces of information to be displayed on a single screen, avoiding information congestion and meeting the "quick reading, simple operation" needs of small-to-medium screen devices.​

400nits high brightness is a core highlight: the brightness is calibrated for outdoor and strong-light scenarios. Under midday direct sunlight or strong light in industrial workshops, the screen has no reflection or whitening. When reading instrument data during outdoor work or checking terminal parameters during industrial operations, there is no need to block light for clear recognition; even in dim environments, the brightness can be flexibly adjusted, balancing display clarity and visual comfort, and avoiding visual fatigue caused by harsh light.​

The TTL interface provides convenient transmission assurance for the module: it complies with general industrial and consumer electronics standards, with a transmission rate of 200Mbps, which can synchronize industrial control commands, outdoor detection data and smart panel operation feedback in real time without lag; it can connect directly to most embedded motherboards (such as STM32 and Arduino series) without additional adapter modules, reducing hardware integration difficulty and cost; the interface has a certain anti-interference ability, which can resist slight electromagnetic interference in industrial scenarios, ensuring stable data transmission and adapting to complex environments of multiple scenarios.​

Durability and portability are deeply optimized: the module is only 3.8mm thick and weighs about 90g, so it does not add obvious burden when embedded in handheld terminals or control panels; it supports a wide temperature range of -15℃ to 60℃, adapting to outdoor low temperatures and industrial workshop high temperatures; the screen is covered with 6H scratch-resistant glass, which resists daily friction and slight collisions, with no obvious scratches after long-term use; it has low power consumption (operating power ≤80mW), adapting to the battery-powered needs of portable devices and extending single-use battery life.​

In summary, with 800x480 clear display, 400nits high brightness and convenient TTL interface adaptation, this 6.2-inch TFT LCD module balances the practicality of small-to-medium screens and compatibility with multiple scenarios, providing an efficient display solution for small-to-medium screen devices in industrial, outdoor and home scenarios.
