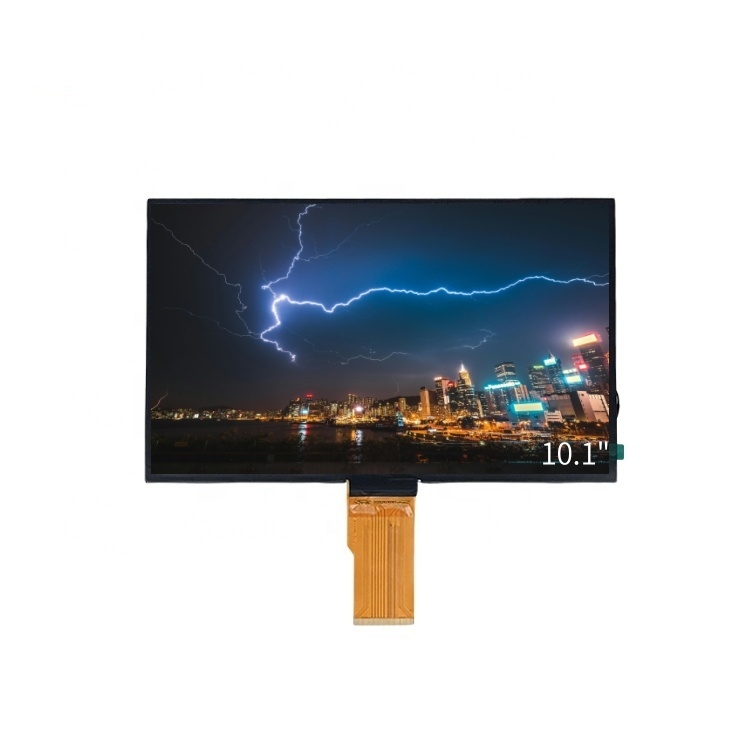

10.1 Inch IPS Display Module 1024x600 Resolution LVDS Display Module 60 PIN

Name: 10.1 Inch IPS Display Module 1024x600 Resolution LVDS Display Module 60 PIN
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY101
Price: 29.89 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY101

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 29.89

Packaging Details: 28.5*18.5*5.5(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              10.1 Inch IPS Display Module, IPS Display Module 1024x600, LVDS Display Module 60 PIN


Name:	IPS Display Module	Outline Dimension:	235×143×4.15 Mm
Display Area:	222.72×125.28 Mm	Number Of Pixel:	1024×600
Brightness:	450 Cd/㎡	Interface:	LVDS
Viewing Angle:	Free	Connector Pins:	60 PIN

Name:	IPS Display Module
Outline Dimension:	235×143×4.15 Mm
Display Area:	222.72×125.28 Mm
Number Of Pixel:	1024×600
Brightness:	450 Cd/㎡
Interface:	LVDS
Viewing Angle:	Free
Connector Pins:	60 PIN

Description

10.1 Inch IPS Display Module 1024x600 Resolution LVDS Display Module 60 PIN

10.1 Inch 1024×600 Display Module LCD Screen

LCD Size	10.1" TFT
Outline Dimension	235×143×4.15 mm
Display Area	222.72×125.28 mm
Resolution	1024×600 pixels
Brightness	450 cd/㎡
Interface	60 PIN LVDS
Viewing Angle	Free (Wide viewing angle)
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C

Product Overview

This 10.1-inch IPS TFT LCD display module, featuring 1024x600 resolution and 60 PIN LVDS interface, centers on "HD adaptation for mid-sized screens + stable transmission via 60 PIN LVDS", suitable for industrial portable control screens, in-vehicle rear-seat entertainment screens, smart home central control screens and other scenarios. The 1024x600 resolution (16:9 aspect ratio) delivers clear image quality on the 10.1-inch screen—equipment operation parameters and operation guide text in industrial scenarios are sharp; video images and navigation map details in in-vehicle scenarios are vivid; home appliance control interfaces and environmental data in smart home scenarios are intuitive and easy to understand. The 16:9 aspect ratio fits the need of "parallel display of multiple information", allowing 12-15 core contents to be displayed on a single screen, avoiding frequent page-turning and meeting the "efficient interaction, wide field of view" needs of mid-sized screen devices.

IPS wide viewing angle technology enhances multi-scenario practicality: no color distortion at 178° full angles, so multiple people have no visual difference when viewing parameters together during industrial control; passengers in the rear seat of the vehicle see consistent colors when watching entertainment content; family members have no viewing angle deviation when operating the central control screen in different positions in smart home scenarios. There is no need to limit use to the front, improving flexibility.

The 60 PIN LVDS interface is a core transmission advantage: compared with conventional interfaces, the 60 PIN design supports dual-channel data transmission with a speed of 1Gbps, synchronizing industrial control commands, in-vehicle audio-visual data and smart home operation feedback in real time without lag; its pin definition is compatible with industrial motherboards, in-vehicle main controls and smart home chips, no additional adapter board is needed, reducing integration costs; it has industrial-grade anti-interference ability, which can resist workshop motors and in-vehicle electromagnetic radiation, ensuring stable transmission and adapting to complex environments.

Durability and adaptability are optimized: only 4.8mm thick and about 220g heavy, it has no burden when embedded in handheld industrial terminals or in-vehicle brackets; it supports a wide temperature range of -10℃ to 65℃, adapting to high temperatures in industrial workshops and low temperatures in vehicles; the screen is covered with 7H scratch-resistant glass, resisting tool scratches and accidental collisions, with no damage after long-term use; it has low power consumption (operating power ≤120mW), extending the battery life of portable devices and meeting energy-saving needs.

In summary, with 1024x600 HD, IPS wide viewing angle and stable transmission via 60 PIN LVDS, this 10.1-inch display module balances the practicality of mid-sized screens and compatibility with multiple scenarios, providing an efficient display solution for industrial, in-vehicle and smart home devices.
