Shenzhen Richarmony Technology Co., Ltd.
Product Details
Place of Origin: China
Certification: ISO9001
Model Number: RHY040
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: US $ 8.24
Packaging Details: 12.5*12.9*5.3(cm)
Delivery Time: 31-35 work days
Payment Terms: T/T
Name: |

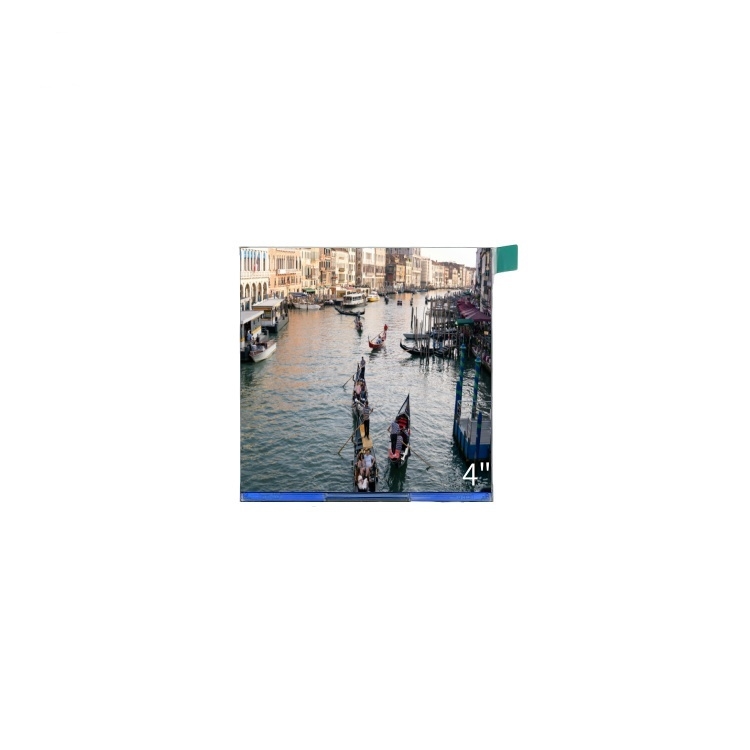

TTL Display |
LCD Size: |
4" TFT |
Outline Dimension: |
74.83 × 78.98 × 2.0 Mm |
Display Area: |
71.856 × 70.176 Mm |
Number Of Pixel: |
480 × 480 |
Brightness: |
300 Cd/m² |
Interface: |
TTL |
Viewing Angle: |
ALL |
Connector Pins: |
40 PIN |
Name: |
TTL Display |
LCD Size: |
4" TFT |
Outline Dimension: |
74.83 × 78.98 × 2.0 Mm |
Display Area: |
71.856 × 70.176 Mm |
Number Of Pixel: |
480 × 480 |
Brightness: |
300 Cd/m² |
Interface: |
TTL |
Viewing Angle: |
ALL |
Connector Pins: |
40 PIN |
| Display Type | 4" TFT |
|---|---|
| Brightness | 300 cd/m² |
| Interface | 40 PIN TTL |
| Viewing Angle | ALL |
| Display Size | 4 inch |
| Dimensions | 74.83 × 78.98 × 2.0 mm |
| Active Area | 71.856 × 70.176 mm |
| Resolution | 480 × 480 pixels |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
