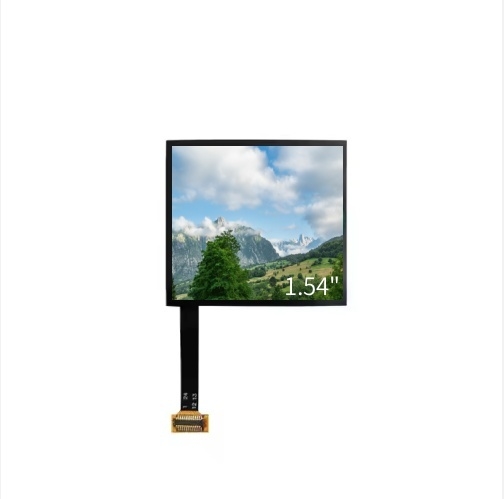

1.54 Inch Square LCD Display 320x320 Resolution Sunlight Readable Display 300nits

Name: 1.54 Inch Square LCD Display 320x320 Resolution Sunlight Readable Display 300nits
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY015
Price: 5.9 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY015

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 5.9

Packaging Details: 8.2*8.4*5.2(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          1.54 Inch Square LCD Display, Square LCD Display 320x320, Sunlight Readable Display 300nits


Name:	Square LCD Display	LCD Size:	1.54"
Display Mode:	TFT	Outline Dimension:	31.52 × 33.72 × 1.55 Mm
Display Area:	27.74 × 27.74 Mm	Number Of Pixel:	320 × 320
Brightness:	300 Cd/m²	Interface:	3SPI 16BIT RGB
Viewing Angle:	IPS	Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

Name:	Square LCD Display
LCD Size:	1.54"
Display Mode:	TFT
Outline Dimension:	31.52 × 33.72 × 1.55 Mm
Display Area:	27.74 × 27.74 Mm
Number Of Pixel:	320 × 320
Brightness:	300 Cd/m²
Interface:	3SPI 16BIT RGB
Viewing Angle:	IPS
Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

Description

1.54 Inch Square LCD Display 320x320 Resolution Sunlight Readable Display 300nits

1.54" IPS TFT LCD Display 320x320 Resolution 300nits Sunlight Readable

Technical Specifications

Display Size	1.54" TFT
Dimensions	31.52 × 33.72 × 1.55 mm
Display Area	27.74 × 27.74 mm
Resolution	320 × 320 pixels
Brightness	300 cd/m²
Interface	3SPI 16BIT RGB
Viewing Angle	IPS
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This 1.54-inch IPS TFT LCD display, featuring 320x320 resolution and 300nits sunlight readability, centers on "small-screen HD portability + clear visibility in sunlight", suitable for smart wearables (e.g., sports watches), outdoor portable detectors (e.g., oximeters), mini industrial controllers and other scenarios. The 320x320 resolution enables 1:1 square display on the 1.54-inch small screen, with a pixel density of 280PPI—it can clearly show heart rate curves and step counts on sports watches, present accurate test data scales on outdoor detectors, and ensure sharp edges of operation icons on mini controllers. The 1:1 ratio fits the small-screen need of "focusing on core information on a single screen", allowing 8-10 key items (e.g., time, heart rate, battery on watches; blood oxygen, blood pressure data on detectors) to be displayed without information congestion, meeting the "quick reading, no visual burden" demand of portable scenarios.​

300nits sunlight readability is a core advantage: the brightness is specially calibrated for outdoor scenarios, with no reflection or whitening under midday strong light. When checking watch data during sports or reading detector results during outdoor work, there’s no need to block sunlight for clear recognition; combined with IPS wide-view technology, there’s no color distortion at 178° full angles. When wearing a watch, lifting the hand to view from the side still shows accurate data colors, avoiding reading errors caused by angle deviations and improving outdoor usability.​

The display is optimized for portability and durability: only 2.8mm thick and about 8g heavy, it can be embedded in watch dials or detector bodies without obvious bulk, not affecting device wearing or holding experience; it supports a wide temperature range of -20℃ to 60℃, adapting to low outdoor temperatures in northern winters and high temperatures in southern summers, with no black screen or flicker at low temperatures and stable display at high temperatures; the screen surface is covered with 6H scratch-resistant glass, resisting daily friction and slight collisions, so it’s not easy to scratch during sports or outdoor work, maintaining clear display for a long time.​

In addition, the display has low power consumption (operating power ≤35mW), adapting to the battery-powered needs of wearables and portable detectors to extend single-use battery life; it supports low-blue-light mode, reducing eye fatigue when checking data on watches for a long time, balancing practicality and comfort.​

In summary, with 320x320 HD, 300nits sunlight readability and IPS wide viewing angle, this 1.54-inch IPS TFT LCD display balances small-screen portability and outdoor practicality, providing a clear and durable display solution for portable devices such as wearables and outdoor detectors.​

Key Features

Compact 1.54" IPS TFT display with 320×320 resolution
High brightness 300 nits sunlight-readable panel
Wide operating temperature range (-20°C to 70°C)
IPS technology for wide viewing angles
3SPI 16BIT RGB interface
Ideal for smart wearables, portable devices, and micro-scale control systems
