Shenzhen Richarmony Technology Co., Ltd.
Product Details
Place of Origin: China
Certification: ISO9001
Model Number: RHY190
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: US $ 36.58
Packaging Details: 45.2*37.5*6.3(cm)
Delivery Time: 31-35 work days
Payment Terms: T/T
Name: |
TFT LCD Screen Panel |
LCD Size: |
19" TFT |
Outline Dimension: |
396 × 324 × 10.9 Mm |
Display Area: |
376.32 × 301.06 Mm |
Number Of Pixel: |
1280 × 1024 Pixels |
Brightness: |
250 Cd/m² |
Viewing Angle: |
6 O'clock |
Operating Temperature: |
0°C To 50°C |
Storage Temperature: |
-20°C To 60°C |
Display Mode: |
TFT |
Name: |
TFT LCD Screen Panel |
LCD Size: |
19" TFT |
Outline Dimension: |
396 × 324 × 10.9 Mm |
Display Area: |
376.32 × 301.06 Mm |
Number Of Pixel: |
1280 × 1024 Pixels |
Brightness: |
250 Cd/m² |
Viewing Angle: |
6 O'clock |
Operating Temperature: |
0°C To 50°C |
Storage Temperature: |
-20°C To 60°C |
Display Mode: |
TFT |
| Display Size | 19" TFT |
|---|---|
| Dimensions | 396 × 324 × 10.9 mm |
| Display Area | 376.32 × 301.06 mm |
| Resolution | 1280 × 1024 pixels |
| Brightness | 250 cd/m² |
| Interface | 30 PIN LVDS |
| Viewing Angle | 6 O'clock |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |

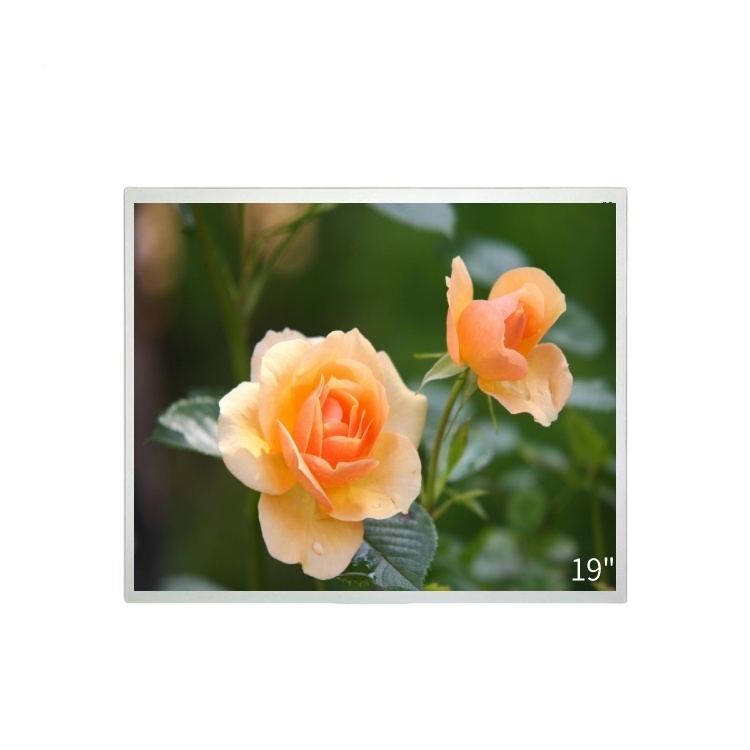

This 19-inch industrial TFT LCD display, meticulously engineered with a 1280x1024 resolution, 250nits brightness, and LVDS interface, is a versatile solution tailored for industrial applications. Boasting a robust construction, it excels in adapting to the demanding requirements of industrial large-size monitoring scenarios.
The high-definition 1280x1024 resolution ensures that every detail is rendered with precision, providing a clear and stable display experience even in the most dynamic industrial environments. Complemented by a 250nits brightness level, the screen offers optimal visibility under various lighting conditions, from well-lit control rooms to dimly-lit manufacturing floors.
Equipped with an LVDS interface, the display enables anti-interference transmission, guaranteeing reliable data transfer and minimizing signal degradation. This feature is crucial in industrial settings where electromagnetic interference is prevalent. Moreover, the display is designed to withstand wide temperature ranges, ensuring durability and consistent performance in extreme hot or cold environments.
Installation and integration are hassle-free, thanks to its user-friendly design. Whether it's for workshop large monitoring screens, equipment operation platform main screens, or industrial data visualization terminals, this display seamlessly fits into any industrial setup. It serves as a "large-size, high-reliability, and long-life" display solution, meeting the rigorous demands of the industrial control field and enhancing overall operational efficiency.
