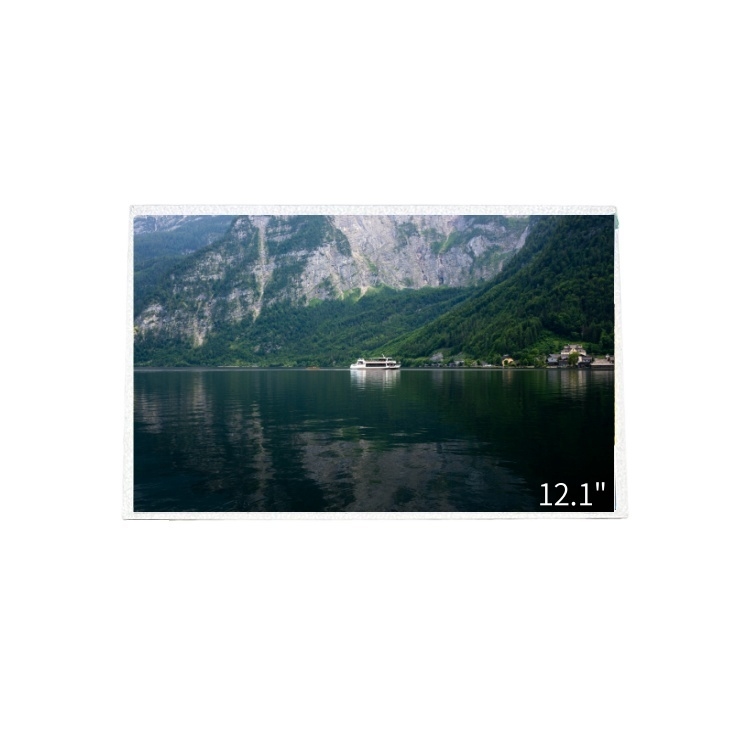

12.1 Inch IPS Display Panel 1280x800 HD LCD Display 500nits LVDS Industrial

Name: 12.1 Inch IPS Display Panel 1280x800 HD LCD Display 500nits LVDS Industrial
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY121
Price: 22.15 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY121

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 22.15

Packaging Details: 32.8*23.1*5.7(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              12.1 Inch IPS Display Panel, IPS Display Panel 1280x800, HD LCD Display 500nits


Name:	IPS Display Panel	LCD Size:	12.1" TFT
Outline Dimension:	277.7 × 180.6 × 6.1mm	Display Area:	261.12 × 163.20 Mm
Number Of Pixel:	1280 × 800	Brightness:	500cd/㎡
Interface:	40 PIN LVDS	Viewing Angle:	IPS

Name:	IPS Display Panel
LCD Size:	12.1" TFT
Outline Dimension:	277.7 × 180.6 × 6.1mm
Display Area:	261.12 × 163.20 Mm
Number Of Pixel:	1280 × 800
Brightness:	500cd/㎡
Interface:	40 PIN LVDS
Viewing Angle:	IPS

Description

12.1 Inch IPS Display Panel 1280x800 HD LCD Display 500nits LVDS Industrial

12.1" IPS TFT LCD Display HD 1280×800 500nits LVDS Interface for Industrial

Display Size	12.1" TFT
Dimensions	277.7 × 180.6 × 6.1mm
Display Area	261.12 × 163.20 mm
Number of Pixels	1280 × 800
Brightness	500cd/㎡
Interface	40 PIN LVDS
Viewing Angle	IPS
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This 12.1-inch industrial-grade IPS TFT LCD display delivers high-definition 1280×800 resolution with exceptional 500nits brightness, making it clearly visible even in intense industrial lighting conditions. Featuring an LVDS interface and wide viewing angle capabilities, it ensures reliable performance for collaborative work environments.

12.1 Inch IPS Display Panel 1280x800 HD LCD Display 500nits LVDS Industrial 0

12.1 Inch IPS Display Panel 1280x800 HD LCD Display 500nits LVDS Industrial 1

Key Features

Industrial-grade durability for challenging environments
IPS technology for wide viewing angles
High brightness (500nits) for clear visibility
Stable LVDS interface for reliable signal transmission
Wide operating temperature range (-20°C to 70°C)

Applications

Ideal for industrial production line monitoring, construction machinery control panels, industrial testing terminals, and other demanding applications where reliable display performance is critical for operational efficiency.
