11.6 Inch TFT HD Screen 30 PIN EDP LCD Screen 220nits Industrial

Name: 11.6 Inch TFT HD Screen 30 PIN EDP LCD Screen 220nits Industrial
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY116
Price: 19.85 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY116

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 19.85

Packaging Details: 31.4*20.8*5.3(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      11.6 Inch TFT HD Screen, 30 PIN EDP LCD Screen, EDP LCD Screen 220nits


Name:	TFT HD Screen	LCD Size:	11.6" TFT
Outline Dimension:	263.4 × 157.3 × 2.55	Display Area:	256.32 × 144.18 Mm
Number Of Pixel:	1920 × 1080	Brightness:	220 Cd/㎡
Interface:	30 PIN EDP	Viewing Angle:	IPS
Brand:	Richarmony	Application:	Industrial

Name:	TFT HD Screen
LCD Size:	11.6" TFT
Outline Dimension:	263.4 × 157.3 × 2.55
Display Area:	256.32 × 144.18 Mm
Number Of Pixel:	1920 × 1080
Brightness:	220 Cd/㎡
Interface:	30 PIN EDP
Viewing Angle:	IPS
Brand:	Richarmony
Application:	Industrial

Description

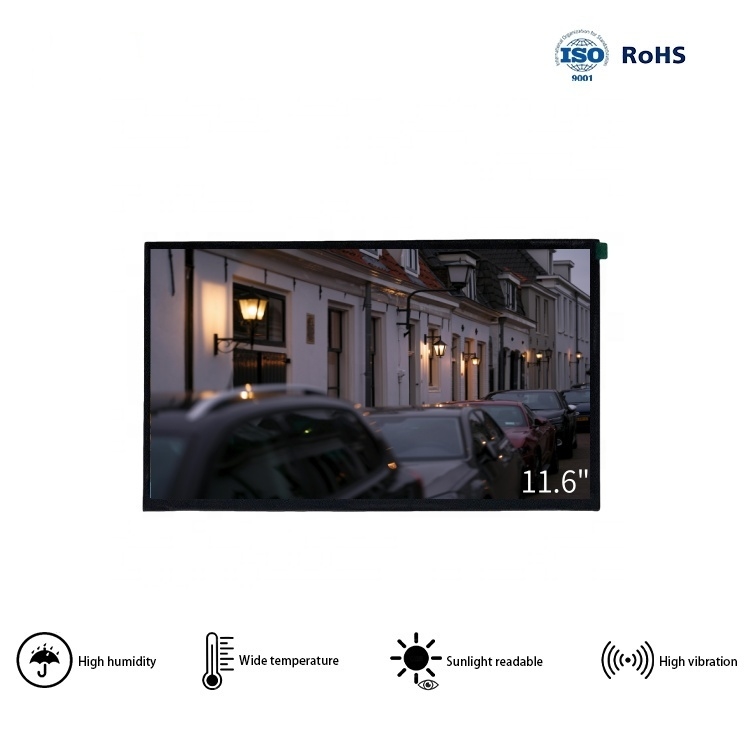

11.6 Inch TFT HD Screen 30 PIN EDP LCD Screen 220nits Industrial

11.6 Inch 1920×1080 Resolution 220nits FT LCD Display Module with 30 PIN EDP

Technical Specifications

Display Size	11.6" TFT
Dimensions	263.4 × 157.3 × 2.55 mm
Display Area	256.32 × 144.18 mm
Resolution	1920 × 1080 pixels
Brightness	220 cd/㎡
Interface	30 PIN EDP
Viewing Angle	IPS
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This high-performance 11.6-inch TFT-LCD module features Full HD resolution (1920×1080 pixels), 220 nits brightness, and a 30-pin eDP interface. Engineered for superior visual performance and reliable operation, it offers excellent luminance adaptability in various lighting conditions. The compact form factor and robust construction make it ideal for integration into mobile computing devices, semi-outdoor applications, and educational terminal systems.

Key Features

Full HD 1920×1080 resolution for crisp, detailed images
220 nits brightness for clear visibility in various lighting
30-pin eDP interface for reliable signal transmission
IPS technology for wide viewing angles
Compact and lightweight design (2.55mm thickness)
Wide operating temperature range (-20°C to 70°C)
Ideal for industrial, educational, and mobile applications
