10.25 Inch HD TFT LCD Display 1920x720 LVDS Panels Industrial

Name: 10.25 Inch HD TFT LCD Display 1920x720 LVDS Panels Industrial
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY102
Price: 20.84 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY102

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 20.84

Packaging Details: 31.6*16*6(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              10.25 Inch HD TFT LCD Display, HD TFT LCD Display 1920x720, LVDS Panels Industrial


Name:	HD TFT LCD Display	LCD Size:	10.25" TFT
Outline Dimension:	265.2 × 109.9 × 9.6 Mm	Display Area:	243.648 × 91.368 Mm
Number Of Pixel:	1920 × 720 Pixels	Brightness:	600 Cd/m²
Interface:	LVDS Double Lane	Viewing Angle:	IPS Technology

Name:	HD TFT LCD Display
LCD Size:	10.25" TFT
Outline Dimension:	265.2 × 109.9 × 9.6 Mm
Display Area:	243.648 × 91.368 Mm
Number Of Pixel:	1920 × 720 Pixels
Brightness:	600 Cd/m²
Interface:	LVDS Double Lane
Viewing Angle:	IPS Technology

Description

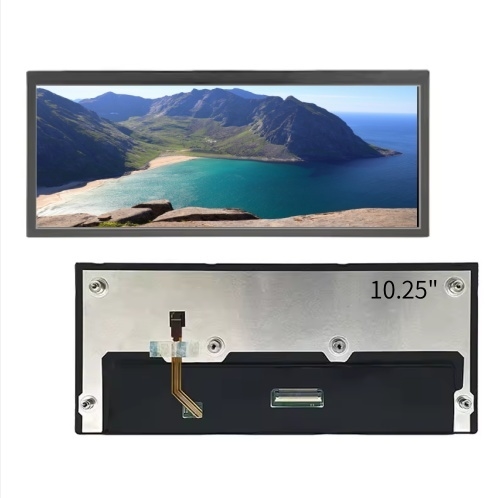

10.25 Inch HD TFT LCD Display 1920x720 LVDS Panels Industrial

10.25 Inch HD IPS LCD Display Module 1920x720 LVDS Interface

Technical Specifications

LCD Size	10.25" TFT
Outline Dimension	265.2 × 109.9 × 9.6 mm
Display Area	243.648 × 91.368 mm
Resolution	1920 × 720 pixels
Brightness	600 cd/m²
Interface	LVDS double lane
Viewing Angle	IPS technology
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This high-performance 10.25-inch HD IPS LCD module delivers exceptional visual clarity with its 1920×720 resolution and advanced Low-Voltage Differential Signaling (LVDS) interface. Engineered for demanding applications, it combines superior display quality with robust reliability.

Key Features

High-definition IPS panel with wide viewing angles
High-speed LVDS interface for reliable data transmission
Optimized power consumption with excellent anti-interference
Durable construction for extended operation in varied environments
Seamless integration with medium to large-sized devices

Applications

Ideal for smart automotive central control systems, industrial monitoring platforms, and commercial display solutions requiring high-definition visualization and multi-angle viewing capabilities.

10.25 Inch HD TFT LCD Display 1920x720 LVDS Panels Industrial 0

10.25 Inch HD TFT LCD Display 1920x720 LVDS Panels Industrial 1
