6.86 Inch MIPI Display 480x1280 Capacitive Touch Screen Panels

Name: 6.86 Inch MIPI Display 480x1280 Capacitive Touch Screen Panels
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY068
Price: 19.78 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY068

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 19.78

Packaging Details: 11.7*23.2*5.5(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              6.86 Inch MIPI Display, MIPI Display 480x1280, 480x1280 Capacitive Touch Screen Panels


Name:	MIPI Display	LCD Size:	6.86" TFT
Outline Dimension:	66.80 × 181.20 × 4.75 Mm	Display Area:	60.22 × 160.89 Mm
Number Of Pixel:	480 × 1280 Pixels	Brightness:	900 Cd/m²
Interface:	MIPI	Viewing Angle:	All Directions

Name:	MIPI Display
LCD Size:	6.86" TFT
Outline Dimension:	66.80 × 181.20 × 4.75 Mm
Display Area:	60.22 × 160.89 Mm
Number Of Pixel:	480 × 1280 Pixels
Brightness:	900 Cd/m²
Interface:	MIPI
Viewing Angle:	All Directions

Description

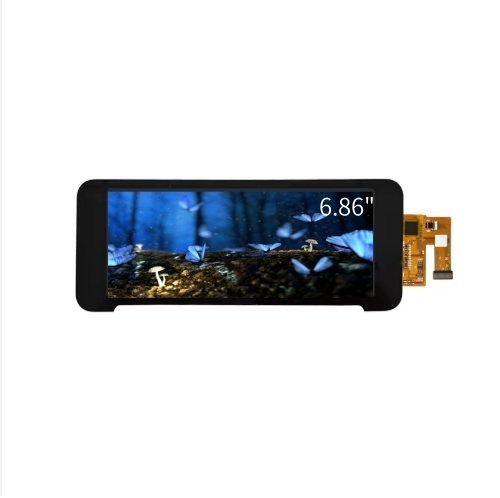

6.86 Inch MIPI Display 480x1280 Capacitive Touch Screen Panels

6.86" TFT LCD MIPI Display 480x1280 Interface Capacitive Touch

Technical Specifications

LCD Size	6.86" TFT
Outline Dimension	66.80 × 181.20 × 4.75 mm
Display Area	60.22 × 160.89 mm
Resolution	480 × 1280 pixels
Brightness	900 cd/m²
Interface	MIPI
Viewing Angle	All Directions
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Key Features

High-definition visualization for elongated display formats
Integrated capacitive touch panel for seamless interaction
MIPI interface enables high-speed data transfer
Robust construction for diverse application scenarios
Simplified system integration

Product Description

This 6.86-inch TFT LCD display combines high resolution (480×1280) with an integrated capacitive touch panel and MIPI interface, creating an efficient solution for applications requiring extended display surfaces and interactive capabilities. The display's high brightness (900 cd/m²) and wide operating temperature range (-20°C to 70°C) make it suitable for demanding environments. Ideal for automotive central control panoramic displays, commercial smart kiosks, and industrial control terminals, this display offers an economical yet high-performance solution for specialized visualization needs.

6.86 Inch MIPI Display 480x1280 Capacitive Touch Screen Panels 0

6.86 Inch MIPI Display 480x1280 Capacitive Touch Screen Panels 1

Typical Applications

Automotive central control panoramic displays
Commercial smart kiosk interfaces
Industrial elongated control terminals
Specialized visualization systems
