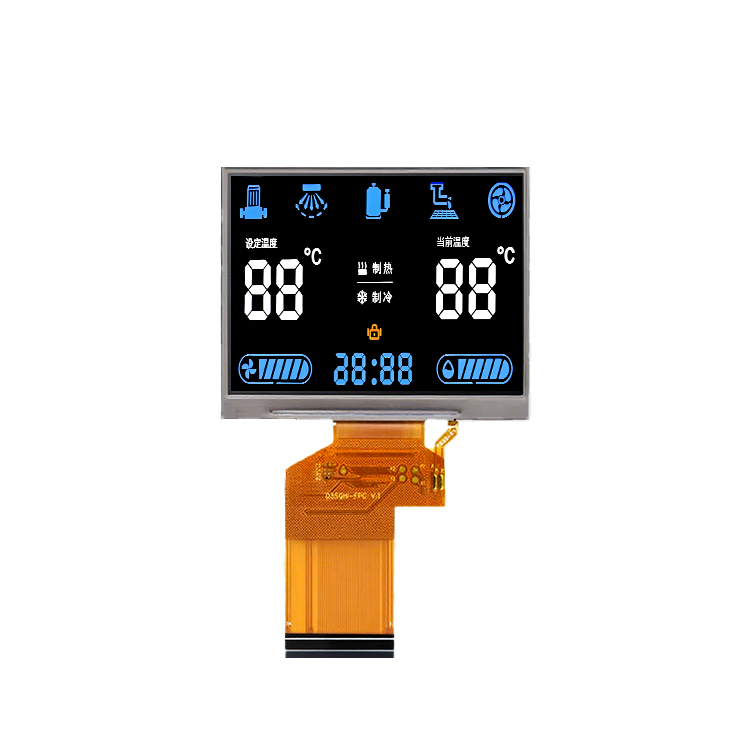

Shenzhen Richarmony Technology Co., Ltd.
Product Details
Place of Origin: China
Brand Name: Richarmony
Certification: ISO9001
Model Number: RHY035
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: $15.31
Packaging Details: 23.81*16.39*5.68(cm)
Delivery Time: 31~35 days
Payment Terms: T/T
Size: |
3.5 Inch TFT |
Interface: |
RGB |
Resolution: |
640*480 |
Viewing Angle: |
ALL |
Brightness: |
800 |
Operating Temperature: |
-20~70℃ |
Size: |
3.5 Inch TFT |
Interface: |
RGB |
Resolution: |
640*480 |
Viewing Angle: |
ALL |
Brightness: |
800 |
Operating Temperature: |
-20~70℃ |
| Parameter | Value | Unit |
|---|---|---|
| LCD Size | 3.5" | |
| Resolution | 640(RGB) × 480 | dots |
| Outline Dimension | 76.84 × 63.84 × 3.26 | mm |
| Active Area | 70.08(W) × 52.56(H) | mm |
| Contrast Ratio | 800 | |
| Viewing Angle | 85/85/85/85 | L/R/U/D |
| Luminance | 800 | cd/m² |
| Interface | TTL & RGB 24bit | |
| Pin | 54 | pin |
| Operating Temperature | -20 to +70 | °C |
| Storage Temperature | -30 to +80 | °C |
