Shenzhen Richarmony Technology Co., Ltd.
Product Details
Place of Origin: China
Certification: ISO9001
Model Number: RHY050
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: US $ 14.95
Packaging Details: 17.8*12.5*5.3(cm)
Delivery Time: 31-35 work days
Payment Terms: T/T

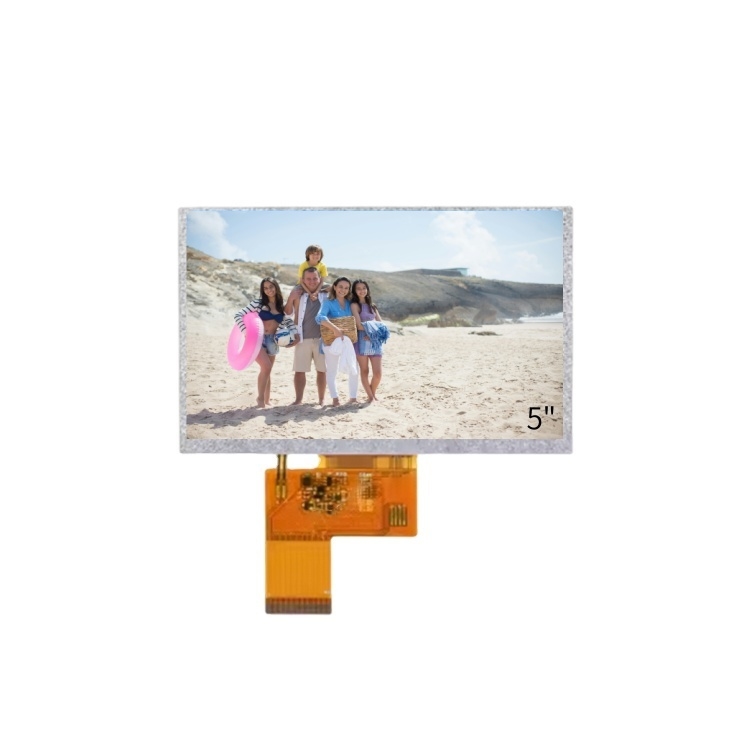

LCD Size: |
5" TFT |
Outline Dimension: |
120.8*75.95*3.8 Mm |
Display Area: |
108.00*64.80 Mm |
Number Of Pixel: |
800*480 |
Brightness: |
500 Cd/m² |
Interface: |
40 PIN TTL |
Viewing Angle: |
12 O'clock |
LCD Size: |
5" TFT |
Outline Dimension: |
120.8*75.95*3.8 Mm |
Display Area: |
108.00*64.80 Mm |
Number Of Pixel: |
800*480 |
Brightness: |
500 Cd/m² |
Interface: |
40 PIN TTL |
Viewing Angle: |
12 O'clock |
| Specification | Value |
|---|---|
| LCD size | 5" TFT |
| Outline Dimension | 120.8*75.95*3.8 mm |
| Display area | 108.00*64.80 mm |
| Number of Pixel | 800*480 |
| Brightness | 500 cd/m² |
| Interface | 40 PIN TTL |
| Viewing Angle | 12 o'clock |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
