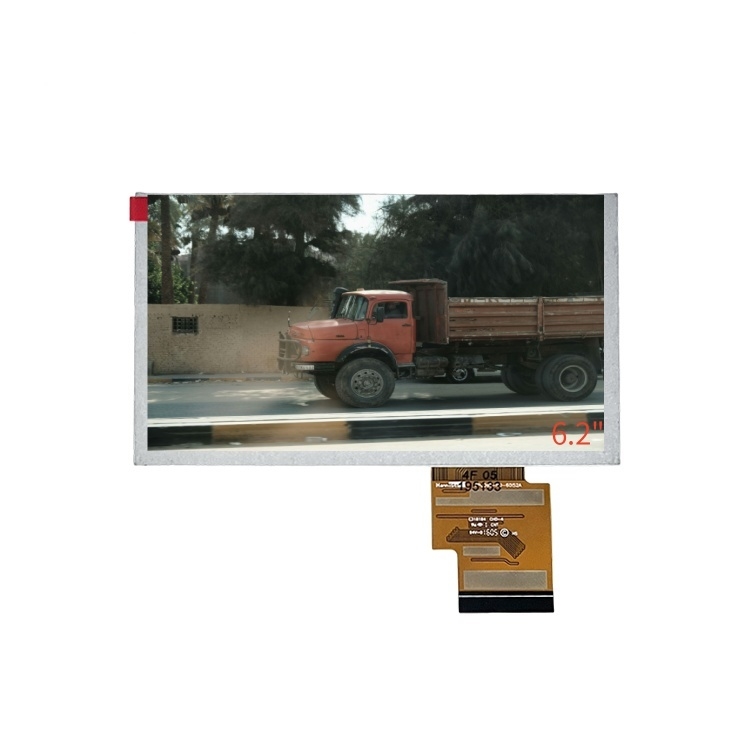

800x480 Resolution TFT LCD Display 400nits TTL Display 6.2 Inch

Name: 800x480 Resolution TFT LCD Display 400nits TTL Display 6.2 Inch
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY062
Price: 13.54 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY062

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 13.54

Packaging Details: 20.6*14.1*5.5(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  800x480 TFT LCD Display, TFT LCD Display 400nits, TTL Display 6.2 Inch


LCD Size:	6.2" TFT	Outline Dimension:	155.20×88.20×4.80 Mm
Display Area:	137.52×77.232 Mm	Number Of Pixel:	800×480
Brightness:	400 Cd/m²	Interface:	TTL
Viewing Angle:	LRUD75/75/70/70	Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

LCD Size:	6.2" TFT
Outline Dimension:	155.20×88.20×4.80 Mm
Display Area:	137.52×77.232 Mm
Number Of Pixel:	800×480
Brightness:	400 Cd/m²
Interface:	TTL
Viewing Angle:	LRUD75/75/70/70
Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

Description

800x480 Resolution TFT LCD Display 400nits TTL Display 6.2 Inch

6.2 Inch TFT LCD Display 800x480 Resolution 400nits

Technical Specifications

LCD Size	6.2" TFT
Outline Dimension	155.20×88.20×4.80 mm
Display Area	137.52×77.232 mm
Resolution	800×480 pixels
Brightness	400 cd/m²
Interface	TTL
Viewing Angle	LRUD75/75/70/70
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This 6.2-inch TTL TFT LCD display, featuring 800x480 resolution, 400nits brightness and a touch screen, centers on "high-brightness touch for small-to-medium screens + convenient integration via TTL interface", suitable for industrial portable testing terminals, outdoor handheld monitors, smart home control panels and other scenarios. The 800x480 resolution (16:9 aspect ratio) delivers clear image quality on the 6.2-inch screen—equipment parameter text and fault code marks in industrial testing have sharp edges; temperature-humidity curves and pollutant concentration scales on outdoor monitors are accurate; home appliance control icons and energy consumption data on smart panels are intuitive and easy to understand. The 16:9 aspect ratio fits the needs of "light interaction + information focus", allowing 10-12 core contents to be displayed on a single screen, avoiding information congestion during operation and meeting the core demand of "one-hand operation, quick reading" for portable devices.

400nits high brightness and touch function double empower the display: calibrated for strong-light scenarios, there is no reflection or whitening on the screen under midday outdoor or industrial workshop strong light, enabling outdoor workers to read monitoring data without blocking light; it supports single-point capacitive touch with a response delay of ≤0.06 seconds, allowing light touches to adjust industrial equipment parameters and switch smart panel functions smoothly; the touch screen surface is covered with an anti-fingerprint coating, reducing industrial oil stains and residual finger marks, which can be kept clean with daily wiping, and touch sensitivity remains unchanged for a long time.

The TTL interface provides assurance for integration: complying with general industrial and consumer electronics standards, it has a transmission rate of 200Mbps, synchronizing touch commands and display content in real time without lag; it can be directly connected to most embedded motherboards (such as STM32 and Arduino series) without additional adapter modules, reducing hardware integration costs; the interface has basic anti-interference ability, which can resist slight electromagnetic interference in industrial scenarios, ensuring stable data transmission.

Durability and portability are optimized: only 3.8mm thick and about 90g heavy, it has no obvious burden when embedded in handheld devices; supports a wide temperature range of -15℃ to 65℃, adapting to outdoor low temperatures and industrial high temperatures; 6H scratch-resistant glass resists friction and collision, with no scratches after long-term use; low power consumption (operating power ≤80mW) adapts to battery power supply of portable devices, extending single-use battery life.

In summary, with 800x480 clear display, 400nits high brightness, TTL adaptation and precise touch control, this 6.2-inch display balances small-to-medium screen practicality and multi-scenario compatibility, providing an efficient touch display solution for industrial, outdoor and home devices.
