9 Inch IPS TFT LCD Display 1024x600 Resolution LVDS Interface Display 500nits

Name: 9 Inch IPS TFT LCD Display 1024x600 Resolution LVDS Interface Display 500nits
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY090
Price: 21.56 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY090

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 21.56

Packaging Details: 27.1*17.7*5.6(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      9 Inch IPS TFT LCD Display, IPS TFT LCD Display 1024x600, LVDS Interface Display 500nits


LCD Size:	9" TFT	Outline Dimension:	211.11×126.5×5.7 Mm
Display Area:	196.608×114.15 Mm	Number Of Pixel:	1024×600
Brightness:	500 Cd/m²	Connector Pins:	40 PIN
Interface:	LVDS	Viewing Angle:	IPS Full Angle
Operating Temperature:	-20°C To 70°C	Storage Temperature:	-30°C To 80°C

LCD Size:	9" TFT
Outline Dimension:	211.11×126.5×5.7 Mm
Display Area:	196.608×114.15 Mm
Number Of Pixel:	1024×600
Brightness:	500 Cd/m²
Connector Pins:	40 PIN
Interface:	LVDS
Viewing Angle:	IPS Full Angle
Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

Description

9 Inch IPS TFT LCD Display 1024x600 Resolution LVDS Interface Display 500nits

9 Inch IPS TFT LCD Display Module 1024x600 Resolution 500nits With LVDS

Technical Specifications

LCD size	9" TFT
Outline Dimension	211.11×126.5×5.7 mm
Display area	196.608×114.15 mm
Number of Pixel	1024×600
Brightness	500 cd/m²
Interface	40 PIN LVDS
Viewing Angle	IPS Full Angle
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This 9-inch IPS TFT LCD display module, featuring 1024x600 resolution, 500nits brightness and LVDS interface, centers on "HD high-brightness for mid-sized screens + stable transmission via LVDS", suitable for industrial monitoring terminals, commercial self-service inquiry screens, in-vehicle central control secondary screens and other scenarios. The 1024x600 resolution (16:9 aspect ratio) delivers clear image quality on the 9-inch screen—equipment operation images and parameter data text in industrial monitoring are sharp; product details and service guide graphics on commercial inquiry screens are vivid; navigation maps and audio-visual content details in in-vehicle scenarios are intuitive. The 16:9 aspect ratio fits the need of "parallel display of multiple information", allowing 12-14 core contents to be displayed on a single screen, avoiding frequent sliding and page-turning, and meeting the "efficient information access, comfortable view" needs of mid-sized screen devices.

500nits high brightness is a core highlight: calibrated for strong light scenarios, there is no reflection or whitening on the screen under midday outdoor or industrial workshop strong light. When viewing information on commercial inquiry screens outdoors or reading equipment data in industrial monitoring, there is no need to block light for clear recognition; brightness can be reduced to 100nits in dim environments, balancing display clarity and visual comfort, avoiding glare from strong light, and adapting to use in multiple light conditions. Combined with IPS wide viewing angle technology, there is no color distortion at 178° full angles—multiple people have no visual difference when viewing monitoring images together in industrial scenarios, and customers see consistent colors when browsing inquiry content from the side in commercial scenarios, improving usage flexibility.

The LVDS interface ensures stable transmission: with a speed of 850Mbps, it synchronizes industrial monitoring data, commercial inquiry information and in-vehicle navigation content in real time without lag; the interface complies with general industrial and consumer electronics standards, and can be directly connected to industrial motherboards, commercial main control chips and in-vehicle device processors without additional adapter modules, reducing hardware integration difficulty and cost; it has industrial-grade anti-interference ability, which can resist workshop motors and in-vehicle electromagnetic radiation, ensuring stable data transmission and adapting to complex environments.

Durability and adaptability are optimized: the module is only 4.5mm thick and weighs about 180g, with no burden when embedded in handheld terminals or equipment panels; it supports a wide temperature range of -15℃ to 65℃, adapting to high temperatures in industrial workshops and low temperatures in vehicles; the screen is covered with 7H scratch-resistant glass, resisting tool scratches and accidental collisions, with no damage after long-term use; it has low power consumption (operating power ≤110mW), extending the battery life of portable devices and meeting energy-saving needs.

In summary, with 1024x600 HD, 500nits high brightness, IPS wide viewing angle and stable LVDS transmission, this 9-inch display module balances the practicality of mid-sized screens and compatibility with multiple scenarios, providing an efficient display solution for industrial, commercial and in-vehicle devices.

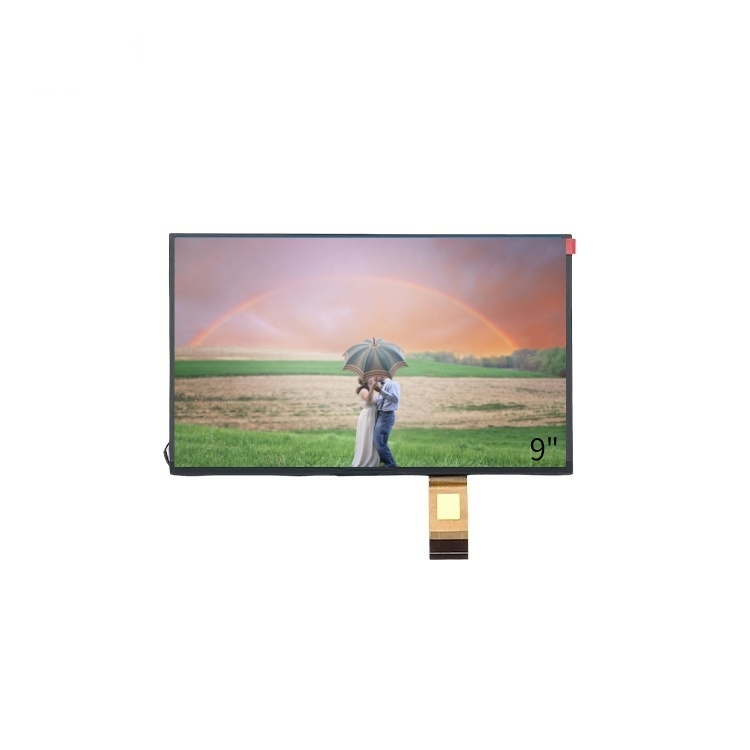

9 Inch IPS TFT LCD Display 1024x600 Resolution LVDS Interface Display 500nits 0

9 Inch IPS TFT LCD Display 1024x600 Resolution LVDS Interface Display 500nits 1
