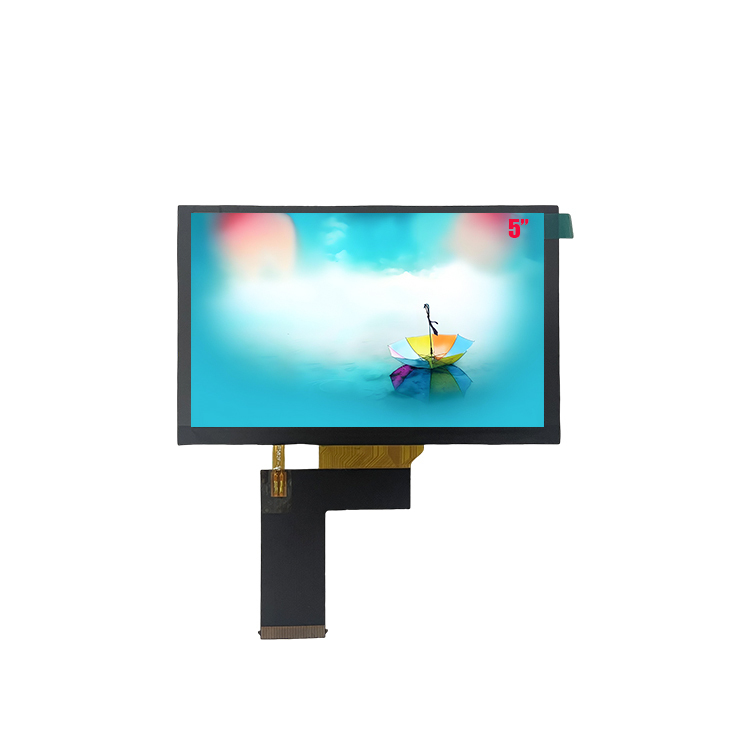

Shenzhen Richarmony Technology Co., Ltd.
Product Details
Place of Origin: China
Brand Name: Richarmony
Certification: ISO9001
Model Number: RHY050LQ2XXN-B10
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: $18.73
Packaging Details: 23.81*16.39*5.68(cm)
Delivery Time: 31~35 days
Payment Terms: T/T
Size: |
5 Inch TFT |
Interface: |
LVDS |
Resolution: |
800*480 |
Viewing Angle: |
All |
Brightness: |
1000 |
Operating Temperature: |
-30~80℃ |
Size: |
5 Inch TFT |
Interface: |
LVDS |
Resolution: |
800*480 |
Viewing Angle: |
All |
Brightness: |
1000 |
Operating Temperature: |
-30~80℃ |
| Parameter | Value | Unit |
|---|---|---|
| LCD Size | 5" | |
| Resolution | 800×480 | dots |
| Outline Dimensions | 120.7 × 75.8 × 2.85 | mm |
| Active Area | 108 × 64.8 | mm |
| Contrast Ratio | 1000 | |
| Viewing Angle | 80/80/80/80 | L/R/U/D |
| Luminance | 1000 | cd/m² |
| Interface | LVDS | |
| Pin Count | 40 | pin |
| Operating Temperature | -30 to +80 | °C |
| Storage Temperature | -30 to +80 | °C |
