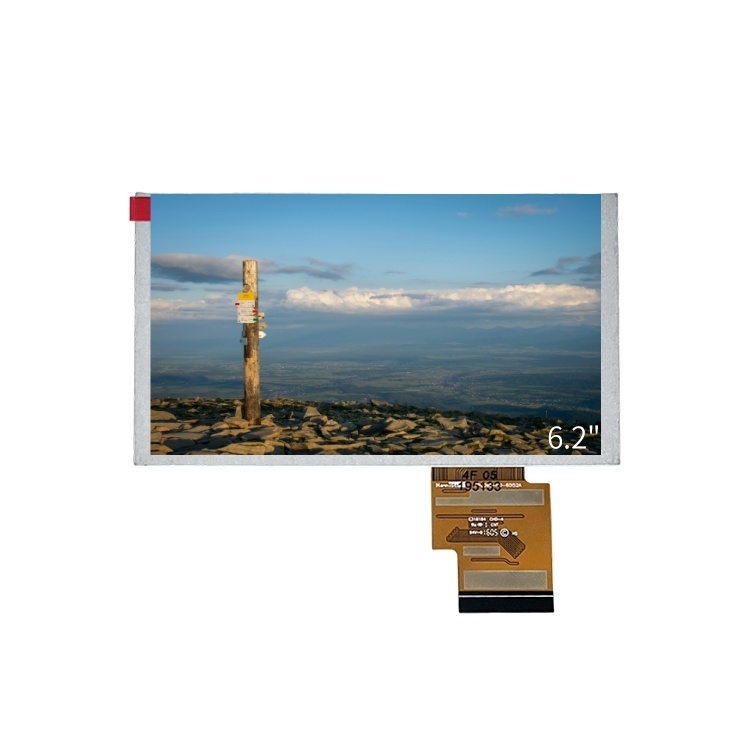

400nits TFT LCD Screens 800x480 Resolution 6.2 Inch Display With TTL Interface

Name: 400nits TFT LCD Screens 800x480 Resolution 6.2 Inch Display With TTL Interface
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY062
Price: 12.58 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY062

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 12.58

Packaging Details: 20.6*14.1*5.5(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      400nits TFT LCD Screens, TFT LCD Screens 800x480, 6.2 Inch Display 400nits


Name:	TFT LCD Screens	LCD Size:	6.2" TFT
Outline Dimension:	155.2088.204.80 Mm	Display Area:	137.52*77.232 Mm
Number Of Pixel:	800*480	Brightness:	400cd/m²
Interface:	TTL	Viewing Angle:	LRUD 75/75/70/70
Operating Temperature:	-20°C To 70°C	Storage Temperature:	-30°C To 80°C

Name:	TFT LCD Screens
LCD Size:	6.2" TFT
Outline Dimension:	155.2088.204.80 Mm
Display Area:	137.52*77.232 Mm
Number Of Pixel:	800*480
Brightness:	400cd/m²
Interface:	TTL
Viewing Angle:	LRUD 75/75/70/70
Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

Description

400nits TFT LCD Screens 800x480 Resolution 6.2 Inch Display With TTL Interface

6.2 Inch TFT LCD Display 800x480 Resolution 400nits With TTL Interface

Technical Specifications

LCD size	6.2" TFT
Outline Dimension	155.2088.204.80 mm
Display area	137.52*77.232 mm
Number of Pixel	800*480
Brightness	400cd/m²
Interface	TTL
Viewing Angle	LRUD 75/75/70/70
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This 6.2-inch TFT LCD display, featuring 800x480 resolution, 400nits brightness and TTL interface, centers on "high-brightness adaptation for small-to-medium screens + convenient integration via TTL interface", suitable for industrial portable testing terminals, outdoor environmental monitors, home smart control panels and other scenarios. The 800x480 resolution (16:9 aspect ratio) delivers clear image quality on the 6.2-inch screen—equipment parameter text and fault code marks in industrial testing have sharp edges; temperature-humidity curves and pollutant concentration scales on outdoor monitors are accurate; home appliance control icons and energy consumption data on smart panels are intuitive and easy to understand. The 16:9 aspect ratio fits the needs of "light interaction + information focus", allowing 10-12 core contents to be displayed on a single screen, avoiding information congestion during operation and meeting the core demand of "one-hand operation, quick reading" for portable devices.​

400nits high brightness is a core highlight: calibrated for strong-light scenarios, there is no reflection or whitening on the screen under midday outdoor or industrial workshop strong light. When reading monitoring data during outdoor work or checking test results in industrial scenarios, there is no need to block light for clear recognition; even in dim environments, brightness can be flexibly adjusted (80-400nits), balancing display clarity and visual comfort, avoiding visual fatigue caused by harsh light, and adapting to use in multiple light conditions.​

The TTL interface provides efficient transmission assurance for the display: it complies with general industrial and consumer electronics standards, with a transmission rate of 200Mbps, which can synchronize industrial testing data, outdoor monitoring information and smart panel operation feedback in real time without lag; it can be directly connected to most embedded motherboards (such as STM32 and Arduino series) without additional adapter modules, reducing hardware integration difficulty and cost; the interface has basic anti-interference ability, which can resist slight electromagnetic interference in industrial scenarios, ensuring stable data transmission and adapting to complex environments of multiple scenarios.​

Durability and portability are deeply optimized: the display is only 3.8mm thick and weighs about 90g, with no obvious bulk when embedded in handheld devices or control panels, and does not affect device portability; it supports a wide temperature range of -15℃ to 65℃, adapting to low outdoor temperatures in the north and high temperatures in industrial workshops; the screen is covered with 6H scratch-resistant glass, resisting daily friction and slight collisions, with no obvious scratches after long-term use; it has low power consumption (operating power ≤80mW), adapting to the battery-powered needs of portable devices and extending single-use battery life.​

In summary, with 800x480 clear display, 400nits high brightness and convenient TTL interface adaptation, this 6.2-inch TFT LCD display balances small-to-medium screen portability and multi-scenario practicality, providing an efficient display solution for small devices in industrial testing, outdoor monitoring and smart home scenarios.
