EDP HD TFT LCD Display 11.6 Inch Industrial TFT Displays 1920x1080 Resolution

Name: EDP HD TFT LCD Display 11.6 Inch Industrial TFT Displays 1920x1080 Resolution
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY116
Price: 18.88 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HKC

Certification: ISO9001

Model Number: RHY116

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 18.88

Packaging Details: 31.4*20.8*5.3(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      EDP HD TFT LCD Display, HD TFT LCD Display 11.6 Inch, Industrial TFT Displays 1920x1080


Name:	HD TFT LCD Display	Brand:	Richarmony
LCD Size:	11.6" TFT	Outline Dimension:	263.4 × 157.3 × 2.55 Mm
Display Area:	256.32 × 144.18 Mm	Number Of Pixel:	1920 × 1080 Pixels
Brightness:	220 Cd/㎡	Interface:	30 PIN EDP
Viewing Angle:	IPS	Application:	Industrial

Name:	HD TFT LCD Display
Brand:	Richarmony
LCD Size:	11.6" TFT
Outline Dimension:	263.4 × 157.3 × 2.55 Mm
Display Area:	256.32 × 144.18 Mm
Number Of Pixel:	1920 × 1080 Pixels
Brightness:	220 Cd/㎡
Interface:	30 PIN EDP
Viewing Angle:	IPS
Application:	Industrial

Description

EDP HD TFT LCD Display 11.6 Inch Industrial TFT Displays 1920x1080 Resolution

11.6 Inch Full HD TFT LCD Display 1920x1080 Resolution with 30 PIN EDP

Technical Specifications

Display Size	11.6" TFT
Dimensions	263.4 × 157.3 × 2.55 mm
Display Area	256.32 × 144.18 mm
Resolution	1920 × 1080 pixels
Brightness	220 cd/㎡
Interface	30 PIN EDP
Viewing Angle	IPS
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

This 11.6-inch Full HD TFT LCD display, featuring 1920x1080 resolution and a 30 PIN EDP interface, centers on "Full HD visuals for small-to-medium screens + efficient transmission via 30 PIN EDP", making it ideal for portable smart devices like thin laptop secondary screens, industrial portable diagnostic terminals, and in-vehicle rear-seat entertainment screens. The 1920x1080 resolution delivers sharp image quality—text edges are crisp, and image details are clear—whether for laptop office documents, industrial equipment parameter charts, or in-vehicle video content, with no blurriness or distortion. Its 16:9 golden aspect ratio suits mainstream content display, allowing 18-22 core pieces of information on a single screen to avoid frequent page-turning.

The 30 PIN EDP interface is key for transmission: it reaches a speed of 2.7Gbps, synchronizing dynamic images and data in real time without lag or delay. Its low-power design (operating power ≤100mW) extends the battery life of portable devices. With pin definitions complying with industrial and consumer electronics standards, it connects directly to main control chips (e.g., Intel Celeron, ARM Cortex-A series) without adapters, reducing integration difficulty.

Durability adapts to multiple scenarios: at only 4.0mm thick and weighing about 150g, it fits into handheld terminals or in-vehicle brackets without adding bulk. It supports a wide temperature range of -10℃ to 60℃ to withstand high and low-temperature environments. The 7H scratch-resistant glass and anti-fingerprint coating minimize daily wear, ensuring clear display over the long term.

In summary, this 11.6-inch display leverages 1920x1080 Full HD and high-speed, low-power transmission via the 30 PIN EDP interface, balancing portability and durability. It suits thin devices, industrial terminals, and in-vehicle scenarios, providing a high-definition, efficient display solution for small-to-medium screen needs.

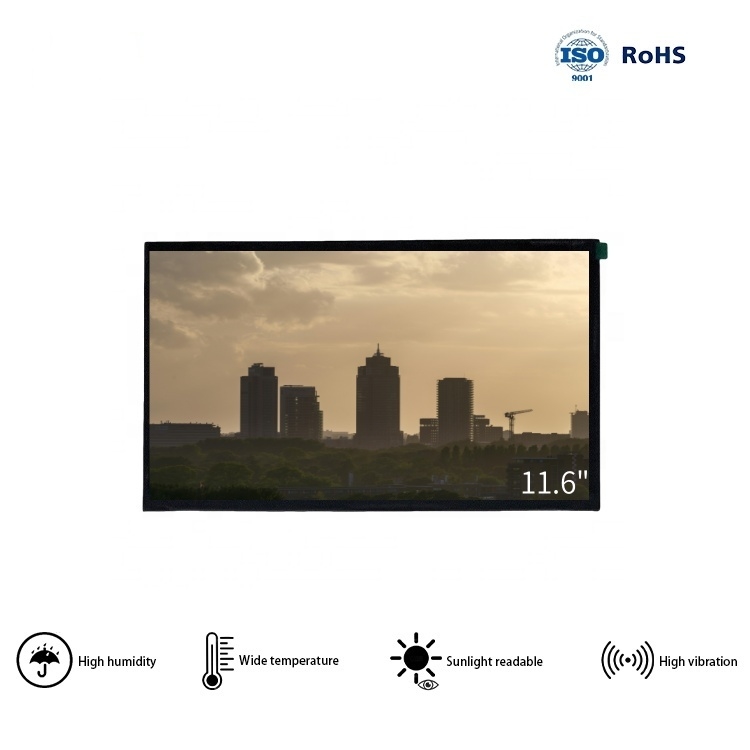

EDP HD TFT LCD Display 11.6 Inch Industrial TFT Displays 1920x1080 Resolution 0

EDP HD TFT LCD Display 11.6 Inch Industrial TFT Displays 1920x1080 Resolution 1
