Automotive 8.9 Inch Display 1920x720 Display With 60 PIN LVDS Interface

Name: Automotive 8.9 Inch Display 1920x720 Display With 60 PIN LVDS Interface
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY089
Price: 15.36 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY089

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 15.36

Packaging Details: 26.8*14*5.6(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  Automotive 8.9 Inch Display, 8.9 Inch Display 1920x720, Automotive 1920x720 Display


Name:	8.9 Inch Display	Display Mode:	TFT
Outline Dimension:	217.78 × 89.68 × 5.2 Mm	Display Area:	211.68 × 79.38 Mm
Number Of Pixel:	1920 × 720	Brightness:	300 Cd/㎡
Interface:	60 PIN LVDS	Viewing Angle:	IPS
Application:	Automotive

Name:	8.9 Inch Display
Display Mode:	TFT
Outline Dimension:	217.78 × 89.68 × 5.2 Mm
Display Area:	211.68 × 79.38 Mm
Number Of Pixel:	1920 × 720
Brightness:	300 Cd/㎡
Interface:	60 PIN LVDS
Viewing Angle:	IPS
Application:	Automotive

Description

Automotive 8.9 Inch Display 1920x720 Display With 60 PIN LVDS Interface

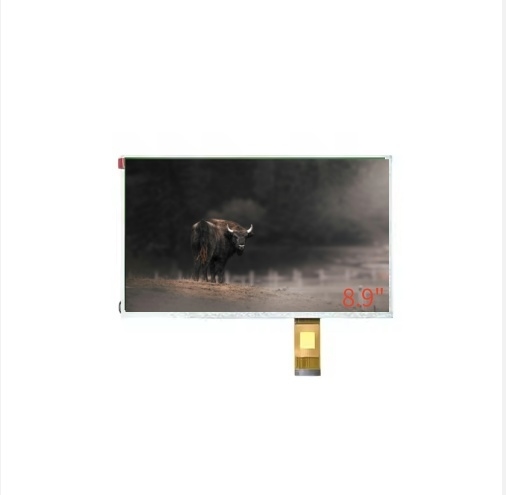

8.9 Inch IPS TFT LCD Display 1920x720 Resolution With 60 PIN LVDS Interface

Display Size	8.9" TFT
Dimensions	217.78 × 89.68 × 5.2 mm
Display Area	211.68 × 79.38 mm
Resolution	1920 × 720 pixels
Brightness	300 cd/㎡
Interface	60 PIN LVDS
Viewing Angle	IPS
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This 8.9-inch IPS TFT LCD display, featuring 1920x720 resolution and 60 PIN LVDS interface, centers on "mid-screen HD precision + 60 PIN LVDS strong adaptability", suitable for industrial testing terminals, portable gaming devices, in-vehicle central control main screens and other scenarios. The 1920x720 resolution (horizontal HD) delivers higher pixel density on the 8.9-inch size—it can clearly show tiny defects of parts in industrial testing, present vivid character textures and scene details in gaming, and display accurate road signs on navigation maps in vehicles. The 21:9 wide-screen ratio fits "horizontal multi-tasking" needs, allowing split-screen display of 2-3 types of information (e.g., testing images + parameter lists on industrial terminals, navigation + audio-visual on vehicle screens), avoiding information congestion and meeting the "precision display + efficient interaction" needs of mid-screen devices.​

IPS wide-view technology enhances multi-scenario practicality: no color distortion at 178° full angles. During industrial testing, multiple people can view part images without visual deviation; in vehicles, drivers and co-pilots see consistent screen colors; when sharing gaming screens, there’s no distortion from side angles. There’s no need to limit viewing to the front, improving usage flexibility.​

The 60 PIN LVDS interface is a core advantage: compared with conventional interfaces, the 60 PIN design supports dual-channel data transmission, with a speed of 1.2Gbps, synchronizing industrial testing data, gaming dynamic images and vehicle navigation information in real time without lag. Its pin definition is compatible with industrial motherboards, gaming main controls, vehicle chips and other devices, no additional adapter board is needed, reducing integration costs. It also has industrial-grade anti-interference ability to resist workshop motors and vehicle electromagnetic radiation, ensuring stable transmission.​

In terms of durability, the display is 4.5mm thick and weighs 145g, balancing mid-screen display area and portability; it supports a wide temperature range of -15℃ to 65℃, adapting to high temperatures in industrial workshops and low temperatures in vehicles; 7H scratch-resistant glass with anti-glare coating resists tool scratches in industrial scenarios and reduces strong light reflection in vehicles, maintaining stable image quality for long-term use.​

In summary, with 1920x720 HD, IPS wide viewing angle and 60 PIN LVDS strong adaptability, this 8.9-inch display balances mid-screen precision and multi-device compatibility, providing a high-definition and reliable display solution for mid-sized terminals.
