Shenzhen Richarmony Technology Co., Ltd.
Product Details
Place of Origin: China
Certification: ISO9001
Model Number: RHY015
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: US $ 5.6
Packaging Details: 8.2*8.4*5.2(cm)
Delivery Time: 31-35 work days
Payment Terms: T/T
Name: |
Small TFT Screens |
LCD Size: |
1.54" |
Outline Dimension: |
31.52 × 33.72 × 1.55 Mm |
Display Area: |
27.74 × 27.74 Mm |
Number Of Pixel: |
320 × 320 Pixels |
Brightness: |
300 Cd/㎡ |
Interface: |
3SPI_16BIT_RGB |
Viewing Angle: |
IPS |
Name: |
Small TFT Screens |
LCD Size: |
1.54" |
Outline Dimension: |
31.52 × 33.72 × 1.55 Mm |
Display Area: |
27.74 × 27.74 Mm |
Number Of Pixel: |
320 × 320 Pixels |
Brightness: |
300 Cd/㎡ |
Interface: |
3SPI_16BIT_RGB |
Viewing Angle: |
IPS |
| Display Size | 1.54" TFT |
|---|---|
| Dimensions | 31.52 × 33.72 × 1.55 mm |
| Display Area | 27.74 × 27.74 mm |
| Resolution | 320 × 320 pixels |
| Brightness | 300 cd/㎡ |
| Interface | 3SPI_16BIT_RGB |
| Viewing Angle | IPS |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |

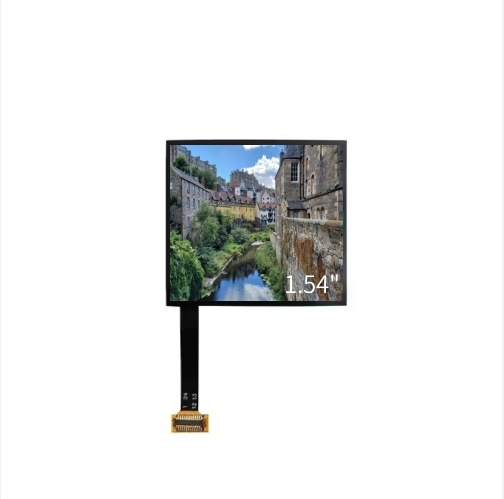

This high-performance 1.54-inch IPS TFT LCD screen module delivers exceptional visual clarity with its 320×320 resolution and 300nits brightness. The compact design enables seamless integration into space-constrained devices while maintaining superior display quality.
Key advantages include:
Engineered with advanced manufacturing techniques, this display module offers reliable performance in demanding environments. The combination of high-definition resolution and enhanced light transmission technology produces sharp, vivid images with accurate color reproduction.
The module's durable construction and wide operating temperature range (-20°C to 70°C) make it suitable for industrial applications where reliability is critical. Its compact footprint and high-quality display characteristics provide designers with an optimal solution for modern electronic devices requiring superior visual interfaces.
