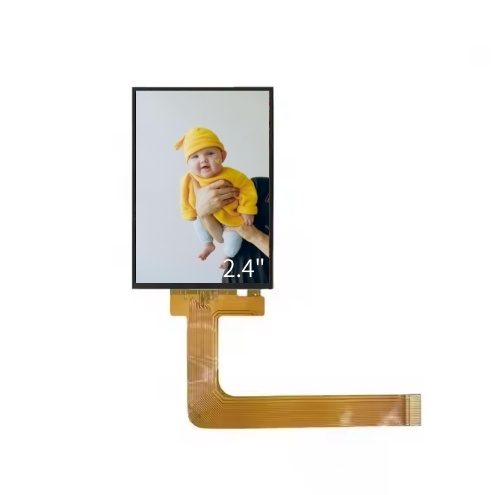

2.4 Inch Mini TFT Display 240x320 Resolution TFT Touch Screen Display

Name: 2.4 Inch Mini TFT Display 240x320 Resolution TFT Touch Screen Display
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY024
Price: 5.8 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY024

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 5.8

Packaging Details: 9.3*11.1*5.3(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      2.4 Inch Mini TFT Display, Mini TFT Display 240x320, 240x320 TFT Touch Screen Display


Name:	Mini TFT Display	Brand:	Richarmony
Display Mode:	TFT	LCD Size:	2.4"
Outline Dimension:	42.72 × 60.40 × 2.25 Mm	Display Area:	36.72 × 48.96 Mm
Number Of Pixel:	240 × 320	Brightness:	300 Cd/㎡
Interface:	MCU 8-BIT	Viewing Angle:	TN

Name:	Mini TFT Display
Brand:	Richarmony
Display Mode:	TFT
LCD Size:	2.4"
Outline Dimension:	42.72 × 60.40 × 2.25 Mm
Display Area:	36.72 × 48.96 Mm
Number Of Pixel:	240 × 320
Brightness:	300 Cd/㎡
Interface:	MCU 8-BIT
Viewing Angle:	TN

Description

2.4 Inch Mini TFT Display 240x320 Resolution TFT Touch Screen Display

2.4" Automotive TFT LCD Panel 240x320 Resolution With Touch Screen

240×320 Resolution with Seamless-Integrated Touch Screen

Specification	Value
Display Size	2.4" TFT
Dimensions	42.72 × 60.40 × 2.25 mm
Display Area	36.72 × 48.96 mm
Resolution	240 × 320 pixels
Brightness	300 cd/㎡
Interface	MCU 8-BIT
Viewing Angle	TN
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

This 2.4-inch automotive TFT LCD panel, with 240x320 resolution and a touch screen, centers on "convenient touch control for small in-vehicle screens + adaptation to compact spaces", suitable for in-vehicle air conditioning control screens, seat adjustment button screens, small auxiliary instrument panels and other scenarios. The 240x320 resolution (4:3 aspect ratio) enables clear display in small sizes—temperature scales and airspeed level icons on air conditioning control screens are sharp and distinguishable; seat back angle and position adjustment buttons on seat adjustment screens are accurately presented; tire pressure and fuel consumption data on auxiliary instrument panels are clear and intuitive. The 4:3 ratio fits the in-vehicle need of "small screens focusing on single functions", allowing 6-8 control commands (e.g., temperature + airspeed + mode for air conditioning; forward/backward + up/down adjustment for seats) to be displayed on a single screen, avoiding accidental touches during operation and meeting the safety demand of "quick and accurate operation while driving".​

The touch screen empowers in-vehicle operations: it supports single-point precise touch with a response delay of ≤0.06 seconds. While driving, drivers can adjust air conditioning temperature or switch seat angles with a light touch, without looking down for physical buttons, reducing the time eyes deviate from the road and improving driving safety. The touch screen surface is covered with anti-fingerprint AG glass, which can resist finger oil and dust from air conditioning vents in in-vehicle scenarios. It can be kept clean with daily wiping, and touch sensitivity remains unchanged for a long time; it also has anti-glare properties, with no reflection on the screen under midday direct sunlight, so no need to block light during touch operations, ensuring clear visibility during driving.​

As an automotive-grade panel, its durability meets automotive standards: it supports ultra-wide temperature operation from -30℃ to 80℃, easily coping with low in-vehicle temperatures in northern winters and intense heat in southern summers, with no touch failure at low temperatures and no display distortion at high temperatures; it adopts automotive-grade packaging technology, which can resist vibration during vehicle driving (complying with ISO 16750 vibration standards), avoiding separation of the touch screen from the panel and loose cables; it has low power consumption (operating power ≤40mW), which does not add extra load to the in-vehicle battery and adapts to the long-term operation needs of vehicles.​

In addition, the panel is only 3.2mm thick and weighs about 12g, which can be embedded in narrow areas of the in-vehicle central control panel or seat side control panels, without occupying too much in-vehicle space, perfectly fitting the "compact structure" design concept of in-vehicle devices.​

In summary, with 240x320 clear display, precise touch control and automotive-grade durability, this 2.4-inch automotive TFT LCD panel adapts to segmented in-vehicle control scenarios, providing a safe and convenient touch display solution for small in-vehicle screen devices.
