Shenzhen Richarmony Technology Co., Ltd.
Product Details
Place of Origin: China
Certification: ISO9001
Model Number: RHY017
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: US $ 2.11
Packaging Details: 8.4*9.3*5.3(cm)
Delivery Time: 31-35 work days
Payment Terms: T/T
Name: |

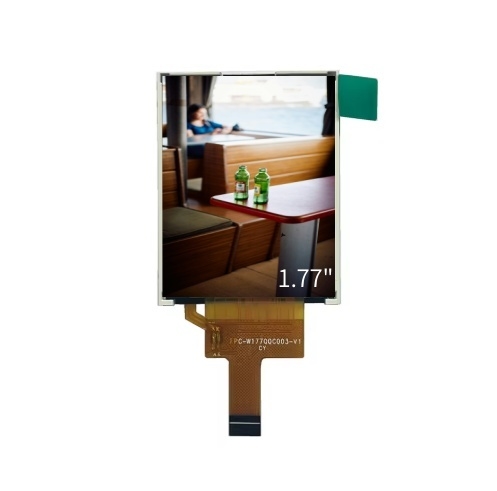

Mini TFT Display |
LCD Size: |
1.77" TFT |
Outline Dimension: |
33.20 * 42.80 * 2.39 Mm |
Display Area: |
28.03 * 35.04 Mm |
Number Of Pixel: |
128 * 160 |
Brightness: |
250 Cd/m² |
Interface: |
4SPI |
Viewing Angle: |
12 O'clock |
Name: |
Mini TFT Display |
LCD Size: |
1.77" TFT |
Outline Dimension: |
33.20 * 42.80 * 2.39 Mm |
Display Area: |
28.03 * 35.04 Mm |
Number Of Pixel: |
128 * 160 |
Brightness: |
250 Cd/m² |
Interface: |
4SPI |
Viewing Angle: |
12 O'clock |
| LCD size | 1.77" TFT |
| Outline Dimension | 33.20 * 42.80 * 2.39 mm |
| Display area | 28.03 * 35.04 mm |
| Number of Pixel | 128 * 160 |
| Brightness | 250 cd/m² |
| Interface | 4SPI |
| Viewing Angle | 12 o'clock |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
