1.54 Inch Small LCD Panel 320x320 Resolution SPI TFT Display 300nits

Name: 1.54 Inch Small LCD Panel 320x320 Resolution SPI TFT Display 300nits
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY015
Price: 6.1 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY015

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 6.1

Packaging Details: 8.2*8.4*5.2(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  1.54 Inch Small LCD Panel, Small LCD Panel 320x320, SPI TFT Display 300nits


Brand:	Richarmony	LCD Size:	1.54"
Outline Dimension:	31.52 × 33.72 × 1.55mm	Display Area:	27.74 × 27.74 Mm
Number Of Pixel:	320 × 320	Brightness:	300cd/㎡
Interface:	3SPI_16BIT_RGB	Viewing Angle:	IPS
Application:	Industria

Brand:	Richarmony
LCD Size:	1.54"
Outline Dimension:	31.52 × 33.72 × 1.55mm
Display Area:	27.74 × 27.74 Mm
Number Of Pixel:	320 × 320
Brightness:	300cd/㎡
Interface:	3SPI_16BIT_RGB
Viewing Angle:	IPS
Application:	Industria

Description

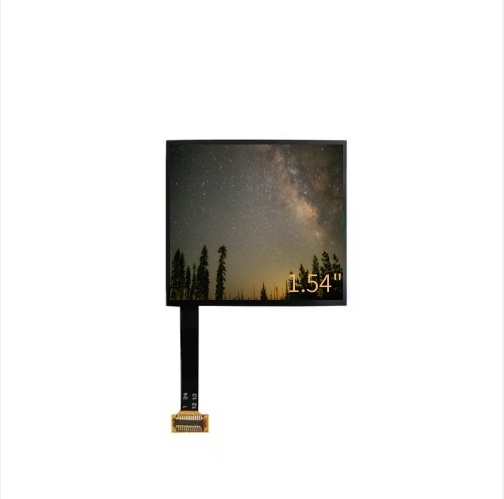

1.54 Inch Small LCD Panel 320x320 Resolution SPI TFT Display 300nits

1.54 Inch HD IPS TFT LCD Display

Specification	Details
Display Size	1.54" TFT
Dimensions	31.52 × 33.72 × 1.55mm
Display Area	27.74 × 27.74 mm
Resolution	320 × 320 pixels
Brightness	300cd/㎡
Interface	3SPI_16BIT_RGB
Viewing Angle	IPS
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This high-definition 1.54-inch IPS TFT LCD display features a 320×320 resolution and 300nits brightness in a compact form factor. Engineered for micro-devices, it delivers crisp, detailed visuals with excellent performance across various lighting conditions. The IPS technology ensures wide viewing angles, while its robust construction provides reliable operation in diverse environments. Ideal for smart wearables, portable testing instruments, and micro IoT terminals.

Key Features

• High Resolution: 320×320 pixel density for sharp image quality
• Bright Display: 300nits brightness ensures visibility in various lighting
• Wide Viewing Angle: IPS technology provides consistent colors from all angles
• Durable Construction: Operates in temperatures from -20°C to 70°C
• Compact Design: Mini display panel ideal for space-constrained applications

1.54 Inch Small LCD Panel 320x320 Resolution SPI TFT Display 300nits 0

1.54 Inch Small LCD Panel 320x320 Resolution SPI TFT Display 300nits 1
