Shenzhen Richarmony Technology Co., Ltd.
Product Details
Place of Origin: China
Certification: ISO9001
Model Number: RHY121
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: US $ 23.25
Packaging Details: 32.8*23.1*5.7(cm)
Delivery Time: 31-35 work days
Payment Terms: T/T
Product Name: |
TFT LCD Display Panel |
LCD Size: |
12.1" TFT |
Outline Dimension: |
277.7 × 180.6 × 6.1mm |
Display Area: |
261.12 × 163.20 Mm |
Number Of Pixel: |
1280 × 800 |
Brightness: |
500 Cd/㎡ |
Interface: |
40 PIN LVDS |
Viewing Angle: |
IPS |
Display Mode: |
TFT |
Product Name: |
TFT LCD Display Panel |
LCD Size: |
12.1" TFT |
Outline Dimension: |
277.7 × 180.6 × 6.1mm |
Display Area: |
261.12 × 163.20 Mm |
Number Of Pixel: |
1280 × 800 |
Brightness: |
500 Cd/㎡ |
Interface: |
40 PIN LVDS |
Viewing Angle: |
IPS |
Display Mode: |
TFT |
| Display Size | 12.1" TFT |
| Dimensions | 277.7 × 180.6 × 6.1mm |
| Display Area | 261.12 × 163.20 mm |
| Resolution | 1280 × 800 pixels |
| Brightness | 500 cd/㎡ |
| Interface | 40 PIN LVDS |
| Viewing Angle | IPS (178°) |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |

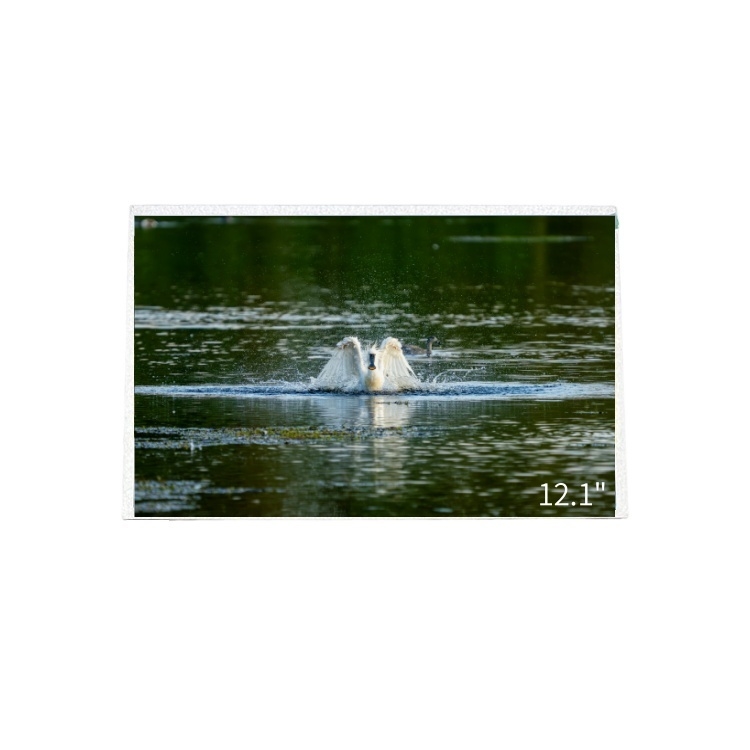

This high-performance 12.1-inch IPS TFT LCD display module combines 1280×800 resolution, 500nits brightness, and LVDS interface for exceptional visual clarity in demanding environments.
Ideal for:
Engineered for professional applications, this display module maintains stable operation from -20°C to 70°C with no color distortion at extreme viewing angles. The high-resolution 1280×800 panel delivers sharp, detailed images for complex data visualization and multimedia content.
