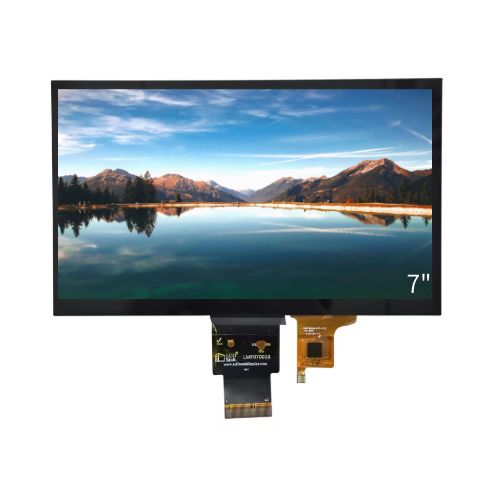

7-Inch High-Brightness 1024x600 Industrial-Grade Capacitive Touch Screen Panel

Name: 7-Inch High-Brightness 1024x600 Industrial-Grade Capacitive Touch Screen Panel
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY070
Price: 20.12 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY070

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 20.12

Packaging Details: 21.5*15*5.4(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  7-inch industrial capacitive touch screen, high-brightness TFT LCD display, 1024x600 resolution touch panel


LCD Size:	7" TFT	Outline Dimension:	164.91003.5
Display Area:	154.2144*85.92	Number Of Pixel:	1024*600
Brightness:	500	Interface:	40 PIN LVDS
Viewing Angle:	IPS	Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

LCD Size:	7" TFT
Outline Dimension:	164.91003.5
Display Area:	154.2144*85.92
Number Of Pixel:	1024*600
Brightness:	500
Interface:	40 PIN LVDS
Viewing Angle:	IPS
Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

Description

7-Inch High-Brightness 1024x600 Industrial-Grade Capacitive Touch Screen Panel

Display Size	7" TFT
Dimensions	164.91003.5
Display Area	154.2144*85.92
Resolution	1024*600
Brightness	500
Interface	40 PIN LVDS
Viewing Angle	IPS
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

This 7-inch industrial-grade high-brightness capacitive touch screen panel, featuring 1024x600 resolution, centers on "clear visibility in strong light + precise touch operation", suitable for scenarios requiring resistance to strong light, such as outdoor industrial inspection terminals, workshop strong-light operation platforms, and small equipment parameter setting screens. High brightness is the core highlight: with a brightness of 500nits and an anti-glare coating, the screen reflectivity is less than 15% under outdoor scorching sun or workshop strong light, ensuring data tables and operation buttons remain clearly visible, solving the pain point of traditional industrial screens that "cannot be seen clearly in strong light"; it also supports 100-500nits manual adjustment, reducing brightness in night or dim environments to avoid glare affecting operations.​

1024x600 resolution and capacitive touch enhance practicality: the resolution presents delicate equipment operation parameters and fault codes on the 7-inch screen, with a single screen capable of carrying 8-10 core pieces of information, adapting to the display needs of small industrial equipment; it supports 5-point capacitive touch with a response delay of ≤0.06 seconds, allowing light touches to switch inspection modes and confirm parameter settings, which can be accurately recognized even with thin industrial gloves, avoiding wear caused by frequent operation of mechanical buttons; the touch area covers the entire screen with no operation dead angles, adapting to the one-hand quick operation habit in industrial scenarios.​

In summary, with high-brightness visibility in strong light, 1024x600 clear display, and precise capacitive touch, this 7-inch industrial-grade high-brightness capacitive touch screen panel adapts to industrial strong-light and outdoor scenarios, providing an efficient and durable human-machine interaction display solution for small industrial equipment.​

7-Inch High-Brightness 1024x600 Industrial-Grade Capacitive Touch Screen Panel 0

7-Inch High-Brightness 1024x600 Industrial-Grade Capacitive Touch Screen Panel 1
