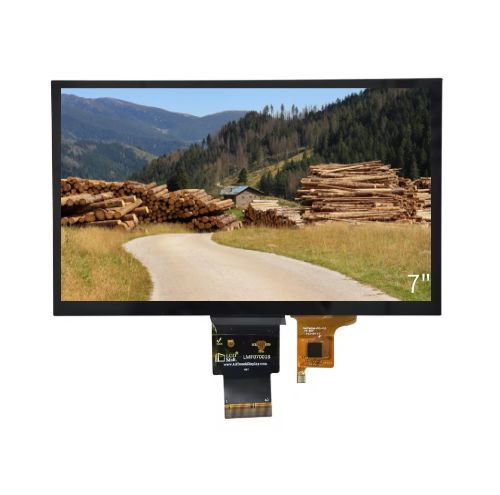

7-Inch 1024x600 TFT LCD Display Anti-Glare Capacitive Touch Screen Panel

Name: 7-Inch 1024x600 TFT LCD Display Anti-Glare Capacitive Touch Screen Panel
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY070
Price: 19.28 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY070

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 19.28

Packaging Details: 21.5*15*5.4(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          7-inch TFT LCD touch screen, 1024x600 anti-glare display, capacitive touch screen panel


LCD Size:	7" TFT	Number Of Pixel:	1024*600
Brightness:	500	Interface:	40 PIN LVDS
Viewing Angle:	IPS	Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

LCD Size:	7" TFT
Number Of Pixel:	1024*600
Brightness:	500
Interface:	40 PIN LVDS
Viewing Angle:	IPS
Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

Description

7-Inch 1024x600 TFT LCD Display Anti-Glare Capacitive Touch Screen Panel

Display Size	7" TFT
Dimensions	164.91003.5
Display Area	154.2144*85.92
Resolution	1024*600
Brightness	500
Interface	40 PIN LVDS
Viewing Angle	IPS
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

This 7-inch anti-glare TFT LCD capacitive touch screen panel, featuring 1024x600 resolution, centers on "visual comfort in all light conditions + smooth touch interaction", suitable for universal indoor and outdoor scenarios such as retail self-service terminals, smart home appliance control panels, and portable detection device displays. The anti-glare feature is the core advantage: the screen surface adopts a nano-level anti-glare coating with a light reflectivity as low as 8%. Whether it is LED light in indoor shopping malls, diffused light on cloudy outdoor days, or direct light in strong-light environments, it can effectively reduce glare interference. Users can clearly read product information and equipment parameters on the screen without adjusting the viewing angle, solving the visual pain point of traditional screens that "cannot be seen clearly due to glare"; meanwhile, the coating has anti-fingerprint function, reducing touch residues and keeping the screen clean after long-term use.​
1024x600 resolution and capacitive touch enhance the user experience: the resolution achieves 169PPI pixel density on the 7-inch screen, making product graphics on retail terminals and data curves on detection devices delicate and clear. A single screen can carry 9-11 key pieces of information, balancing information density and visual comfort; it supports 4-point capacitive touch with a response delay of ≤0.07 seconds. Light touches can switch product categories and confirm detection results, with smooth touch feel that can be accurately recognized even if fingertips are slightly wet, adapting to daily high-frequency operation needs.​
In summary, with anti-glare adaptation to all light conditions, 1024x600 clear display, and smooth capacitive touch, this 7-inch anti-glare TFT LCD capacitive touch screen panel balances use in multiple indoor and outdoor scenarios, providing a comfortable and efficient human-machine interaction display solution for retail, home appliances, and portable devices.​

​
