7-Inch Wide-Viewing-Angle TFT LCD Screen 1024x600 Capacitive Touch Panel

Name: 7-Inch Wide-Viewing-Angle TFT LCD Screen 1024x600 Capacitive Touch Panel
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY070
Price: 18.95 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY070

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 18.95

Packaging Details: 21.5*15*5.4(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      7-inch TFT LCD touch screen, wide-viewing-angle TFT display, 1024x600 capacitive touch panel


LCD Size:	7" TFT	Number Of Pixel:	1024*600
Brightness:	500	Interface:	40 PIN LVDS
Operating Temperature:	-20°C To 70°C	Storage Temperature:	-30°C To 80°C

LCD Size:	7" TFT
Number Of Pixel:	1024*600
Brightness:	500
Interface:	40 PIN LVDS
Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

Description

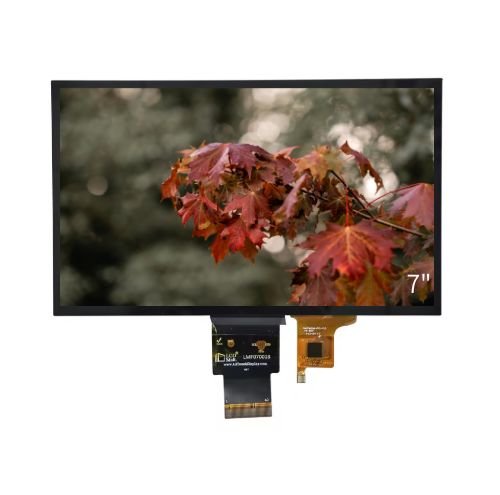

7-Inch Wide-Viewing-Angle TFT LCD Screen 1024x600 Capacitive Touch Panel

Display Size	7" TFT
Dimensions	164.91003.5
Display Area	154.2144*85.92
Resolution	1024*600
Brightness	500
Interface	40 PIN LVDS
Viewing Angle	IPS
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

This 7-inch wide-viewing-angle TFT LCD capacitive touch panel, featuring 1024x600 resolution, centers on "full-angle visual consistency + collaborative touch interaction", suitable for multi-person collaboration scenarios such as catering ordering terminals, medical consultation tablets, and industrial equipment collaborative operation platforms. The wide-viewing-angle is the core highlight: adopting IPS-level wide-viewing-angle technology, it achieves 178° full-angle no color deviation and no brightness attenuation. Whether customers and waiters view the menu from the front and side simultaneously in catering scenarios, or doctors and patients browse inspection reports together in medical scenarios, the text, image colors and details displayed on the screen remain consistent, avoiding the collaboration pain point of traditional screens that "blur once the viewing angle shifts"; even at a 45° oblique viewing angle, the font edges of data tables are still sharp and clear, ensuring no difference in information acquisition for multiple users.​
1024x600 resolution and capacitive touch enhance the user experience: the resolution presents delicate menu graphics and medical data curves on the 7-inch screen, and the 16:9 wide-screen ratio adapts to the content layout of most scenarios. A single screen can carry 10-12 key pieces of information, balancing information density and visual comfort; it supports 5-point capacitive touch with a response delay of ≤0.06 seconds. Light touches can switch ordering categories and mark the key points of medical reports. The touch sensitivity is not affected by the viewing angle, and there is no lag even when multiple people touch and operate at the same time, adapting to the high-frequency interaction needs of collaborative scenarios.​
In summary, with 178° full-angle visual consistency, 1024x600 clear display, and smooth capacitive touch, this 7-inch wide-viewing-angle TFT LCD capacitive touch panel adapts to multi-person collaboration scenarios, providing an efficient and visually unified human-machine interaction display solution for catering, medical care, and industrial collaboration.​

​

​

7-Inch Wide-Viewing-Angle TFT LCD Screen 1024x600 Capacitive Touch Panel 0

7-Inch Wide-Viewing-Angle TFT LCD Screen 1024x600 Capacitive Touch Panel 1
