Shenzhen Richarmony Technology Co., Ltd.
Product Details
Place of Origin: China
Certification: ISO9001
Model Number: RHY090
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: US $ 21.56
Packaging Details: 27.1*17.7*5.6(cm)
Delivery Time: 31-35 work days
Payment Terms: T/T

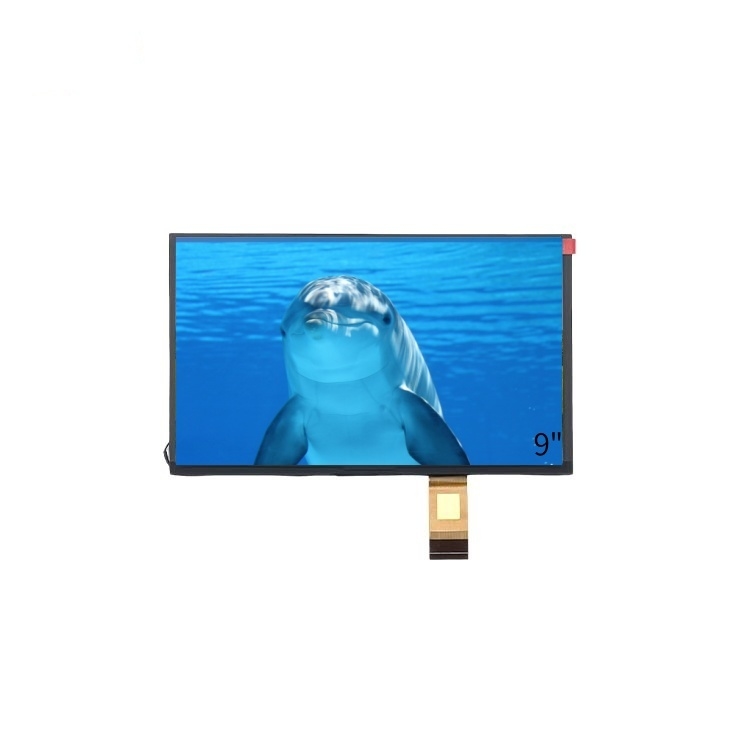

Name: |
IPS TFT Panel |
LCD Size: |
9" TFT |
Outline Dimension: |
211.11*126.5*5.7 Mm |
Display Area: |
196.608*114.15 Mm |
Number Of Pixel: |
1024*600 |
Brightness: |
500 Cd/m² |
Interface: |
40 PIN LVDS |
Viewing Angle: |
IPS Full Angle |
Name: |
IPS TFT Panel |
LCD Size: |
9" TFT |
Outline Dimension: |
211.11*126.5*5.7 Mm |
Display Area: |
196.608*114.15 Mm |
Number Of Pixel: |
1024*600 |
Brightness: |
500 Cd/m² |
Interface: |
40 PIN LVDS |
Viewing Angle: |
IPS Full Angle |
| LCD size | 9" TFT |
| Outline Dimension | 211.11*126.5*5.7 mm |
| Display area | 196.608*114.15 mm |
| Number of Pixel | 1024*600 |
| Brightness | 500 cd/m² |
| Interface | 40 PIN LVDS |
| Viewing Angle | IPS Full Angle |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
