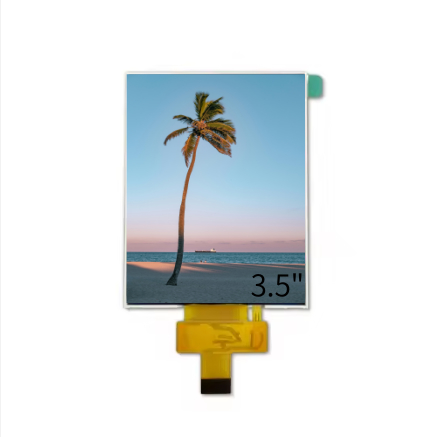

3.5 Inch TFT IPS LCD Display 320x480 Resolution Touch Screen Modules 300nits

Name: 3.5 Inch TFT IPS LCD Display 320x480 Resolution Touch Screen Modules 300nits
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY035
Price: 7.65 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY035

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 7.65

Packaging Details: 11.2*15.8*6.1(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          3.5 Inch TFT IPS LCD Display, TFT IPS LCD Display 320x480, Touch Screen Modules 300nits


Name:	TFT IPS LCD Display	LCD Size:	3.5"
Outline Dimension:	60.75108.7110.29 Mm	Display Area:	48.96*73.44 Mm
Number Of Pixel:	320 * 480	Brightness:	300 Cd/m²
Interface:	TTL	Viewing Angle:	IPS
Display Mode:	TFT	Operating Temperature:	-20°C To +70°C
Storage Temperature:	-30°C To +80°C

Name:	TFT IPS LCD Display
LCD Size:	3.5"
Outline Dimension:	60.75108.7110.29 Mm
Display Area:	48.96*73.44 Mm
Number Of Pixel:	320 * 480
Brightness:	300 Cd/m²
Interface:	TTL
Viewing Angle:	IPS
Display Mode:	TFT
Operating Temperature:	-20°C To +70°C
Storage Temperature:	-30°C To +80°C

Description

3.5 Inch TFT IPS LCD Display 320x480 Resolution Touch Screen Modules 300nits

3.5 Inch IPS TFT LCD Module 320x480 Resolution 300nits with Touch Screen

Key Features

Display Type: 3.5" TFT
Brightness: 300 cd/m²
Interface: TTL
Viewing Angle: IPS

Technical Specifications

Display Size	3.5 inch
Dimensions	60.75108.7110.29 mm
Active Area	48.96*73.44 mm
Resolution	320 * 480 pixels
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C

Product Benefits

This 3.5-inch customized IPS TFT LCD module, boasting a resolution of 320×480, is engineered with a relentless focus on premium quality. Leveraging advanced In-Plane Switching (IPS) technology, it offers an impressive 178° horizontal and vertical viewing angle, ensuring consistent color accuracy and contrast from virtually any perspective.

The module's flexible customization capabilities extend to backlight intensity, touch panel integration, and interface protocols, allowing seamless adaptation to diverse industrial and consumer electronics requirements.

Built with high-grade materials and stringent manufacturing processes, this LCD module delivers stable performance under varying environmental conditions. Its low power consumption design, coupled with a long lifespan of over 50,000 hours, makes it an energy-efficient and durable solution.

Whether for handheld medical devices, industrial control panels, or compact smart gadgets, this IPS TFT LCD module represents the pinnacle of high-definition display technology for high-end small form-factor devices.

3.5 Inch TFT IPS LCD Display 320x480 Resolution Touch Screen Modules 300nits 0

3.5 Inch TFT IPS LCD Display 320x480 Resolution Touch Screen Modules 300nits 1
