9 Inch IPS LCD Display 1024x600 Resolution LVDS Interface LCD Screen 500nits

Name: 9 Inch IPS LCD Display 1024x600 Resolution LVDS Interface LCD Screen 500nits
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY090
Price: 19.89 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY090

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 19.89

Packaging Details: 26.7*17.7*5.6(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              9 Inch IPS LCD Display, IPS LCD Display 1024x600, LVDS Interface LCD Screen 500nits


Name:	IPS LCD Display	LCD Size:	9" TFT
Outline Dimension:	210.7 * 126.5 * 5.1 Mm	Display Area:	196.608 * 114.15 Mm
Number Of Pixel:	1024 * 600	Brightness:	500 Cd/㎡
Interface:	40 PIN LVDS	Viewing Angle:	IPS Full Angle

Name:	IPS LCD Display
LCD Size:	9" TFT
Outline Dimension:	210.7 * 126.5 * 5.1 Mm
Display Area:	196.608 * 114.15 Mm
Number Of Pixel:	1024 * 600
Brightness:	500 Cd/㎡
Interface:	40 PIN LVDS
Viewing Angle:	IPS Full Angle

Description

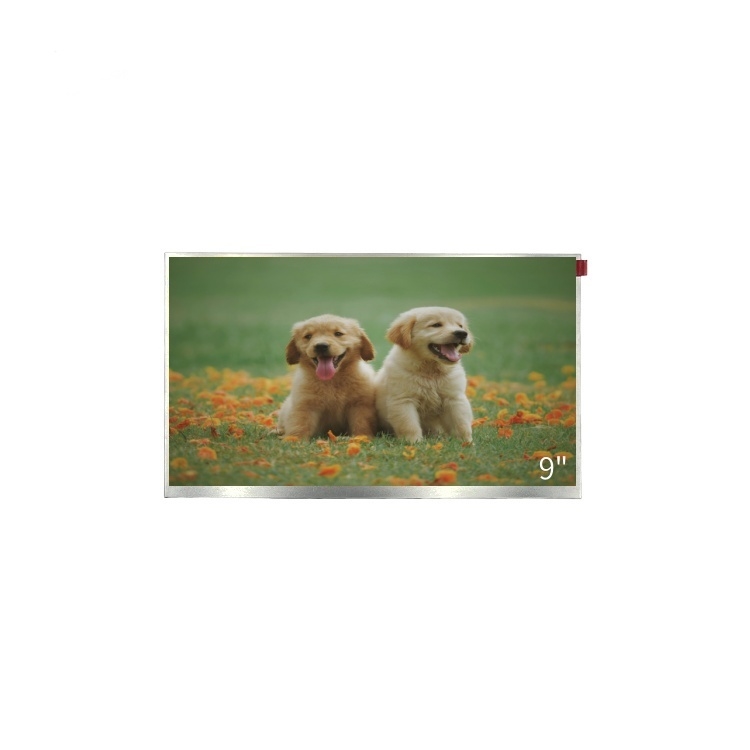

9 Inch IPS LCD Display 1024x600 Resolution LVDS Interface LCD Screen 500nits

9 Inch IPS LCD Display Module 1024x600 Resolution 500nits With LVDS

This high-performance 9-inch IPS display module features a 1024*600 resolution with 500 nits brightness and 40 PIN LVDS interface. Engineered for reliability and clarity, it delivers wide viewing angles, accurate color reproduction, sharp image quality, and stable signal transmission.

Technical Specifications

LCD size	9" TFT
Outline Dimension	210.7 * 126.5 * 5.1 mm
Display area	196.608 * 114.15 mm
Number of Pixel	1024 * 600
Brightness	500 cd/㎡
Interface	40 PIN LVDS
Viewing Angle	IPS Full Angle
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

9 Inch IPS LCD Display 1024x600 Resolution LVDS Interface LCD Screen 500nits 0

9 Inch IPS LCD Display 1024x600 Resolution LVDS Interface LCD Screen 500nits 1

Key Features

9-inch IPS TFT LCD with 1024*600 resolution
High brightness 500 cd/㎡ for excellent visibility
40 PIN LVDS interface for stable signal transmission
IPS technology provides wide viewing angles
Precise color reproduction and sharp visuals
Wide operating temperature range (-20°C to 70°C)
Compact design with slim 5.1mm thickness

Ideal for demanding applications including vehicle-mounted systems, industrial equipment, and outdoor terminals.
