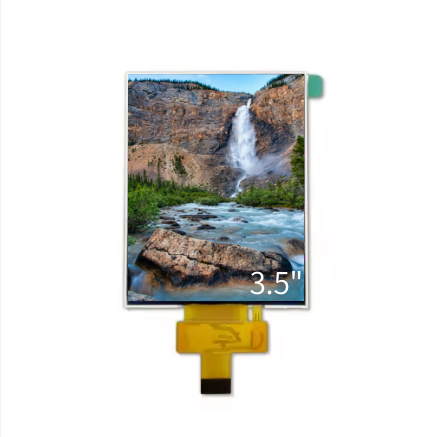

Customized IPS LCD Display 3.5 Inch TFT LCD Display Screen 320x480 Resolution

Name: Customized IPS LCD Display 3.5 Inch TFT LCD Display Screen 320x480 Resolution
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY035
Price: 8.12 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY035

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 8.12

Packaging Details: 11.2*15.8*6.1(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Customized IPS LCD Display, IPS LCD Display 3.5 Inch, TFT LCD Display Screen 320x480


Product Name:	IPS LCD Display	Outline Dimension:	60.75108.7110.29 Mm
Display Area:	48.96*73.44 Mm	LCD Size:	3.5"
Number Of Pixel:	320 * 480 Pixels	Brightness:	300 Cd/m²
Interface:	TTL	Viewing Angle:	IPS

Product Name:	IPS LCD Display
Outline Dimension:	60.75108.7110.29 Mm
Display Area:	48.96*73.44 Mm
LCD Size:	3.5"
Number Of Pixel:	320 * 480 Pixels
Brightness:	300 Cd/m²
Interface:	TTL
Viewing Angle:	IPS

Description

Customized IPS LCD Display 3.5 Inch TFT LCD Display Screen 320x480 Resolution

Customized 3.5 Inch IPS TTL TFT LCD Module 320x480 Resolution Display Screen

This customized 3.5-inch high-clarity IPS TFT LCD module features a WVGA resolution of 320*480, combining multiple advanced display technologies.

Key Features

Display Type: 3.5" TFT
Brightness: 300 cd/m²
Interface: TTL
Viewing Angle: IPS

Technical Specifications

Display Size	3.5 inch
Dimensions	60.75108.7110.29 mm
Active Area	48.96*73.44 mm
Resolution	320 * 480 pixels
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C

Product Benefits

With ultra-high pixel density for sharp visuals, it offers a 178° viewing angle (both horizontal and vertical) for consistent image quality from any perspective.

The IPS technology enables accurate color reproduction with an 800:1 contrast ratio and 72% NTSC color gamut coverage, delivering vivid and lifelike colors.

The module supports extensive customization options including:

Adjustable backlight brightness for various lighting conditions
Integration of resistive or capacitive touch panels
Interface protocol modifications (SPI, I²C, or parallel)

Ideal for portable medical equipment, industrial control panels, handheld gaming consoles, and IoT devices, this LCD module ensures clear information display while enhancing user experience with superior visual performance.
