Shenzhen Richarmony Technology Co., Ltd.
Product Details
Place of Origin: China
Brand Name: Richarmony
Certification: ISO9001
Model Number: HSD103JPW2-F10
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: $23.12
Packaging Details: 30.81*16.39*5.79(cm)
Delivery Time: 31~35 days
Payment Terms: T/T
Name: |

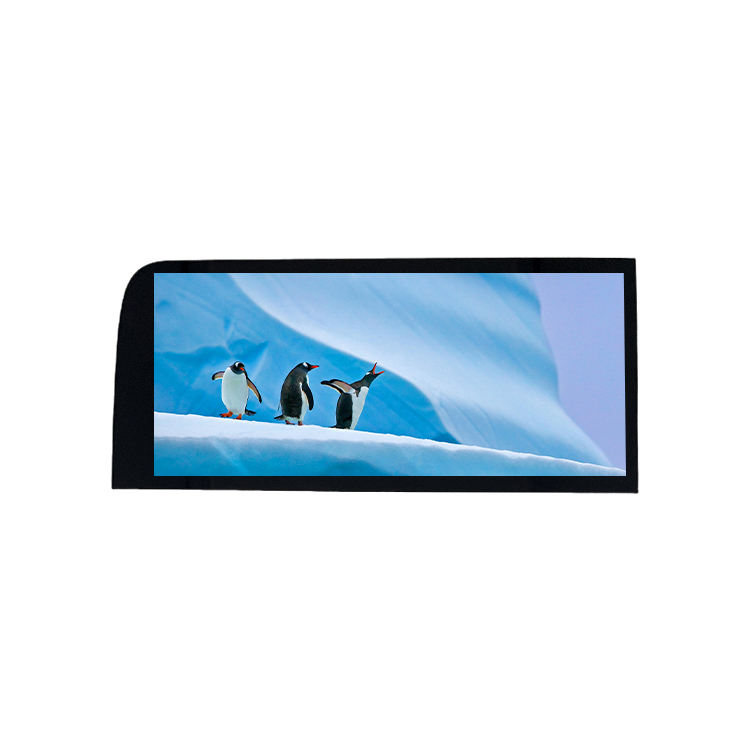

Custom LCD Display Module |
Size: |
10.3 Inch TFT |
Interface: |
LVDS |
Resolution: |
1920*720 |
Viewing Angle: |
All |
Brightness: |
1000 |
Operating Temperature: |
-40~85℃ |
Name: |
Custom LCD Display Module |
Size: |
10.3 Inch TFT |
Interface: |
LVDS |
Resolution: |
1920*720 |
Viewing Angle: |
All |
Brightness: |
1000 |
Operating Temperature: |
-40~85℃ |
| Attribute | Value |
|---|---|
| Display Size | 10.3-inch TFT |
| Resolution | 1920 × 720 pixels |
| Interface | LVDS (50-pin) |
| Viewing Angle | 85°/85°/85°/85° (L/R/U/D) |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1400:1 |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Measurement | Value (mm) |
|---|---|
| Outline Dimensions | 258.9 (H) × 111.1 (V) × 7.55 (D) |
| Active Area | 243.648 (H) × 91.368 (V) |
This high-performance TFT LCD module is ideal for industrial control systems, automotive displays, medical equipment, and other applications requiring reliable operation in extreme temperature conditions.
