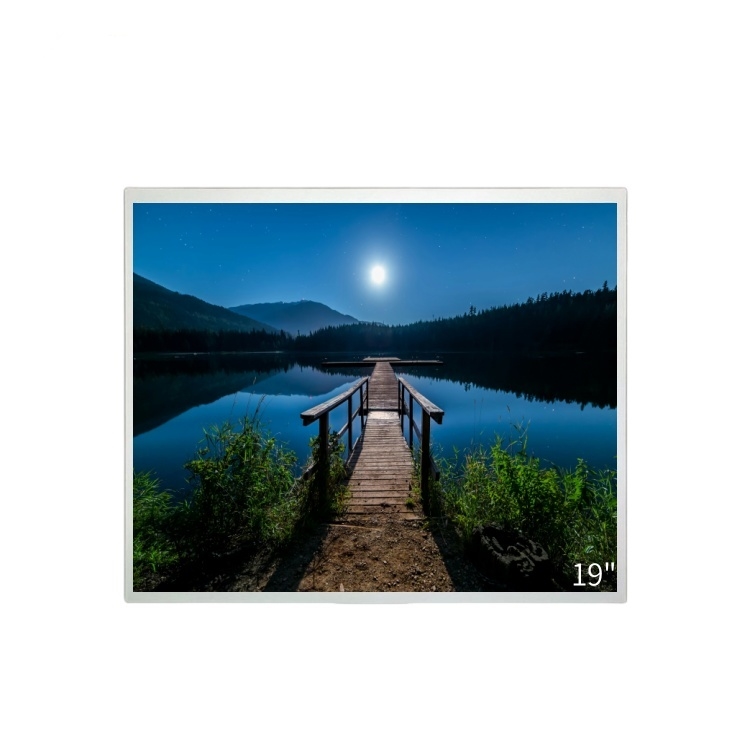

Industrial Custom TFT Display 19 Inch LCD Screen Displays 1280x1024 30 PIN LVDS

Name: Industrial Custom TFT Display 19 Inch LCD Screen Displays 1280x1024 30 PIN LVDS
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY190
Price: 37.15 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY190

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 37.15

Packaging Details: 45.2*37.5*6.3(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      Industrial Custom TFT Display, Custom TFT Display 19 Inch, LCD Screen Displays 1280x1024


Product Name:	Custom TFT Display	LCD Size:	19" TFT
Outline Dimension:	396 × 324 × 10.9 Mm	Display Area:	376.32 × 301.06 Mm
Number Of Pixel:	1280 × 1024 Pixels	Brightness:	250 Cd/㎡
Interface:	30 PIN LVDS	Viewing Angle:	6 O'clock
Operating Temperature:	0°C To 50°C	Storage Temperature:	-20°C To 60°C

Product Name:	Custom TFT Display
LCD Size:	19" TFT
Outline Dimension:	396 × 324 × 10.9 Mm
Display Area:	376.32 × 301.06 Mm
Number Of Pixel:	1280 × 1024 Pixels
Brightness:	250 Cd/㎡
Interface:	30 PIN LVDS
Viewing Angle:	6 O'clock
Operating Temperature:	0°C To 50°C
Storage Temperature:	-20°C To 60°C

Description

Industrial Custom TFT Display 19 Inch LCD Screen Displays 1280x1024 30 PIN LVDS

Customized 19 Inch 1280x1024 TFT LCD Display 30 PIN LVDS for Industrial

Key Specifications:

Display Size	19" TFT
Dimensions	396 × 324 × 10.9 mm
Display Area	376.32 × 301.06 mm
Resolution	1280 × 1024 pixels
Brightness	250 cd/㎡
Interface	30 PIN LVDS
Viewing Angle	6 O'clock
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C

This customized 19-inch thin-film transistor liquid-crystal display (TFT LCD) panel, configured with a 1280×1024 native resolution and a 30-pin low-voltage differential signaling (LVDS) interface, is engineered specifically for industrial-grade applications. It offers comprehensive industrial customization capabilities covering structural design, display characteristics, and functional integration, ensuring precise interface compatibility, robust multi-environmental resilience, and tailored service provisions. Optimized for specialized industrial use cases, including customized operation consoles for heavy machinery, explosion-proof monitoring systems in chemical processing facilities, and dedicated data terminals in smart manufacturing environments, this display provides an "exactly matched, highly dependable, and long-lasting" customized visual solution for industrial equipment deployment.

Industrial Custom TFT Display 19 Inch LCD Screen Displays 1280x1024 30 PIN LVDS
