Shenzhen Richarmony Technology Co., Ltd.
Product Details
Place of Origin: China
Certification: ISO9001
Model Number: RHY238
Payment & Shipping Terms
Minimum Order Quantity: 1000
Price: US $ 39.13
Packaging Details: 58.5*36.3*6.2(cm)
Delivery Time: 31-35 work days
Payment Terms: T/T
LCD Size: |
23.8" TFT |
Outline Dimension: |
535.0 × 313.0 × 12 Mm |
Display Area: |
527.04 × 296.46 Mm |
Number Of Pixel: |
1920 × 1080 |
Brightness: |
1000 Cd/㎡ |
Interface: |
30 PIN LVDS |
Viewing Angle: |
IPS |
Brand: |
Richarmony |
Application: |
Industria |
LCD Size: |
23.8" TFT |
Outline Dimension: |
535.0 × 313.0 × 12 Mm |
Display Area: |
527.04 × 296.46 Mm |
Number Of Pixel: |
1920 × 1080 |
Brightness: |
1000 Cd/㎡ |
Interface: |
30 PIN LVDS |
Viewing Angle: |
IPS |
Brand: |
Richarmony |
Application: |
Industria |
| Display Size | 23.8" TFT |
| Dimensions | 535.0 × 313.0 × 12 mm |
| Display Area | 527.04 × 296.46 mm |
| Resolution | 1920 × 1080 pixels |
| Brightness | 1000 cd/㎡ |
| Interface | 30 PIN LVDS |
| Viewing Angle | IPS |
| Operating Temperature | -20°C to 80°C |
| Storage Temperature | -30°C to 80°C |

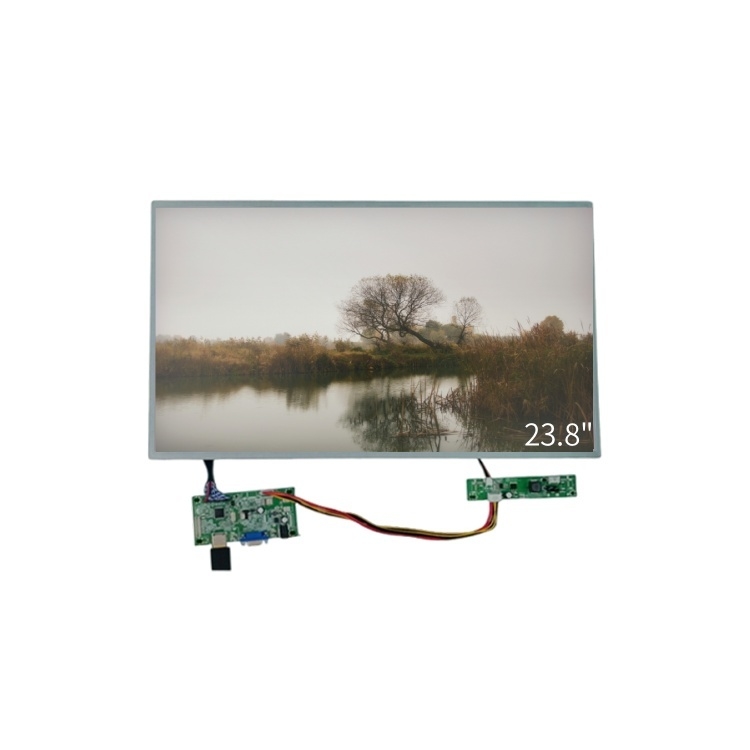

This customized 23.8-inch Full HD TFT LCD monitor panel integrated with capacitive touch technology demonstrates comprehensive scenario-specific customization capabilities across structural design, display performance, and functional configuration. It features a large-format high-definition display with precise visual fidelity, complemented by a highly responsive touch interface that enables nuanced user interactions. Rigorously engineered for multi-application resilience, this panel is particularly well-suited for deployment in commercial intelligent inquiry terminals, industrial control room visualization systems, and medical consultation display platforms. As such, it presents an optimized solution for medium-to-large scale display requirements that necessitate customized interactive functionality, offering enhanced adaptability and reliability across diverse operational contexts.
This 23.8-inch customized TFT LCD capacitive touch screen delivers Full HD 1920×1080 resolution with high-sensitivity touch control. Engineered for durability and adaptability, it's ideal for commercial display systems and collaborative office environments.
