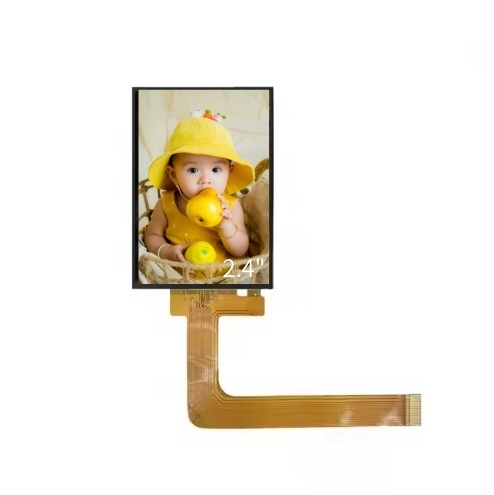

300nits Custom TFT LCD Display 2.4 Inch Touch Display Panels 240x320 Resolution

Name: 300nits Custom TFT LCD Display 2.4 Inch Touch Display Panels 240x320 Resolution
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY024
Price: 6.5 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY024

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 6.5

Packaging Details: 9.3*11.1*5.3(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      300nits Custom TFT LCD Display, Custom TFT LCD Display 2.4 Inch, Touch Display Panels 240x320


Name:	Custom TFT LCD Display	LCD Size:	2.4"
Display Mode:	TFT	Outline Dimension:	42.72 × 60.40 × 2.25 Mm
Display Area:	36.72 × 48.96 Mm	Number Of Pixel:	240 × 320
Brightness:	300 Cd/㎡	Interface:	MCU 8-BIT
Viewing Angle:	TN	Application:	Industria

Name:	Custom TFT LCD Display
LCD Size:	2.4"
Display Mode:	TFT
Outline Dimension:	42.72 × 60.40 × 2.25 Mm
Display Area:	36.72 × 48.96 Mm
Number Of Pixel:	240 × 320
Brightness:	300 Cd/㎡
Interface:	MCU 8-BIT
Viewing Angle:	TN
Application:	Industria

Description

300nits Custom TFT LCD Display 2.4 Inch Touch Display Panels 240x320 Resolution

Customized 2.4 Inch TFT LCD Display

Technical Specifications

Display Size	2.4" TFT
Dimensions	42.72 × 60.40 × 2.25 mm
Display Area	36.72 × 48.96 mm
Resolution	240 × 320 pixels
Brightness	300 cd/㎡
Interface	MCU 8-BIT
Viewing Angle	TN
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This high-performance 2.4-inch TFT LCD panel features a 240×320 WVGA resolution with 300 nits brightness and capacitive touchscreen technology. Engineered for demanding applications, it delivers exceptional image quality, responsive touch performance, and reliable operation in various environmental conditions.

Key Features

Optimized spatial efficiency for compact device integration
Accurate color reproduction and consistent brightness
Advanced capacitive touch interface for precise control
Wide operating temperature range for industrial applications
Customizable configurations available

Applications

Ideal for automotive infotainment systems, industrial control panels, smart home devices, and other applications requiring reliable display performance with touch functionality. Our engineering team can customize specifications to meet your exact requirements.

300nits Custom TFT LCD Display 2.4 Inch Touch Display Panels 240x320 Resolution 0

300nits Custom TFT LCD Display 2.4 Inch Touch Display Panels 240x320 Resolution 1
