1920x1080 Customized TFT LCD Module 23.8 Inch Capacitive Touch Screen Panel 1000nits

Name: 1920x1080 Customized TFT LCD Module 23.8 Inch Capacitive Touch Screen Panel 1000nits
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY238
Price: 37.13 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY238

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 37.13

Packaging Details: 58.5*36.3*6.2(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      1920x1080 Customized TFT LCD Module, Customized TFT LCD Module 23.8 Inch, Capacitive Touch Screen Panel 1000nits


Name:	Customized TFT LCD Module	LCD Size:	23.8" TFT
Outline Dimension:	535.0 × 313.0 × 12 Mm	Display Area:	527.04 × 296.46 Mm
Number Of Pixel:	1920 × 1080 Pixels	Brightness:	1000 Cd/㎡
Interface:	30 PIN LVDS	Viewing Angle:	IPS
Brand:	Richarmony	Application:	Industrial

Name:	Customized TFT LCD Module
LCD Size:	23.8" TFT
Outline Dimension:	535.0 × 313.0 × 12 Mm
Display Area:	527.04 × 296.46 Mm
Number Of Pixel:	1920 × 1080 Pixels
Brightness:	1000 Cd/㎡
Interface:	30 PIN LVDS
Viewing Angle:	IPS
Brand:	Richarmony
Application:	Industrial

Description

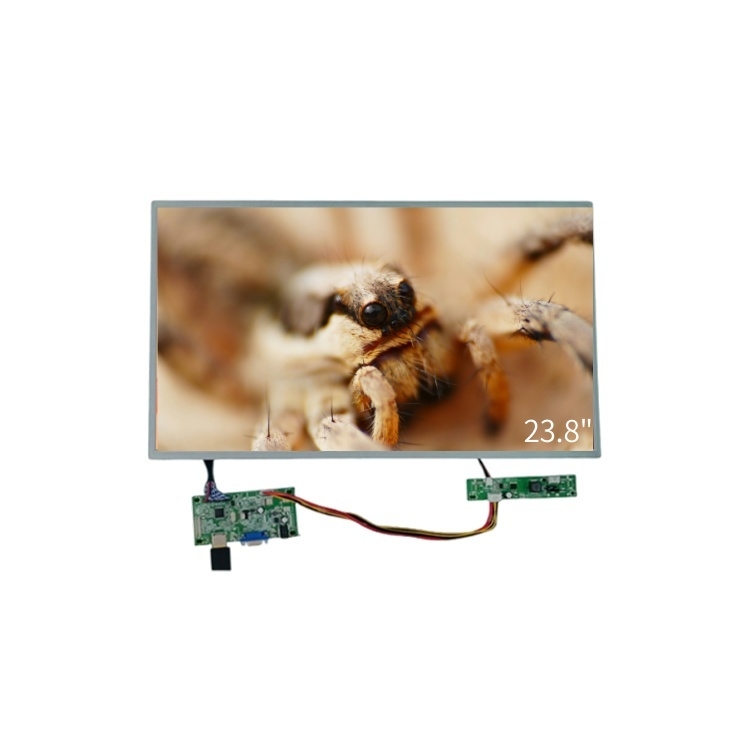

1920x1080 Customized TFT LCD Module 23.8 Inch Capacitive Touch Screen Panel 1000nits

Customized 23.8-Inch 1920x1080 TFT LCD Display 1000nits Capacitive Touch Screen

Technical Specifications

Display Size	23.8" TFT
Dimensions	535.0 × 313.0 × 12 mm
Display Area	527.04 × 296.46 mm
Resolution	1920 × 1080 pixels
Brightness	1000 cd/㎡
Interface	30 PIN LVDS
Viewing Angle	IPS
Operating Temperature	-20°C to 80°C
Storage Temperature	-30°C to 80°C

Product Overview

This customized 23.8-inch TFT LCD capacitive touch screen delivers exceptional performance with Full HD 1920×1080 resolution and 1000 nits brightness. Engineered for demanding applications, it maintains visual clarity even in high-illumination environments.

Key Features

High-definition 1920×1080 resolution for crisp image reproduction
1000 nits brightness for excellent visibility in bright conditions
Responsive capacitive touch technology for precise input
IPS technology for wide viewing angles
Robust operating temperature range (-20°C to 80°C)
Customizable to meet specific application requirements

Applications

Ideal for outdoor digital signage, high-brightness indoor displays, industrial control systems, and other applications requiring reliable performance in challenging environments.

1920x1080 Customized TFT LCD Module 23.8 Inch Capacitive Touch Screen Panel 1000nits 0

1920x1080 Customized TFT LCD Module 23.8 Inch Capacitive Touch Screen Panel 1000nits 1
