4.3 Inch TFT LCD Touch Screen RGB IPS LCD Module 480x272 Resolution

Name: 4.3 Inch TFT LCD Touch Screen RGB IPS LCD Module 480x272 Resolution
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY043
Price: 12.37 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY043

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 12.37

Packaging Details: 15.5*11.7*5.3(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          4.3 Inch TFT LCD Touch Screen, RGB IPS LCD Module, IPS LCD Module 480x272


Name:	TFT LCD Touch Screen	LCD Size:	4.3" TFT
Outline Dimension:	105.42 × 67.07 × 2.80 Mm	Display Area:	95.04 × 53.86 Mm
Number Of Pixel:	480 × 272 Pixels	Brightness:	350 Cd/㎡
Interface:	RGB	Viewing Angle:	IPS
Operating Temperature:	-20°C To +70°C	Storage Temperature:	-30°C To +80°C
Application:	Industria

Name:	TFT LCD Touch Screen
LCD Size:	4.3" TFT
Outline Dimension:	105.42 × 67.07 × 2.80 Mm
Display Area:	95.04 × 53.86 Mm
Number Of Pixel:	480 × 272 Pixels
Brightness:	350 Cd/㎡
Interface:	RGB
Viewing Angle:	IPS
Operating Temperature:	-20°C To +70°C
Storage Temperature:	-30°C To +80°C
Application:	Industria

Description

4.3 Inch TFT LCD Touch Screen RGB IPS LCD Module 480x272 Resolution

TFT Touch Screen 4.3inch 480x272 RGB24-bit Interface NV3047D TFT LCD Module

Technical Specifications

LCD Size	4.3" TFT
Outline Dimension	105.42 × 67.07 × 2.80 mm
Display Area	95.04 × 53.86 mm
Resolution	480 × 272 pixels
Brightness	350 cd/㎡
Interface	RGB
Viewing Angle	IPS
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C

Product Overview

This 4.3-inch TFT LCD touch screen, featuring 480x272 resolution and RGB IPS module, centers on "precise touch control for small screens + HD adaptation via RGB IPS", suitable for small industrial control terminals, portable medical detectors, smart home mini control panels and other scenarios. The 480x272 resolution (16:9 aspect ratio) delivers clear image quality on the 4.3-inch screen—equipment start-stop buttons and parameter adjustment sliders on industrial terminals have sharp edges; blood oxygen and heart rate data scales on medical detectors are accurate; light control icons and temperature values on smart panels are intuitive and easy to understand. The 16:9 ratio fits the need of "focusing on core functions on a single screen", allowing 8-10 operation commands to be displayed, avoiding accidental touches during operation and meeting the "one-hand operation, quick response" needs of small-screen devices.​

IPS wide viewing angle and touch function double empower the screen: no color distortion at 178° full angles, so multiple people in industrial scenarios have no visual deviation when viewing terminal data together, and medical staff can still clearly read test results from the side in medical scenarios; it supports single-point capacitive touch with a response delay of ≤0.07 seconds, and a light touch can switch industrial equipment modes or adjust medical detector parameters, with operation fluency comparable to small tablets. The touch screen surface is covered with an anti-fingerprint coating, reducing industrial oil stains and residual finger marks, which can be kept clean with daily wiping, and touch sensitivity remains unchanged for a long time.​

The RGB interface is the module's adaptation advantage: it complies with general RGB signal standards, with a transmission rate of 300Mbps, which can synchronize touch commands and display content in real time, avoiding asynchrony between operation and screen update; it can connect directly to embedded motherboards (such as STM32 and Renesas RL78 series) without additional adapter chips, reducing hardware integration costs; the interface has basic anti-interference ability, which can resist slight electromagnetic interference in industrial scenarios, ensuring stable data transmission.​

Durability and portability are optimized: only 3.5mm thick and about 75g heavy, it has no obvious bulk when embedded in handheld devices; it supports a wide temperature range of -20℃ to 65℃, adapting to high temperatures in industrial workshops and low temperatures outdoors; 6H scratch-resistant glass resists tool scratches and accidental collisions, with no damage to the screen after long-term use; it has low power consumption (operating power ≤60mW), adapting to battery power supply of portable devices and extending single-use battery life.​

In summary, with 480x272 clear display, IPS wide viewing angle, RGB adaptation and precise touch control, this 4.3-inch TFT LCD touch screen balances small-screen practicality and multi-scenario compatibility, providing an efficient touch display solution for small smart devices.

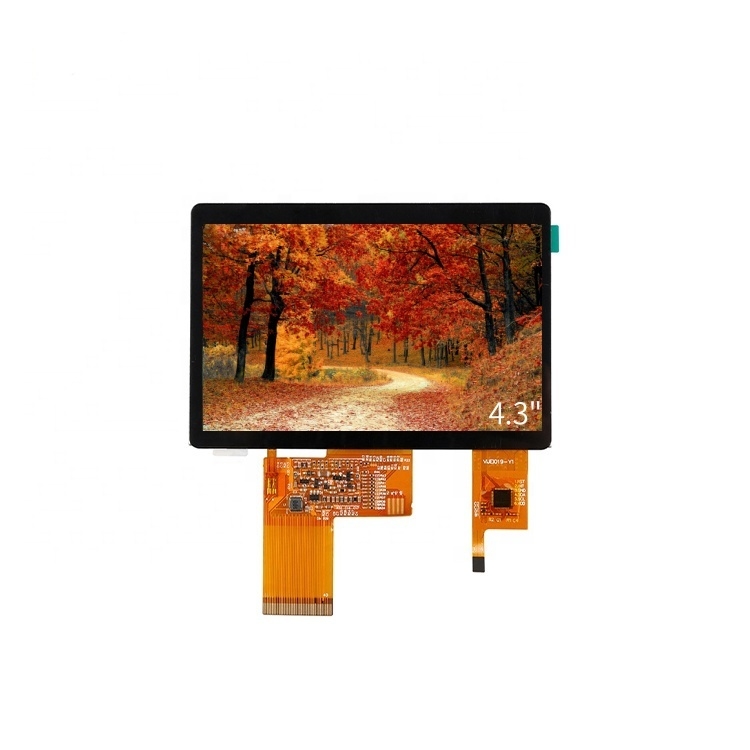

4.3 Inch TFT LCD Touch Screen RGB IPS LCD Module 480x272 Resolution 0

4.3 Inch TFT LCD Touch Screen RGB IPS LCD Module 480x272 Resolution 1
