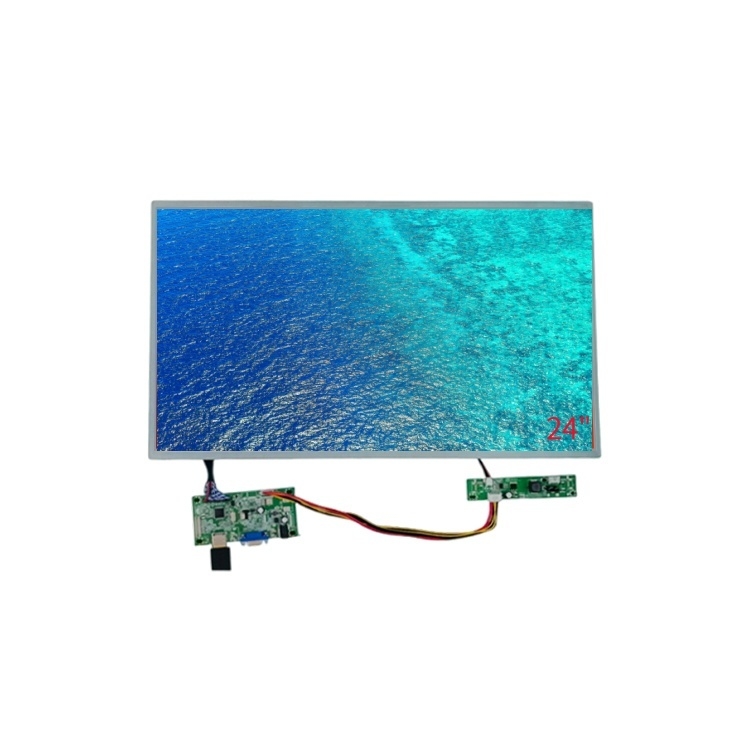

24 Inch TFT LCD Touch Screen Industrial LVDS Touch Display 1920*1080 Resolution

Name: 24 Inch TFT LCD Touch Screen Industrial LVDS Touch Display 1920*1080 Resolution
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY240
Price: 40.56 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY240

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 40.56

Packaging Details: 60.8*37.7*6.9(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      24 Inch TFT LCD Touch Screen, TFT LCD Touch Screen Industrial, LVDS Touch Display 1920*1080


LCD Size:	24" TFT	Outline Dimension:	556(W) × 323.2(H) × 17(T) Mm
Display Area:	531.36 × 298.89 Mm	Number Of Pixel:	1920 × 1080
Brightness:	300 Cd/m²	Connector Pins:	30 PIN
Interface:	LVDS	Viewing Angle:	VA
Operating Temperature:	-20°C To 70°C	Storage Temperature:	-30°C To 80°C

LCD Size:	24" TFT
Outline Dimension:	556(W) × 323.2(H) × 17(T) Mm
Display Area:	531.36 × 298.89 Mm
Number Of Pixel:	1920 × 1080
Brightness:	300 Cd/m²
Connector Pins:	30 PIN
Interface:	LVDS
Viewing Angle:	VA
Operating Temperature:	-20°C To 70°C
Storage Temperature:	-30°C To 80°C

Description

24 Inch TFT LCD Touch Screen Industrial LVDS Touch Display 1920*1080 Resolution

24-inch Industrial 1920*1080 Resolution LCD Touch Screen with LVDS Interface

Technical Specifications

LCD size	24" TFT
Outline Dimension	556(W) × 323.2(H) × 17(T) mm
Display area	531.36 × 298.89 mm
Number of Pixel	1920 × 1080
Brightness	300 cd/m²
Interface	30 PIN LVDS
Viewing Angle	VA
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This 24-inch industrial-grade LCD touch screen, boasting a 1920×1080 resolution and an LVDS interface, is engineered around the principles of "high-definition interaction for industrial large screens" and "stable data transmission via LVDS." It is ideally suited for applications in industrial monitoring centers, large equipment operation terminals, workshop data visualization panels, and other industrial settings. The 1920×1080 Full HD resolution ensures exceptional image clarity on the 24-inch display. In industrial monitoring centers, the screen can support multi-screen splitting, enabling the concurrent display of 8-10 channels of equipment operation images without loss of detail. For operation terminals, complex parameter tables and control interfaces are rendered with sharp precision, while data panels present production reports and energy consumption curves with high-fidelity clarity. The 16:9 aspect ratio is optimized for multi-window parallel display, reducing the need for frequent interface switching and facilitating real-time monitoring and centralized control in industrial operations.

The industrial-grade touch functionality significantly enhances operational efficiency. Equipped with 10-point capacitive touch technology, the screen offers a rapid response time of ≤0.04 seconds, providing a smooth and seamless user experience comparable to commercial-grade touchscreens. It also features an industrial glove touch mode, enabling precise operation while wearing latex or canvas gloves commonly used in industrial settings. This eliminates the need for operators to remove their gloves, thereby improving workflow efficiency. The screen is protected by 9H hardness scratch-resistant glass, providing robust defense against tool impacts and mechanical abrasions, ensuring long-term durability. The oleophobic coating effectively repels industrial oils and dust, allowing for easy maintenance with industrial-grade cleaning materials without compromising touch sensitivity.

The LVDS interface is designed to deliver industrial-grade reliability in data transmission. With a data transfer rate of 1.2Gbps, it enables real-time synchronization of multiple channels of monitoring data and operation command feedback, ensuring zero latency in data transmission. Compliant with stringent industrial EMC standards, the interface provides robust immunity against electromagnetic interference generated by industrial motors and frequency converters, guaranteeing uninterrupted data flow. Its compatibility with industrial main control servers and PLC controllers without the need for additional adapter modules simplifies hardware integration and reduces long-term maintenance costs, making it well-suited for continuous industrial operation requirements.

Engineered for durability in harsh industrial environments, this touch screen features a cold-rolled steel frame, offering superior impact and corrosion resistance, ideal for humid and dusty workshop conditions. It operates within an extended temperature range of -10℃ to 70℃, making it suitable for use in diverse climatic conditions across different geographical regions. With a mean time between failures (MTBF) of ≥60,000 hours, it minimizes equipment downtime and reduces maintenance frequency. The low-power design, with an operating power consumption of ≤200mW, aligns with industrial energy efficiency standards.

In conclusion, this 24-inch industrial-grade touch screen, with its Full HD 1920×1080 resolution, 10-point touch functionality, reliable LVDS transmission, and robust industrial design, provides a high-performance solution for large-screen industrial monitoring and centralized control applications, ensuring efficient and dependable operation in industrial environments.
