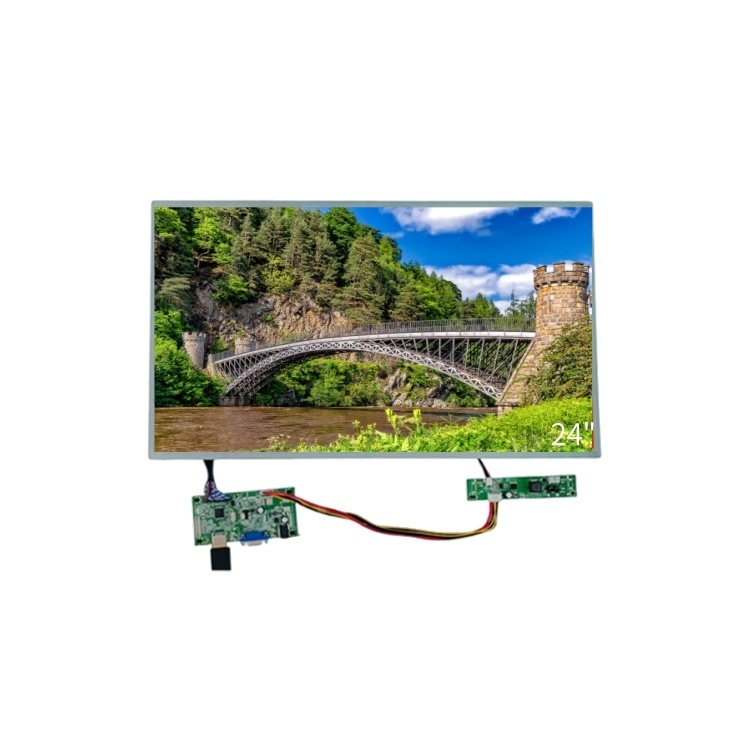

1920x1080 Full HD Panel 24 Inch TFT LCD Capacitive Touchscreen Industrial

Name: 1920x1080 Full HD Panel 24 Inch TFT LCD Capacitive Touchscreen Industrial
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY240
Price: 42.56 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY240

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 42.56

Packaging Details: 60.8*37.7*6.9(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  1920x1080 Full HD Panel, Full HD Panel 24 Inch, TFT LCD Capacitive Touchscreen Industrial


Product Name:	Full HD Panel	Brand:	Richarmony
LCD Size:	24"	Outline Dimension:	556(W) × 323.2(H) × 17(T) Mm
Display Area:	531.36 × 298.89 Mm	Number Of Pixel:	1920 × 1080 Pixels
Brightness:	300 Cd/m²	Interface:	LVDS
Viewing Angle:	VA

Product Name:	Full HD Panel
Brand:	Richarmony
LCD Size:	24"
Outline Dimension:	556(W) × 323.2(H) × 17(T) Mm
Display Area:	531.36 × 298.89 Mm
Number Of Pixel:	1920 × 1080 Pixels
Brightness:	300 Cd/m²
Interface:	LVDS
Viewing Angle:	VA

Description

1920x1080 Full HD Panel 24 Inch TFT LCD Capacitive Touchscreen Industrial

24 Inch 1920x1080 Full HD Industrial LCD with Capacitive Touch Screen

LCD size	24" TFT
Outline Dimension	556(W) × 323.2(H) × 17(T) mm
Display area	531.36 × 298.89 mm
Resolution	1920 × 1080 pixels
Brightness	300 cd/m²
Interface	30 PIN LVDS
Viewing Angle	VA
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

This 24-inch Full HD industrial-grade LCD display, featuring 1920x1080 resolution and a capacitive touch screen, centers on "HD interaction for industrial large screens + precise operation via capacitive touch", suitable for industrial monitoring center screens, large equipment centralized control terminals, workshop data visualization panels and other scenarios. The 1920x1080 Full HD resolution (16:9 aspect ratio) delivers delicate image quality on the 24-inch large screen—the monitoring center can split the screen to display 8-10 channels of equipment operation images, with clear part details and data scales; complex parameter tables and operation buttons on the control terminal have sharp edges without blurriness or trailing; production progress bars and energy consumption curves on the data panel are intuitive and easy to understand, meeting the "centralized monitoring, efficient management" demand of industrial scenarios.​

The capacitive touch function enhances industrial operational practicality: it supports 10-point simultaneous touch with a response delay of ≤0.04 seconds. Operators can zoom in with two fingers to view monitoring details and slide with multiple fingers to switch between different control interfaces, with operation fluency comparable to commercial touch screens; it has "thin industrial glove touch" capability, adapting to scenarios where workshop operators wear latex gloves, enabling precise clicks on parameter adjustment buttons without removing gloves, improving work efficiency. The touch screen surface is covered with 9H hardness scratch-resistant AG glass, which can resist tool collisions and part scratches, with no obvious scratches after long-term use; the oil-resistant coating can isolate workshop oil and dust, and it can be cleaned with an industrial rag daily without affecting touch sensitivity.​

Industrial-grade durability is deeply adapted to complex environments: it adopts a cold-rolled steel frame, which is impact-resistant and corrosion-resistant, adapting to humid and dusty workshop environments; supports a wide temperature range of -10℃ to 70℃, coping with low temperatures in northern winter workshops and high temperatures in southern summer workshops, with no touch failure at low temperatures and no display distortion at high temperatures; the mean time between failures is ≥60000 hours, reducing equipment downtime and maintenance frequency, and lowering industrial production losses; it has strong anti-electromagnetic interference ability, which can resist electromagnetic radiation from workshop motors and frequency converters, complying with industrial EMC test standards to ensure long-term stable operation.​

Compatibility and practicality are optimized: it can be directly connected to industrial main control servers and PLC controllers, supporting industrial operating systems such as Windows and Linux, without additional driver debugging; brightness supports 300-500nits adjustment, increasing brightness in strong-light workshops to ensure visibility and reducing brightness in dim environments to avoid glare; low power consumption (operating power ≤200mW) meets industrial energy-saving needs and adapts to long-term continuous operation.​

In summary, with 1920x1080 Full HD display, 10-point capacitive touch and industrial-grade durability, this 24-inch industrial-grade touch screen adapts to industrial large-screen monitoring and centralized control scenarios, providing an efficient and reliable touch display solution for industrial equipment.​
