30 PIN Industrial Touch Displays 1920*1080 Resolution LVDS Touch Panel 24 Inch

Name: 30 PIN Industrial Touch Displays 1920*1080 Resolution LVDS Touch Panel 24 Inch
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY240
Price: 41.56 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY240

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 41.56

Packaging Details: 60.8*37.7*6.9(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      30 PIN Industrial Touch Displays, Industrial Touch Displays 1920*1080, LVDS Touch Panel 24 Inch


Name:	Industrial Touch Displays	LCD Size:	24" TFT
Outline Dimension:	556(W) × 323.2(H) × 17(T) Mm	Display Area:	531.36 × 298.89 Mm
Number Of Pixel:	1920 × 1080	Brightness:	300 Cd/m²
Interface:	LVDS	Connector Pins:	30 PIN
Viewing Angle:	VA	Application:	Industrial

Name:	Industrial Touch Displays
LCD Size:	24" TFT
Outline Dimension:	556(W) × 323.2(H) × 17(T) Mm
Display Area:	531.36 × 298.89 Mm
Number Of Pixel:	1920 × 1080
Brightness:	300 Cd/m²
Interface:	LVDS
Connector Pins:	30 PIN
Viewing Angle:	VA
Application:	Industrial

Description

30 PIN Industrial Touch Displays 1920*1080 Resolution LVDS Touch Panel 24 Inch

24 Inch Industrial 1920*1080 Resolution LCD Touch Screen with LVDS Interface

Technical Specifications

LCD size	24" TFT
Outline Dimension	556(W) × 323.2(H) × 17(T) mm
Display area	531.36 × 298.89 mm
Number of Pixel	1920 × 1080
Brightness	300 cd/m²
Interface	30 PIN LVDS
Viewing Angle	VA
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

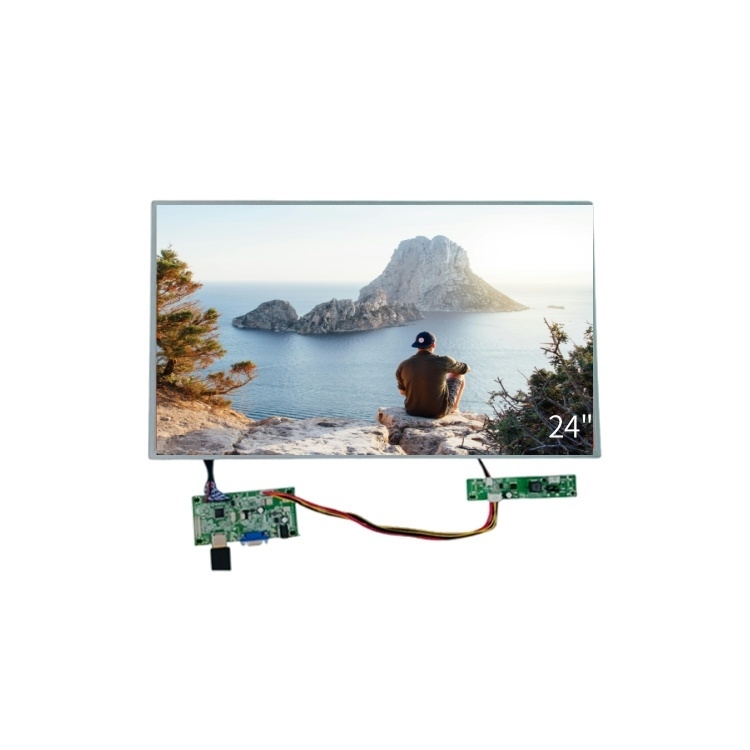

This 24-inch industrial-grade LCD capacitive touch screen features a robust metal frame and LVDS interface, delivering an optimal combination of large visual display, rugged durability, responsive touch functionality, and stable signal transmission. With high compatibility across diverse industrial systems, it's ideal for industrial control centers, monitoring platforms, and other demanding environments.

Key Features

24" industrial-grade TFT LCD display with capacitive touch
Durable metal frame construction for harsh environments
Full HD resolution (1920 × 1080) for clear visuals
High brightness (300 cd/m²) for visibility in various lighting
30-pin LVDS interface for stable signal transmission
Wide operating temperature range (-20°C to 70°C)
VA viewing angle technology for better visibility
