1280x1024 TFT LCD Touchscreen Display 350nits LVDS LCD Panel 17 Inch

Name: 1280x1024 TFT LCD Touchscreen Display 350nits LVDS LCD Panel 17 Inch
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY170
Price: 38.13 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY170

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 38.13

Packaging Details: 41.1*35.3*6.9(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  1280x1024 TFT LCD Touchscreen Display, TFT LCD Touchscreen Display 350nits, LVDS LCD Panel 17 Inch


Product Name:	TFT LCD Touchscreen Display	Brand:	Richarmony
Outline Dimension:	358.5 × 296.5 × 12.45 Mm	Display Area:	337.93 × 270.336 Mm
LCD Size:	17"	Number Of Pixel:	1280 × 1024
Brightness:	350 Cd/m²	Interface:	LVDS
Viewing Angle:	6 O'clock

Product Name:	TFT LCD Touchscreen Display
Brand:	Richarmony
Outline Dimension:	358.5 × 296.5 × 12.45 Mm
Display Area:	337.93 × 270.336 Mm
LCD Size:	17"
Number Of Pixel:	1280 × 1024
Brightness:	350 Cd/m²
Interface:	LVDS
Viewing Angle:	6 O'clock

Description

1280x1024 TFT LCD Touchscreen Display 350nits LVDS LCD Panel 17 Inch

17 Inch TFT LCD Touch Screen Display 1280x1024 350nits With LVDS Interface

Technical Specifications

Display Size	17" TFT
Dimensions	358.5 × 296.5 × 12.45 mm
Display Area	337.93 × 270.336 mm
Resolution	1280 × 1024 pixels
Brightness	350 cd/m²
Interface	30 PIN LVDS
Viewing Angle	6 O'clock
Operating Temperature	-30°C to 85°C
Storage Temperature	-40°C to 95°C

Product Overview

This 17-inch TFT LCD touch screen, featuring 1280x1024 resolution, 350nits brightness and LVDS interface, centers on "HD touch for medium-to-large screens + stable transmission via LVDS", suitable for industrial monitoring center secondary screens, commercial self-service terminals, large equipment operation panels and other scenarios. The 1280x1024 resolution (4:3 aspect ratio) delivers clear image quality on the 17-inch screen—it can split the screen to display 4-6 channels of equipment operation images in industrial monitoring, with no blurriness in part details and data scales; product detail graphics and service process guidelines on commercial terminals are sharp and intuitive; complex parameter tables and control buttons on operation panels are accurately displayed. The 4:3 aspect ratio fits the "data-intensive display" need, allowing 18-22 core pieces of information to be displayed on a single screen, avoiding frequent interface switching and meeting the "centralized viewing, efficient operation" demand of medium-to-large screens.

350nits brightness and touch function double empower the screen: calibrated for multiple scenarios, there is no reflection or whitening in industrial workshop strong light and commercial bright environments, enabling clear information reading without blocking; it supports 5-point capacitive touch with a response delay of ≤0.05 seconds, allowing light touches to zoom in on monitoring images and click to confirm commercial service options, with operation fluency comparable to mainstream touch devices; the touch screen surface is covered with an anti-fingerprint coating, reducing finger marks and user touch residues in commercial scenarios, which can be kept clean with daily wiping, and touch sensitivity remains unchanged for a long time.

The LVDS interface ensures efficient and stable transmission: as a common interface for industry and commerce, it has a transmission rate of 800Mbps, synchronizing monitoring data, commercial interaction information and equipment operation commands in real time without lag; it can be directly connected to industrial motherboards and commercial main control chips (such as Intel J1900, Rockchip RK3399) without additional adapter modules, reducing hardware integration costs; the interface has industrial-grade anti-interference ability, which can resist electromagnetic radiation from workshop motors and commercial wireless devices, ensuring stable transmission in complex environments.

Durability and adaptability are optimized: only 5.8mm thick and about 450g heavy, it has no obvious bulk when embedded in equipment panels; supports a wide temperature range of -10℃ to 65℃, adapting to temperature differences in industrial workshops and normal commercial temperatures; the screen is covered with 7H scratch-resistant glass, resisting tool collisions and accidental user scratches, with no scratches after long-term use; low power consumption (operating power ≤180mW) adapts to long-term operation of commercial equipment and energy-saving needs of industrial equipment.

In summary, with 1280x1024 HD display, 350nits high brightness, stable LVDS transmission and precise touch control, this 17-inch touch screen balances the practicality of medium-to-large screens and compatibility with multiple scenarios, providing an efficient touch display solution for industrial monitoring, commercial services and equipment operation.

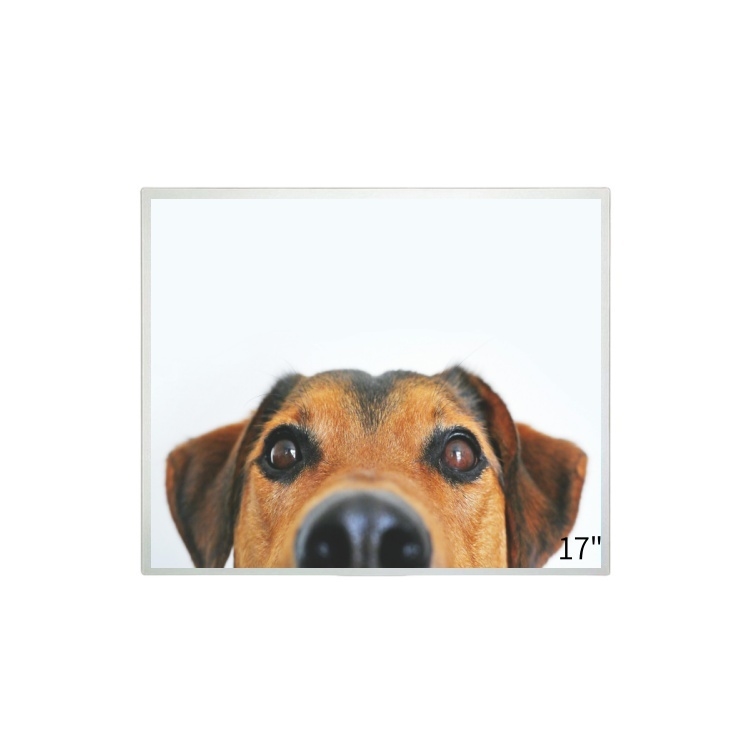

1280x1024 TFT LCD Touchscreen Display 350nits LVDS LCD Panel 17 Inch 0

1280x1024 TFT LCD Touchscreen Display 350nits LVDS LCD Panel 17 Inch 1
