1024x768 Industrial Touchscreen Panel 50 PIN RGB Displays 9.7 Inch

Name: 1024x768 Industrial Touchscreen Panel 50 PIN RGB Displays 9.7 Inch
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY097
Price: 25.89 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY097

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 25.89

Packaging Details: 26.1*21.9*5.5(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      1024x768 Industrial Touchscreen Panel, 50 PIN RGB Displays, RGB Displays 9.7 Inch


Name:	Industrial Touchscreen Panel	LCD Size:	9.7" TFT
Outline Dimension:	210.2×166.2×3.65 Mm	Display Area:	196.608*147.456 Mm
Number Of Pixel:	1024×768	Brightness:	350 Cd/m²
Interface:	RGB	Connector Pins:	50 PIN
Viewing Angle:	9 O'clock	Application:	Industrial

Name:	Industrial Touchscreen Panel
LCD Size:	9.7" TFT
Outline Dimension:	210.2×166.2×3.65 Mm
Display Area:	196.608*147.456 Mm
Number Of Pixel:	1024×768
Brightness:	350 Cd/m²
Interface:	RGB
Connector Pins:	50 PIN
Viewing Angle:	9 O'clock
Application:	Industrial

Description

1024x768 Industrial Touchscreen Panel 50 PIN RGB Displays 9.7 Inch

9.7 Inch Industrial TFT LCD Touch Screen 1024x768 Resolution With RGB Interface

Technical Specifications

LCD Size	9.7" TFT
Outline Dimension	210.2×166.2×3.65 mm
Display Area	196.608*147.456 mm
Resolution	1024×768 pixels
Brightness	350 cd/m²
Interface	50 PIN RGB
Viewing Angle	9 o'clock
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This 9.7-inch industrial-grade TFT LCD touch screen, featuring 1024x768 resolution and RGB interface, centers on "durable touch for industrial scenarios + stable transmission via RGB interface", suitable for industrial control terminals, automated testing equipment, heavy machinery operation panels and other scenarios. The 1024x768 resolution (4:3 aspect ratio) delivers clear image quality on the 9.7-inch screen—equipment operation parameter tables and fault diagnosis charts in industrial control have sharp edges; part defect images and data curve details on testing equipment are accurately distinguishable; the 4:3 aspect ratio fits the "industrial data tabular display" need, allowing 15-18 core pieces of information (e.g., equipment voltage, current, operation duration) to be displayed on a single screen, avoiding frequent interface switching and meeting the "real-time monitoring, efficient operation" demand of industrial scenarios.

The industrial-grade touch function enhances operational practicality: it supports 5-point capacitive touch with a response delay of ≤0.05 seconds, and has "gloved touch" capability (adapting to industrial latex/canvas gloves). Operators can lightly touch to adjust parameters and click to confirm commands without removing gloves, improving work efficiency; the touch screen surface is covered with 9H hardness scratch-resistant glass, which can resist accidental scratches from industrial tools and part collisions, with no obvious scratches after long-term use; it also has an oil-resistant coating—after oil stains and dust adhere in the workshop, it can be cleaned with an industrial rag without affecting touch sensitivity.

The RGB interface provides assurance for industrial transmission: it complies with industrial signal standards, with a transmission rate of 300Mbps, synchronizing control commands and display content in real time to avoid asynchrony between operation and screen update; it can directly connect to industrial main control chips (e.g., STM32H7, TI AM335x) without additional adapter modules, reducing hardware integration complexity; the interface has strong anti-electromagnetic interference ability, which can resist electromagnetic radiation from workshop motors and frequency converters, ensuring stable data transmission and complying with industrial EMC test standards.

Industrial-grade durability is deeply optimized: it adopts a flame-retardant ABS shell (meeting UL94 V-0 standard) to resist workshop dust and oil pollution; supports a wide temperature range of -20℃ to 70℃, adapting to low temperatures in northern winter workshops and high temperatures in southern summer workshops; has anti-vibration performance (stable operation at a vibration frequency of 5-500Hz) to cope with continuous vibration during heavy machinery operation; low power consumption (operating power ≤150mW) adapts to the long-term continuous operation needs of industrial equipment and reduces energy consumption costs.

In summary, with 1024x768 HD display, industrial-grade touch durability and stable RGB interface transmission, this 9.7-inch industrial-grade touch screen adapts to complex industrial scenarios, providing a reliable and efficient touch display solution for industrial control and testing equipment.

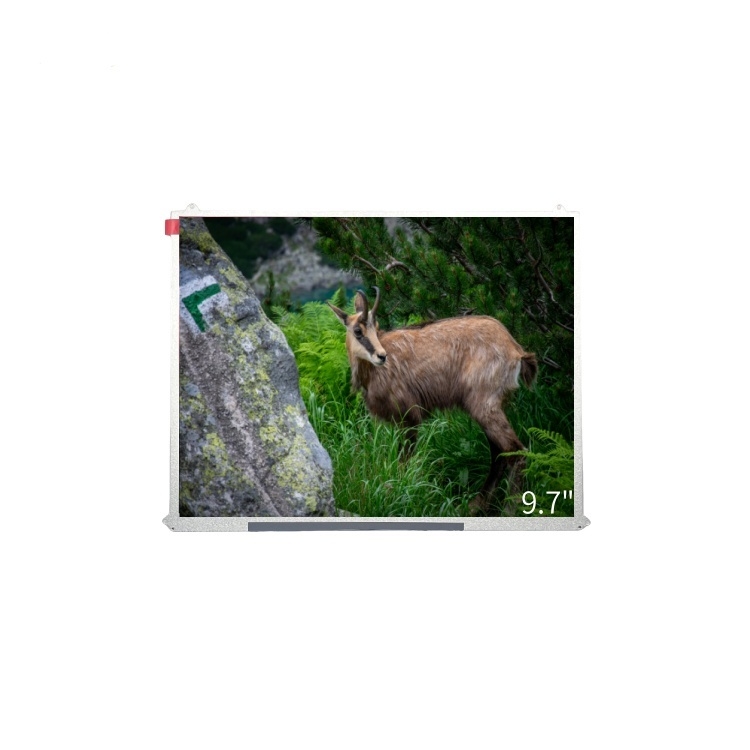

1024x768 Industrial Touchscreen Panel 50 PIN RGB Displays 9.7 Inch 0

1024x768 Industrial Touchscreen Panel 50 PIN RGB Displays 9.7 Inch 1
