500nits IPS LCD Display 9 Inch LVDS Display 1024x600 Resolution

Name: 500nits IPS LCD Display 9 Inch LVDS Display 1024x600 Resolution
Brand: Shenzhen Richarmony Technology Co., Ltd.
SKU: RHY090
Price: 19.89 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: RHY090

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: US $ 19.89

Packaging Details: 26.7*17.7*5.6(cm)

Delivery Time: 31-35 work days

Payment Terms: T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              500nits IPS LCD Display, IPS LCD Display 9 Inch, LVDS Display 1024x600


Name:	IPS LCD Display	LCD Size:	9" TFT
Outline Dimension:	210.7126.55.1 Mm	Display Area:	196.608*114.15 Mm
Number Of Pixel:	1024*600	Brightness:	500 Cd/㎡
Interface:	40 PIN LVDS	Viewing Angle:	IPS Full Angle

Name:	IPS LCD Display
LCD Size:	9" TFT
Outline Dimension:	210.7126.55.1 Mm
Display Area:	196.608*114.15 Mm
Number Of Pixel:	1024*600
Brightness:	500 Cd/㎡
Interface:	40 PIN LVDS
Viewing Angle:	IPS Full Angle

Description

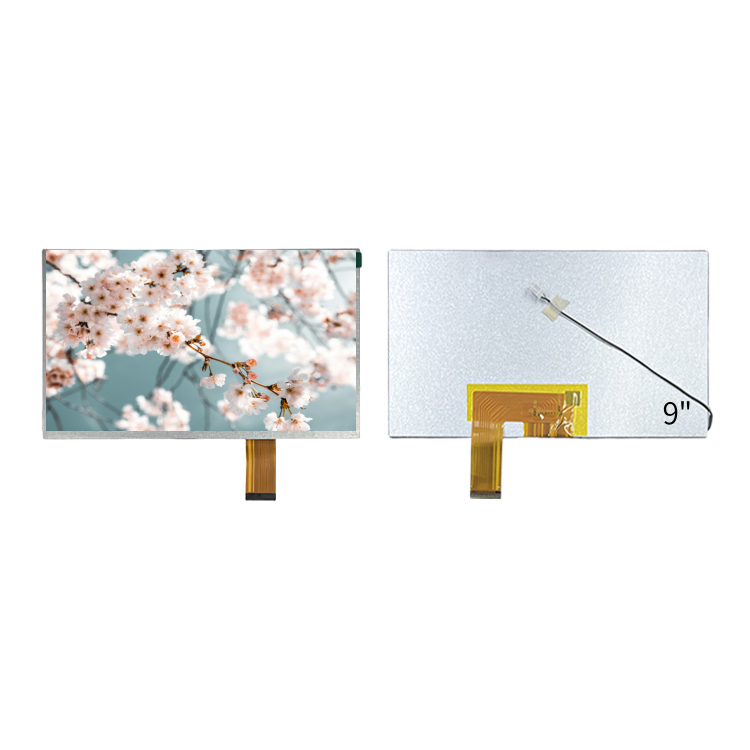

500nits IPS LCD Display 9 Inch LVDS Display 1024x600 Resolution

9-Inch IPS TFT LCD Module 1024x600 Resolution 500nits With LVDSInterface

LCD size	9" TFT
Outline Dimension	210.7126.55.1 mm
Display area	196.608*114.15 mm
Number of Pixel	1024*600
Brightness	500 cd/㎡
Interface	40 PIN LVDS
Viewing Angle	IPS Full Angle
Operating Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

Product Overview

This high-performance 9-inch IPS LCD module features an LVDS interface with 1024*600 resolution and 500 nits brightness. Engineered for demanding environments, it delivers wide viewing angles, exceptional color accuracy, and sharp image quality with reliable signal transmission.

500nits IPS LCD Display 9 Inch LVDS Display 1024x600 Resolution 0

500nits IPS LCD Display 9 Inch LVDS Display 1024x600 Resolution 1

Key Features

9-inch IPS TFT LCD with 1024*600 resolution
High brightness 500 nits display for excellent visibility
40-pin LVDS interface for stable signal transmission
IPS technology provides wide viewing angles
Robust operating temperature range (-20°C to 70°C)

Typical Applications

Ideal for vehicle-mounted systems, industrial control equipment, outdoor terminals, and other applications requiring high-visibility displays in challenging environments.
